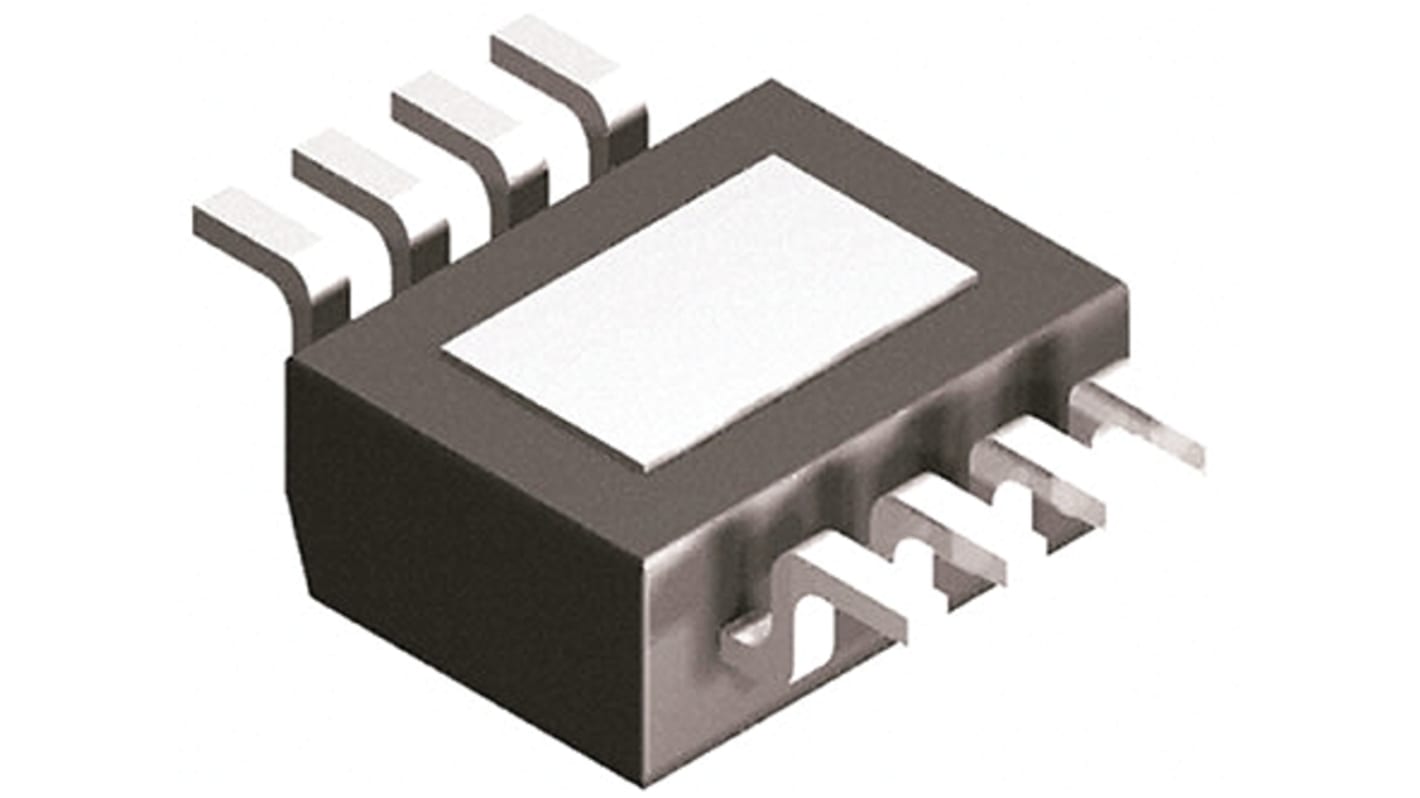

STMicroelectronics ST1S14PHR, 1-Channel, Step Down DC-DC Switching Regulator, Adjustable 8-Pin, HSOP
- RS Stock No.:
- 103-2155
- Mfr. Part No.:
- ST1S14PHR
- Manufacturer:
- STMicroelectronics
2500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 2500)
MYR8.427
| Units | Per Unit | Per Reel* |
| 2500 + | MYR8.427 | MYR21,067.50 |
| *price indicative | ||
- RS Stock No.:
- 103-2155
- Mfr. Part No.:
- ST1S14PHR
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
DC-DC Switching Converters, Step-Down Regulators, STMicroelectronics
ST’s monolithic switching regulators offer high input-voltage capability, and deliver output currents up to 4A, with high switching frequency.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Switching Voltage Regulators, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Minimum Output Voltage | 1.22 V |
| Minimum Input Voltage | 5.5 V |
| Maximum Input Voltage | 48 V |
| Maximum Output Current | 3A |
| Converter Type | Step Down |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 1000 kHz |
| Mounting Type | Surface Mount |
| Package Type | HSOP |
| Pin Count | 8 |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Length | 5mm |
| Height | 1.6mm |
| Width | 4mm |
| Dimensions | 5 x 4 x 1.6mm |
| Switching Regulator | Yes |
