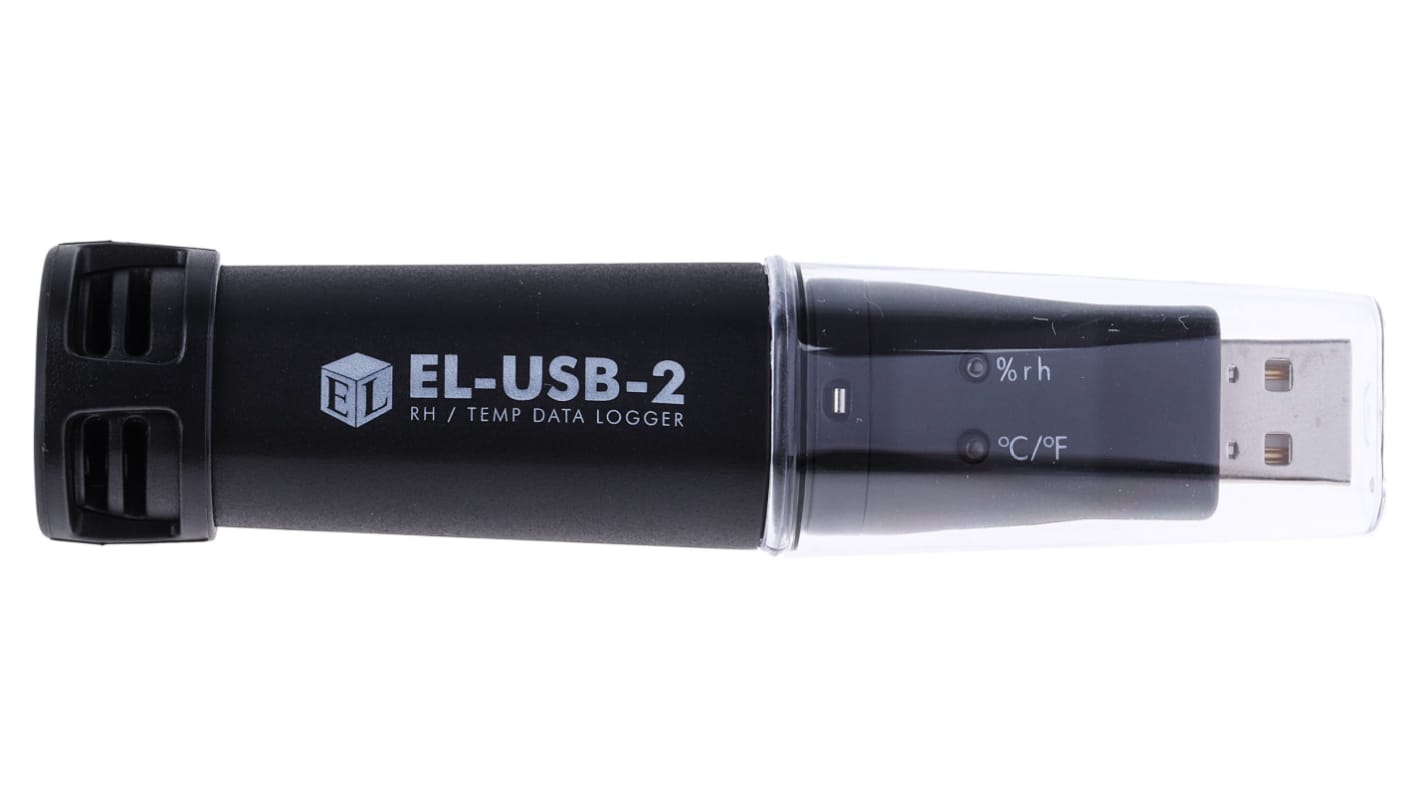

Lascar EL-USB-2 Temperature & Humidity Data Logger, USB
- RS Stock No.:
- 490-1064
- Mfr. Part No.:
- EL-USB-2
- Manufacturer:
- Lascar
18 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
329 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR471.48
| Units | Per Unit |
| 1 + | MYR471.48 |
- RS Stock No.:
- 490-1064
- Mfr. Part No.:
- EL-USB-2
- Manufacturer:
- Lascar
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details
LascarTemperature, Humidity and Dew Point Data Logger
The Lascar EL-USB-2 USB standalone data logger measures and stores over 16,000 temperature and humidity readings between -35°C and 80°C (-31°F to 176°F). It has 0% to 100% RH range at a resolution of 0.5°C (1°F) and 0.5% RH. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.
Software
Set-up and data download from EasyLog data loggers are enabled by the EL-WIN-USB software available here: https://www. EasyLog USB. Com
Supplied with
1/2 AA battery and wall mount clip
Software
Set-up and data download from EasyLog data loggers are enabled by the EL-WIN-USB software available here: https://www. EasyLog USB. Com
Supplied with
1/2 AA battery and wall mount clip
Features and Benefits
The measurement ranges between -35°C and 80°C (-31°F and 176°F)
Temperature measurement accuracy is ±0.5°C
Humidity measurement accuracy is ±2.25%RH
Logging rates range between 10 seconds and 12 hours
Immediate and delayed logging start
User programmable alarm thresholds for both, temperature and humidity
Status indication via red/green LEDs
Battery life is up to 3 years
Supplied with a 1/2AA lithium metal battery
Export to Excel functionality
Temperature measurement accuracy is ±0.5°C
Humidity measurement accuracy is ±2.25%RH
Logging rates range between 10 seconds and 12 hours
Immediate and delayed logging start
User programmable alarm thresholds for both, temperature and humidity
Status indication via red/green LEDs
Battery life is up to 3 years
Supplied with a 1/2AA lithium metal battery
Export to Excel functionality
Applications
Facilities management
Housing and business premises
Outside environmental data
Agriculture and animal welfare
Veterinary
Museums and exhibitions
Housing and business premises
Outside environmental data
Agriculture and animal welfare
Veterinary
Museums and exhibitions
Certifications
IP67 Rated
Specifications
Attribute | Value |
|---|---|
| Model Number | EL-USB-2 |
| Number of Input Channels | 1 |
| Sensor Type | Humidity, Temperature |
| Measurement Parameters | Humidity, Temperature, Dew Point |
| Interface Type | USB |
| Data Logger Type | Temperature & Humidity |
| Maximum Temperature Measurement | +80 °C |
| Power Source | Battery |
| Best Temperature Measurement Accuracy | ± 0.55 °C |
| IP Rating | IP67 |
| Minimum Operating Temperature | -35°C |
| Maximum Operating Temperature | +80°C |
| Battery Type | 1/2 AA |
| Battery Life | 3 yr |
| Includes | Battery |
| Model Number p | EL-USB-2 |
| Best Humidity Measurement Accuracy | ± 2.25 %RH |
| Temperature Measurement Resolution | 0.5°C |
| Maximum Humidity Measurement | 100%RH |
| Humidity Measurement Resolution | 0.5%RH |
| Number of Readings Per Channel | 16382 |
| Alarm | Yes |
