Tinytag TV-4500 Humidity, Temperature Data Logger, Serial, USB, Battery Powered, LCD Display, IP65

  • RS Stock No. 283-921
  • Mfr. Part No. TV-4500
  • Manufacturer Gemini
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

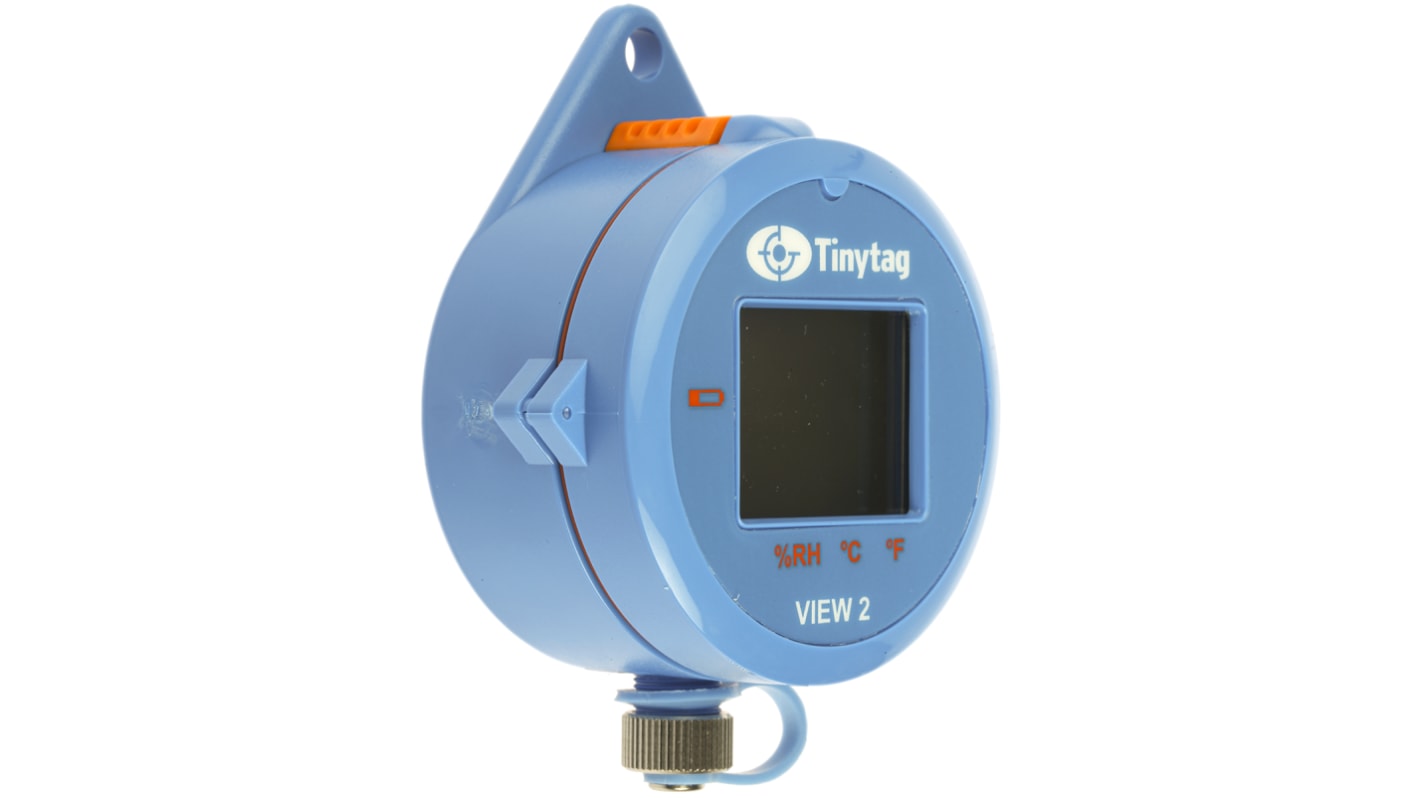

Tinytag View 2 Data Logger With LCD Display

Tinytag View 2 loggers are equipped with an LCD display to provide instant indication of temperature, humidity and alarm conditions. The loggers are made with food grade materials and are ideal for use in food processing, retail, fridges and chill cabinet applications.

LCD display
30000 reading capacity, 30000 for single channel, 2 x 15000 for dual channel
Made with food grade materials
User-programmable logging interval 1 sec to 10 days
2 user-programmable alarms
Delayed and trigger start (reed relay) options
3 stop options stop when full, wrap around and stop after N readings
Fast data offload via serial or USB cable to a PC
Use with Tinytag Explorer
User-replaceable battery with up to 2 years life
IP65 splash proof case
User-replaceable battery

Supplied with

1/2 AA Lithium battery.

Gemini Data Logger

The Gemini Tinytag View 2 is 2-channel a self-contained temperature and relative humidity data logger. This unit features a coated RH sensor that has good resistance to moisture and condensation, ensuring measurement reliability in applications where a visual display of temperature and humidity is required in addition to data logging.

Features and Benefits

• The LCD of current readings
• Number of readings per channel is 30000
• High accuracy
• High reading resolution
• Fast data offload
• Splash-proof case
• Low battery monitor
• User-replaceable battery
• Operating temperature ranges between -25°C and 70°C with 0 to 100% RH measurement range

Applications

• Environmental Monitoring
• Pharmaceutical storage
• Document and archive monitoring

Certifications

• IP65 rated
• CE certified

Specifications
Attribute Value
Measurement Parameters Humidity, Temperature
Sensor Type Capacitive, NTC
Number of Input Channels 2
Interface Type Serial, USB
Maximum Temperature Measurement +50 °C
Power Source Battery
Best Temperature Measurement Accuracy ±0.4 °C
IP Rating IP65
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C
Display Type LCD
Battery Type 1/2 AA
Number of Readings Per Channel 30000
Battery Life 2 yr
Maximum Humidity Measurement 100%RH
Temperature Measurement Resolution 0.02°C
Includes Battery
Dimensions 90 x 65 x 35mm
Humidity Measurement Resolution 0.1%RH
Best Humidity Measurement Accuracy ±3 %RH
Alarm Yes
17 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,242.11
units
Per unit
1 +
MYR1,242.11
