Keysight Technologies U2751A USB Data Acquisition

Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
Product Details

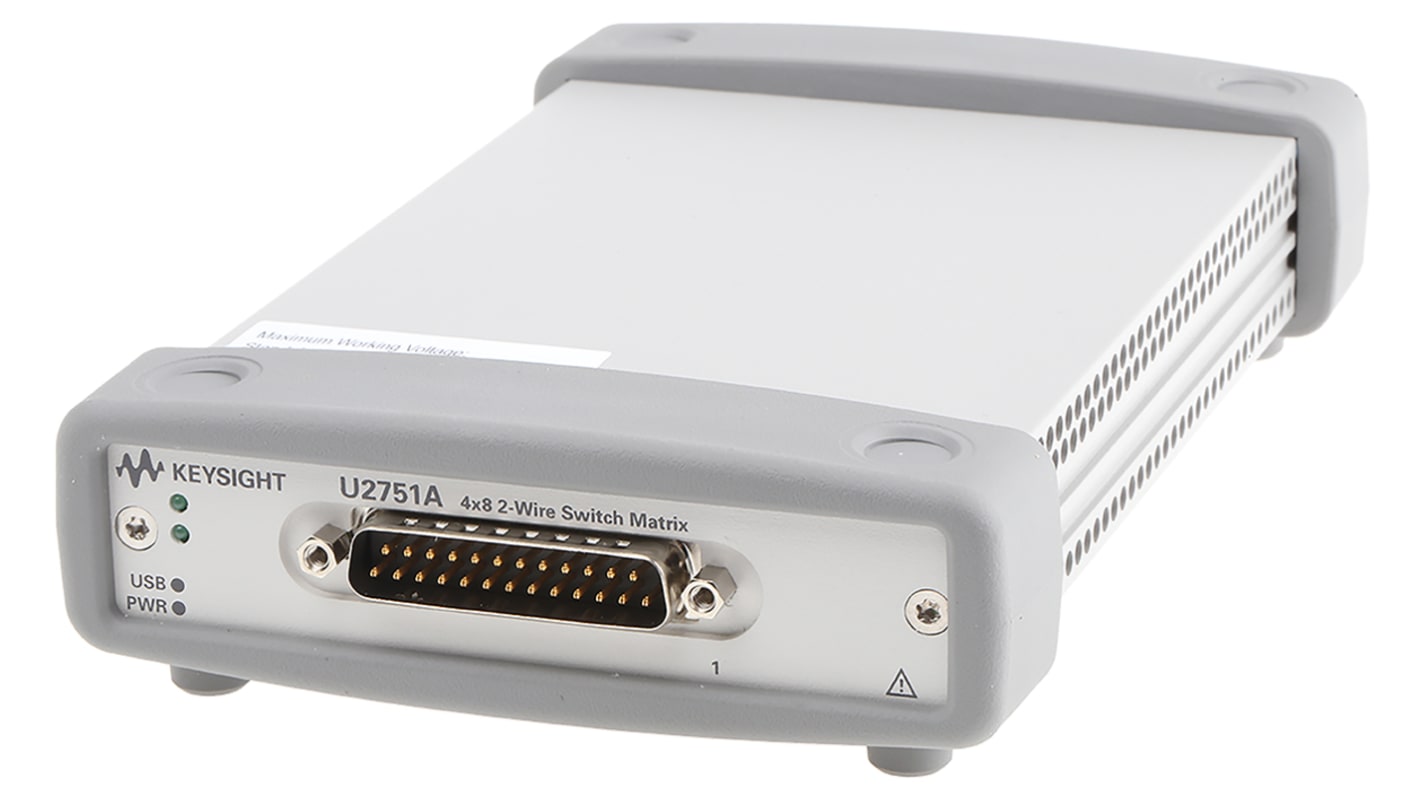

U2751A 4x8 2-wire USB Modular Switch Matrix

Switch matrix offers flexible connection path between device under test and test equipment, enabling different instruments to be connected to multiple points on the device under test at the same time. Can support measurements at high bandwidth up to 45MHz. Uses common non-proprietary standard high-speed USB 2.0 interface that provides ease of connectivity, allowing users to set up and configure tests quickly with the plug and play feature.

4x8 2-wire matrix configuration
Maximum 30V/2A
-30dB crosstalk and <-3dB insertion loss at 45MHz operation
4ms maximum switching time
DB25 connector
High speed USB 2.0, USBTMC-USB488 standard
Standalone and modular capabilities
Relay cycle counter

Keysight USB Data Acquisition (DAQ)

The Keysight USB Data Acquisition (DAQ) family offers the choice and flexibility to create standalone or modular solutions that expand and evolve according to test requirements.

Specifications
Attribute Value
Number of Input Channels 32
Connectivity USB 2.0
Power Source Mains
Dimensions 183 x 120 x 44mm
Weight 480g
Height 44mm
Length 183mm
Model Number p U2751A
Width 120mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature +55°C
1 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 4,925.43
units
Per unit
1 +
MYR4,925.43
