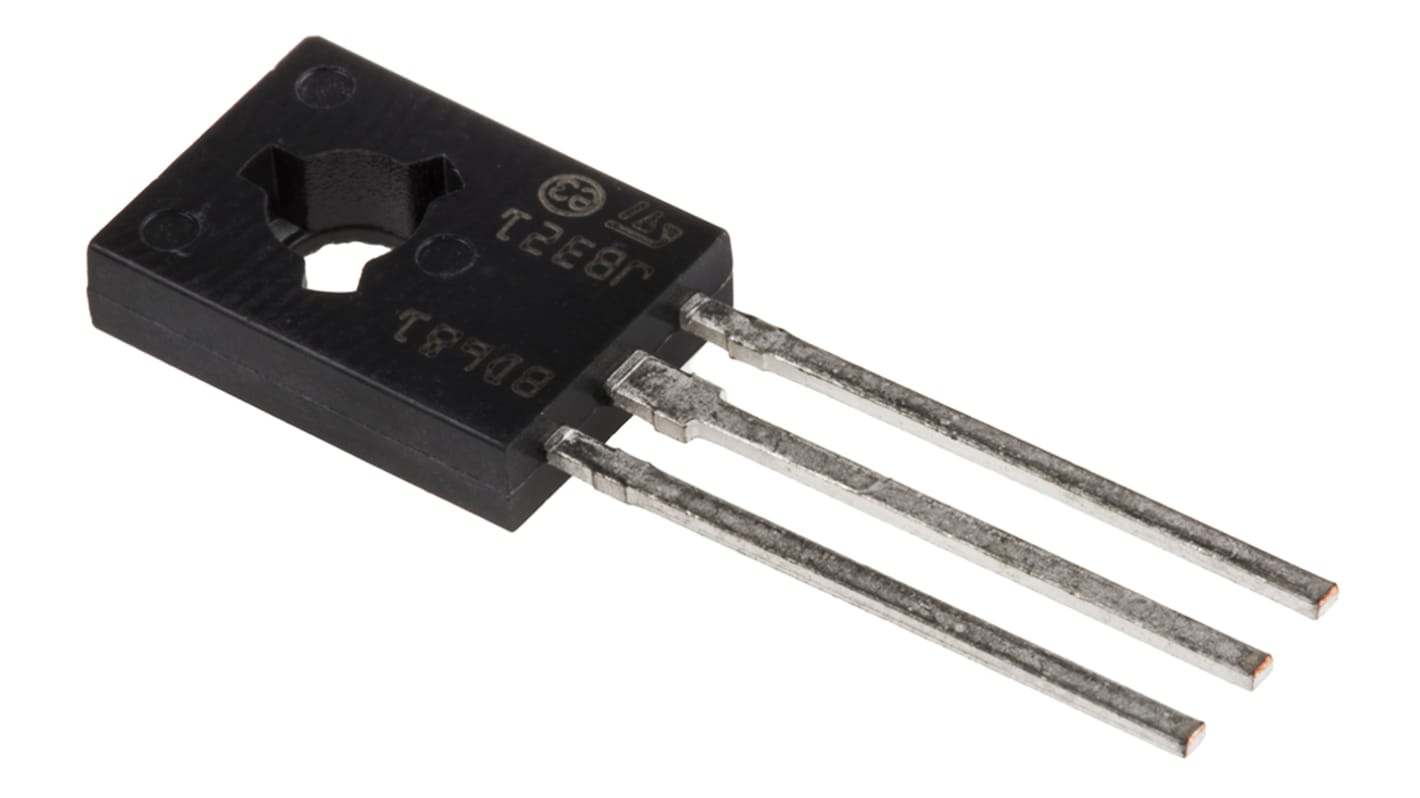

STMicroelectronics BD681 NPN Darlington Transistor, 4 A 100 V HFE:750, 3-Pin SOT-32
- RS Stock No.:
- 102-4093
- Mfr. Part No.:
- BD681
- Manufacturer:
- STMicroelectronics
300 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 50)
MYR3.971
| Units | Per Unit | Per Tube* |
| 50 - 50 | MYR3.971 | MYR198.55 |
| 100 - 150 | MYR3.91 | MYR195.50 |
| 200 + | MYR3.833 | MYR191.65 |
| *price indicative | ||
- RS Stock No.:
- 102-4093
- Mfr. Part No.:
- BD681
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
NPN Darlington Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 4 A |
| Maximum Collector Emitter Voltage | 100 V |
| Maximum Emitter Base Voltage | 5 V |
| Package Type | SOT-32 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 750 |
| Maximum Collector Base Voltage | 100 V |
| Maximum Collector Emitter Saturation Voltage | 2.5 V |
| Maximum Collector Cut-off Current | 0.2mA |
| Dimensions | 7.8 x 2.7 x 10.8mm |
| Minimum Operating Temperature | -65 °C |
| Width | 2.7mm |
| Maximum Operating Temperature | +150 °C |
| Length | 7.8mm |
| Height | 10.8mm |
