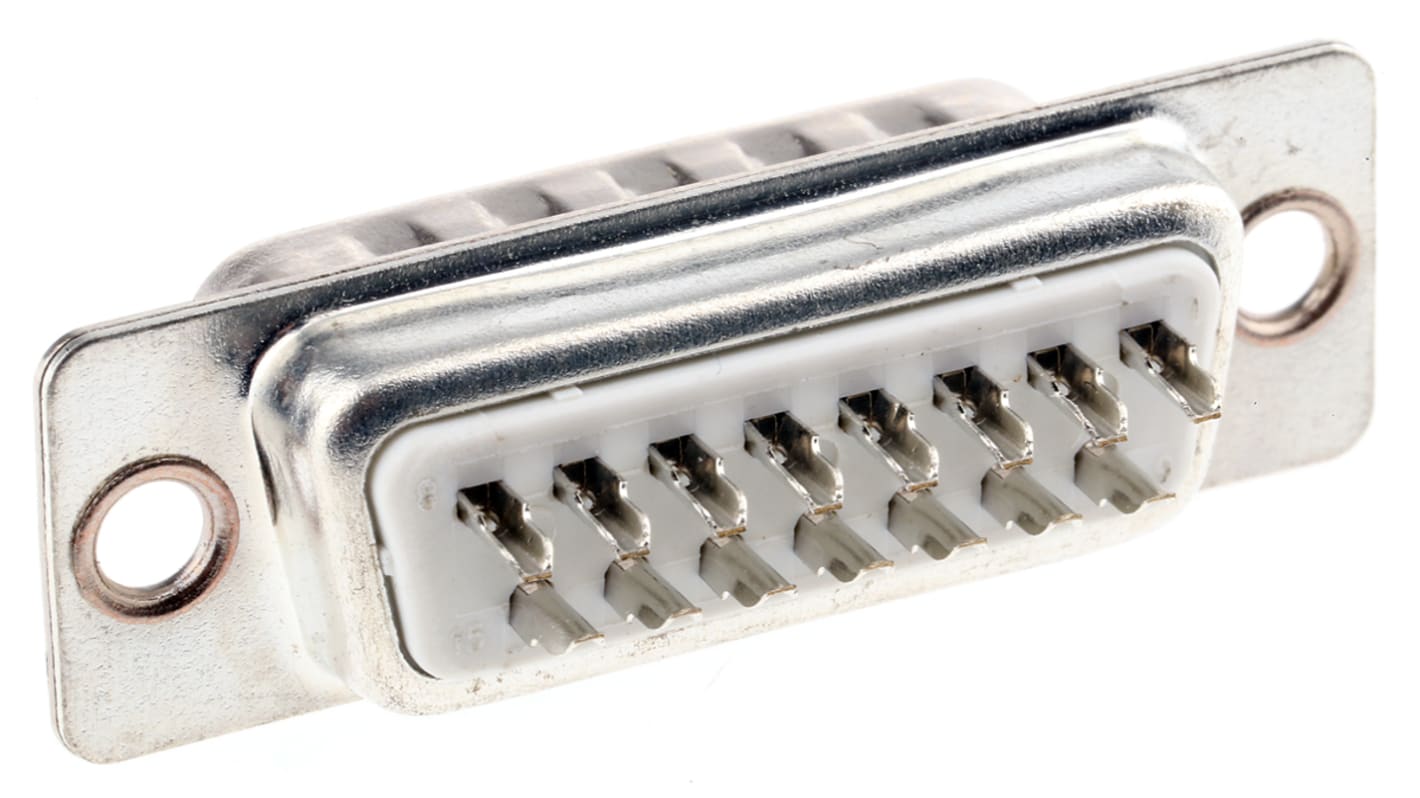

Wurth Elektronik 618 15 Way Cable Mount D-sub Connector Plug, 2.77mm Pitch
- RS Stock No.:
- 771-8266
- Mfr. Part No.:
- 61801524823
- Manufacturer:
- Wurth Elektronik
57 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
336 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR9.76
You pay
MYR9.27
| Units | Per Unit |
| 1 - 12 | MYR9.27 |
| 13 - 24 | MYR9.10 |
| 25 + | MYR8.93 |
- RS Stock No.:
- 771-8266
- Mfr. Part No.:
- 61801524823
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
Product Details
WR-DSUB Solder Bucket D-Sub Connectors
WR-DSUB series cable mounting D-sub plug and socket connectors with 3.10 diameter mounting holes and solder bucket style contacts. These d-sub solder bucket plug and socket connectors have a white UL94-V0 PBT insulator with a steel tin plated shell. The contacts for these WR-DSUB series d-sub cable connectors are made from copper alloy with a selective gold plating.
Note
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Wurth - D-Sub Connectors
A range of Wurth D-Sub connectors.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 15 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.77 mm, 2.84mm |
| D Connector Type | Standard D-Sub |
| D-Sub Shell Size | A |
| Termination Method | Solder |
| Current Rating | 3A |
| Housing Material | Steel |
| Voltage Rating | 125 V ac |
| Length | 39.14mm |
| Width | 12.5mm |
| Depth | 10.9mm |
| Contact Material | Copper Alloy |
| Series | 618 |
| Dimensions | 39.14 x 12.5 x 10.9mm |
| Contact Plating | Gold |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40.0°C |
