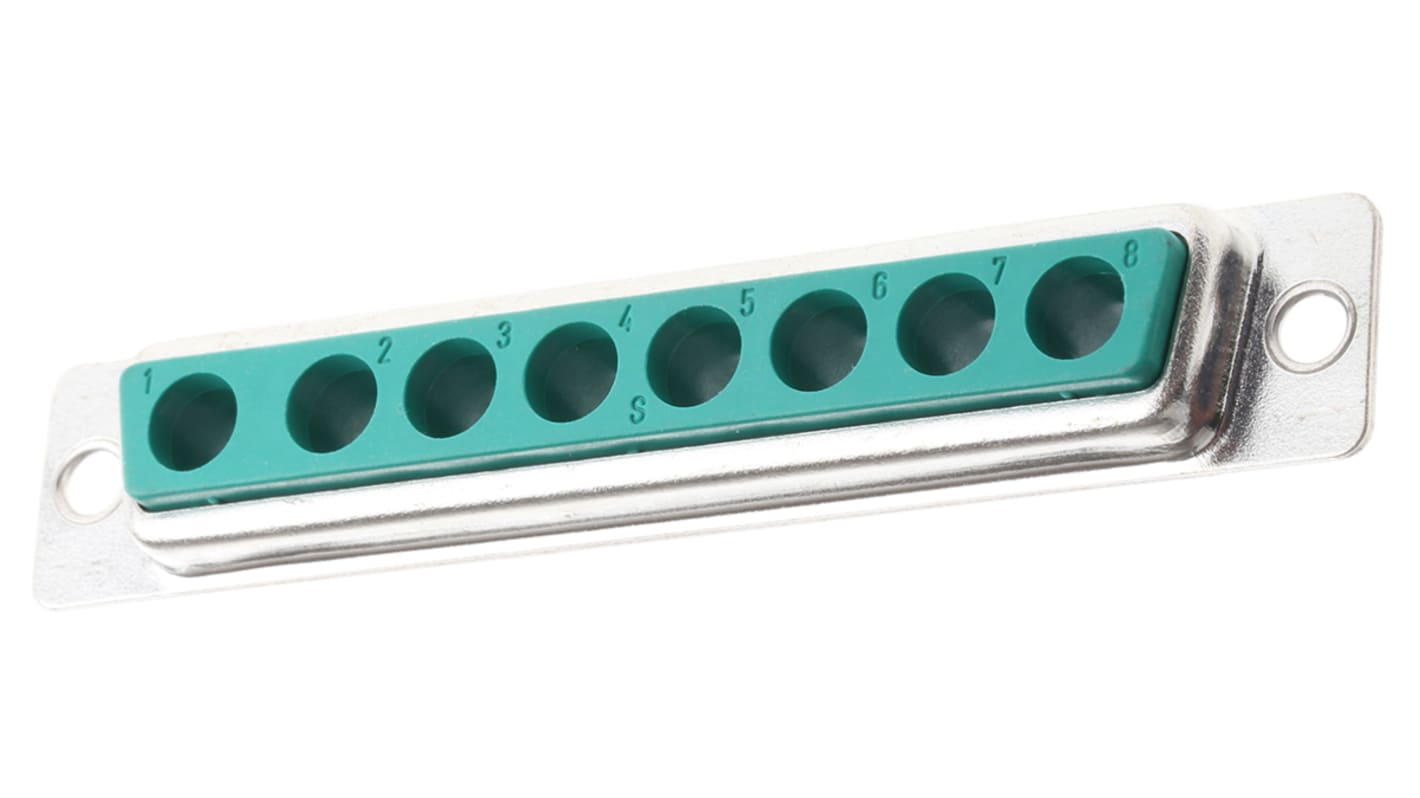

FCT from Molex FM 8 Way Panel Mount D-sub Connector Socket
- RS Stock No.:
- 485-013
- Mfr. Part No.:
- FM8W8S-K121 / 1727040038
- Manufacturer:
- FCT from Molex
33 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
319 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR26.35
| Units | Per Unit |
| 1 - 24 | MYR26.35 |
| 25 - 99 | MYR25.79 |
| 100 - 499 | MYR25.00 |
| 500 + | MYR24.38 |
- RS Stock No.:
- 485-013
- Mfr. Part No.:
- FM8W8S-K121 / 1727040038
- Manufacturer:
- FCT from Molex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Plug and Socket Shells
Signal contacts with solder bucket terminations
Cavities for power/coaxial contacts (available separately)
Cavities for power/coaxial contacts (available separately)
Note
Panel mounting dimensions are as the equivalent standard ’D’ connector shell size.
Mixed Contact 'D'
Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 8 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| D Connector Type | Mixed Contact D-Sub |
| D-Sub Shell Size | C |
| Termination Method | Solder |
| Mixed Contact Layout | 8W8 |
| Housing Material | Steel |
| Length | 69.3mm |
| Width | 12.5mm |
| Contact Material | Copper Alloy |
| Series | FM |
| Contact Plating | Gold over Nickel |
| Minimum Operating Temperature | -55°C |
