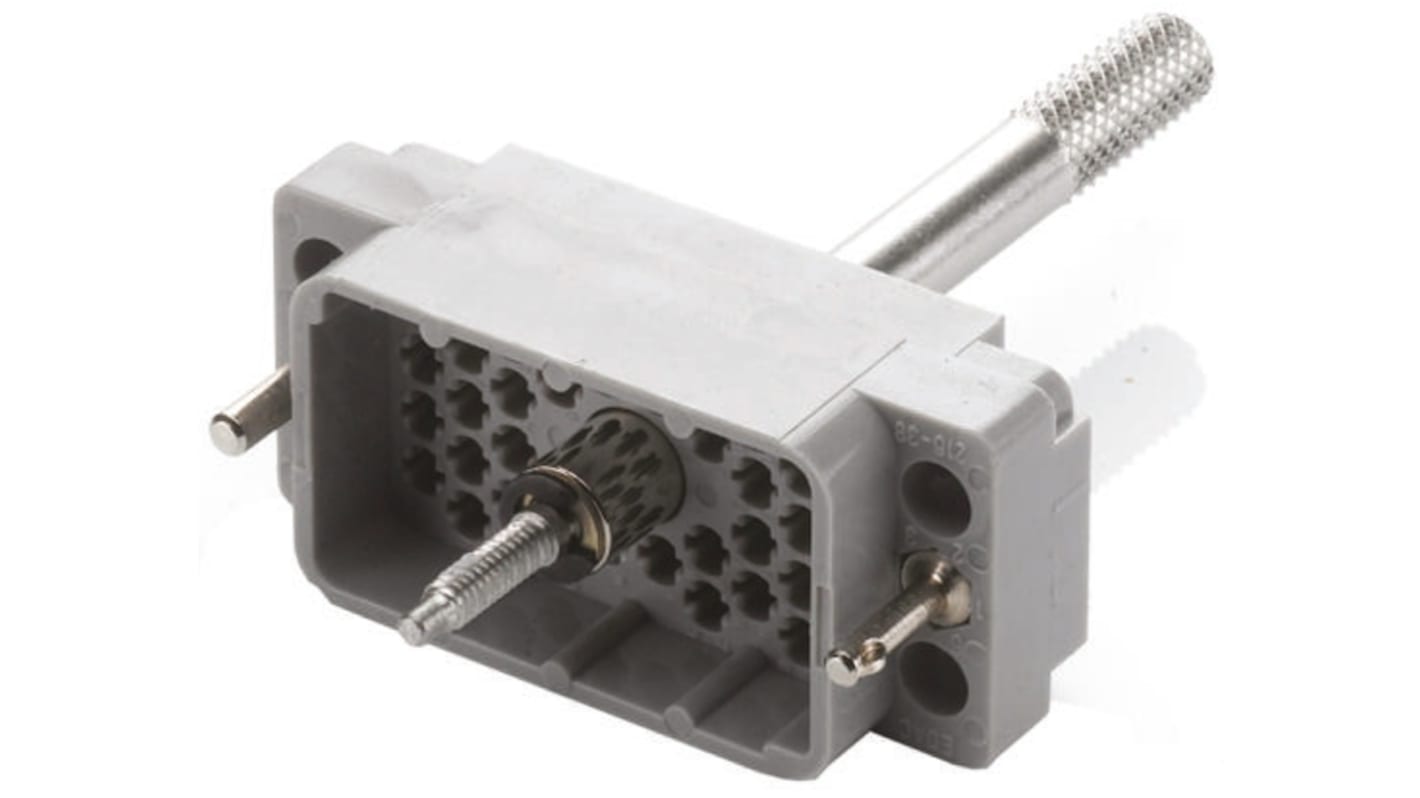

EDAC 516 Series, 38 Way Heavy Duty Power Connector Plug

  • RS Stock No. 476-413
  • Mfr. Part No. 516-038-000-301
  • Manufacturer EDAC
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Rack and Panel Plug Connector Housing, with Guide Pin

From EDAC, the cable mounting rack and panel connector housing incorporates an actuating screw to facilitate connection with a corresponding receptacle.

Crimp, solder and wire wrap contacts are available for this connector housing, and are sold separately.

EDAC Heavy Duty Power Connector Plug

The EDAC 516 series rectangular 38-way connector plug has crimp pin termination type. This male plug is suitable for applications where safety and high reliability are required. It has a hermaphroditic metal-to-metal contact design. The plugs or receptacles of this high-density system can form either the fixed or free half of the connector, providing designers with great flexibility. It has 38 contacts, which are made of phosphor bronze gold plating. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control and test systems. The housing is made of polycarbonate material. Crimp, solder and wire wrap contacts are available for this connector housing and are sold separately.

Features and Benefits

• Contacts fit plug and socket
• Current rating is 8.5A
• Insulating resistance is 5000mOhm
• Operating temperature ranges between -65°C and 105°C
• Secure connection guaranteed

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• UL rated

EDAC 516 Range

This extensive range of 8.5A multipole connectors is suitable for use in a wide range of applications where safety and/or ultra-reliability is required. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control & test systems. These connectors are suitable wherever a multi-pin cable to panel or cable to cable connection is required. The plugs or receptacles of this high density system can form either the fixed or free half of the connector, providing designers with great flexibility.

Guaranteed secure connection
Hermaphroditic metal to metal contact design
Polarized mouldings and metal locators
Crimp, solder or wire wrap contacts
Contacts fit plug and socket

Specifications
Attribute Value
Number of Contacts 38
Gender Male
Body Orientation Straight
Current Rating 8.5A
Length 50.8mm
Width 22.25mm
Depth 80.95mm
Dimensions 50.8 x 22.25 x 80.95mm
Series 516
Contact Material Phosphor Bronze
Contact Plating Gold
Maximum Operating Temperature +105°C
Minimum Operating Temperature -65°C
Stock check temporarily unavailable - call for stock availability
Price Each
MYR 55.26
units
Per unit
1 - 14
MYR55.26
15 - 49
MYR54.28
50 - 99
MYR53.27
100 +
MYR52.26
