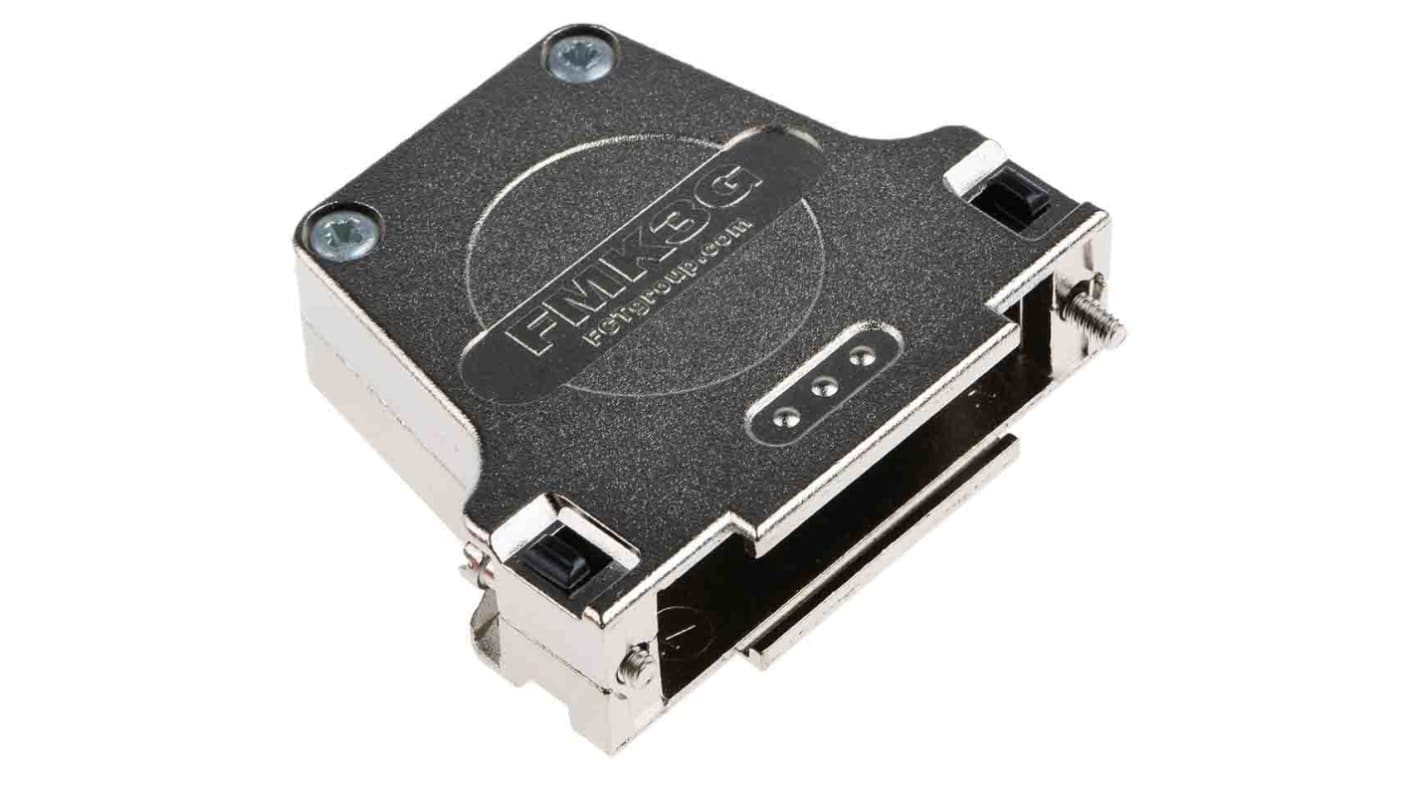

FCT from Molex FMK Series Die Cast Zinc D Sub Backshell, 25 Way, Strain Relief

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

Large internal space, particularly suitable for D-sub connectors with special contacts
Suitable for heavy-duty use
Cable outlet with strain-relief
Can be used with engagement hooks or locking or knurled screws
Easy assembly thanks to catch spring system and pre-assembled locking screws

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Stock no. 291-6288 is supplied without anti-kink feature

UL E168813

This FCT backshell from Molex is a metal hood designed to provide high-quality protection for your D-subminiature (D-sub) connection. Its die-cast zinc material shields your connection from electromagnetic (EMI) and radio frequency interference (RFI) so the signal remains clear and uninterrupted. The hood is simple to install – simply tighten the backshell in place using the pre-mounted locking screws for a secure and reliable connection. As the backshell includes a strain relief for your cables, you can rely on it to reduce wear and prevent damage at the cable ends.

• Large inner chamber for use with D-sub connectors with special contacts
• Corrosion-resistant nickel plating to prevent buildups of rust
• Rubber bushing for effective cable insulation to prevent electrical hazards
• Accommodates a range of cable diameters for increased versatility
• Straight orientation for simple routing and organisation of cables

• Networking and communications
• Medical equipment
• Industrial automation

Thanks to its broad operating temperature range of -35°C to +100°C, this hood is suitable for use in environments subject to extreme temperatures.
