Schneider Electric METSECT Series Tropicalise Current Transformer, 800A Input, 800:5, 5 A Output, 40mm Bore
- RS Stock No.:
- 198-4509
- Mfr. Part No.:
- METSECT5MD080
- Manufacturer:
- Schneider Electric
- RS Stock No.:
- 198-4509
- Mfr. Part No.:
- METSECT5MD080
- Manufacturer:
- Schneider Electric
Technical data sheets
Legislation and Compliance
Product Details

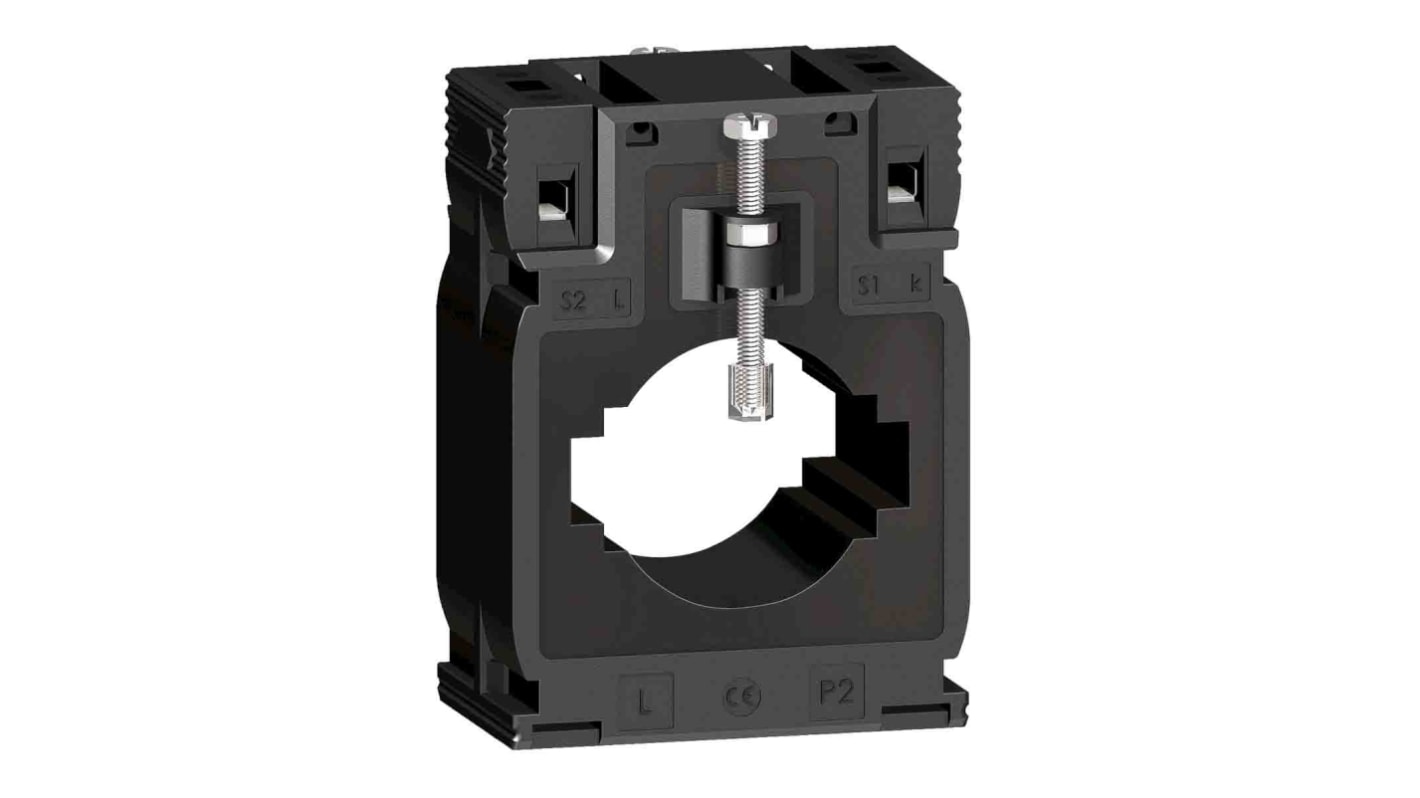

Schneider Electric METSECT5MD080 is a current transformer which is tropicalized for bus bar mount having an accuracy Class 0.5 at 8 V ac and Class 1 at 12 V ac This current transformer has Class B electrical insulation class and comes with seal. Comes with an Insulated locking screw mounting mode and a bus bar for support. Schneider ElectricMETSECT5MD080 meets various environmental and other standards such as VDE 0414 and IEC 61869-2. This particular transformer 0.511kg and offers Green Premium product sustainable status.
Wide ratio range 800/5
Tropicalized for cable
5A secondary current
DIN Rail mounting
IP20 protection
Tropicalized for cable
5A secondary current
DIN Rail mounting
IP20 protection
Specifications
Attribute | Value |
---|---|
Current Ratio | 800:5 |
Bore Size | 40mm |
Transformer Type | Tropicalise |
Input Current | 800A |
Output Current | 5 A |
Overall Height | 95mm |
Overall Width | 70mm |
Overall Depth | 65mm |
Minimum Temperature | -25°C |
Maximum Temperature | +60°C |
Better World Verification | Green Premium |
Series | METSECT |
Mounting Type | DIN Rail |
Better World Product | Yes |
