Chauvin Arnoux B102 Current Clamp, AC Adapter, 400A ac AC Max, Current Output
- RS Stock No.:
- 799-9005
- Mfr. Part No.:
- P01120083
- Manufacturer:
- Chauvin Arnoux
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR7,207.66
| Units | Per Unit |
| 1 + | MYR7,207.66 |
- RS Stock No.:
- 799-9005
- Mfr. Part No.:
- P01120083
- Manufacturer:
- Chauvin Arnoux
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details

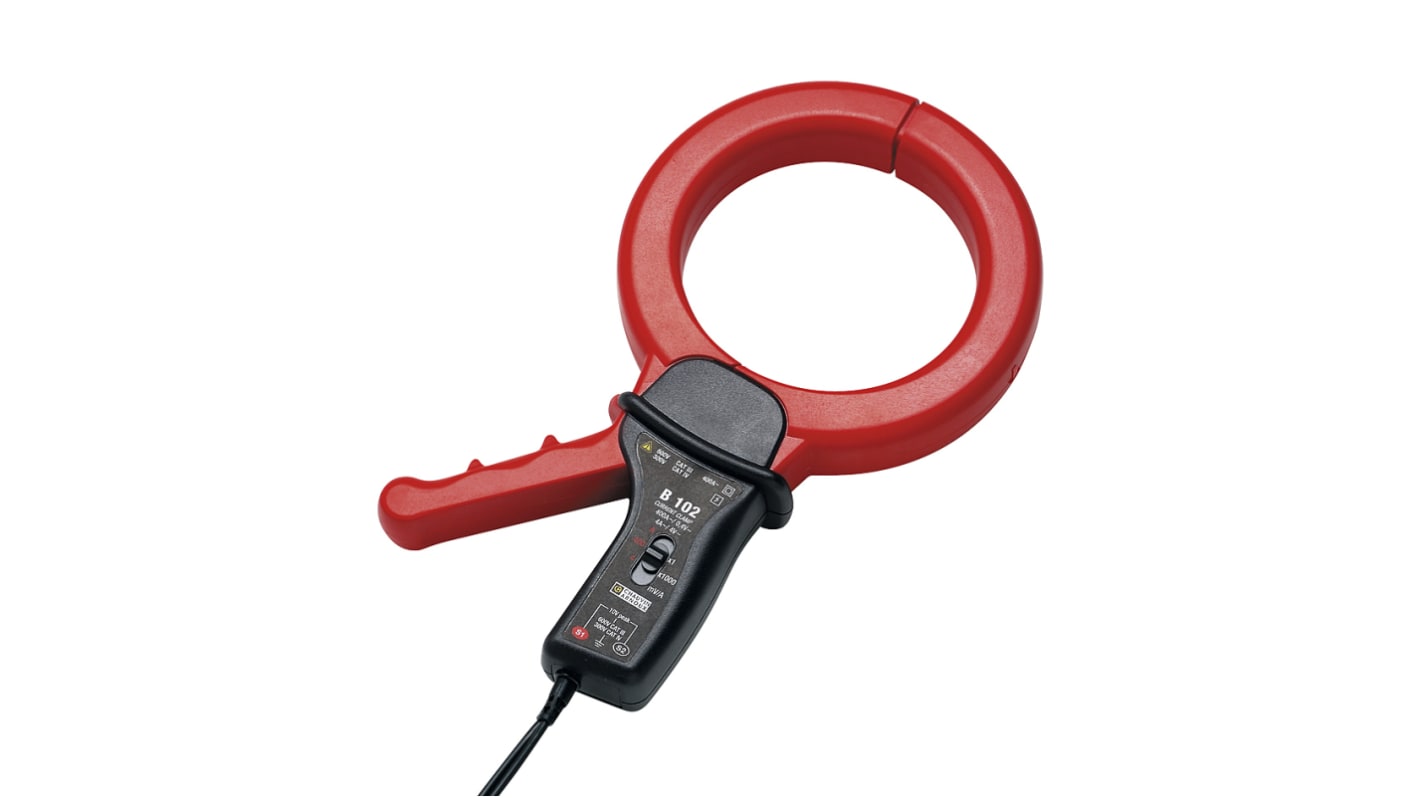

B102 Leakage Current Clamp
The B102 current clamp is designed for measuring leakage current diverted towards the earth. It enables the fault to be located or anticipated without disconnecting the equipment linked. The current clamp is specially designed to detect low fault currents on power circuits.
The measurements can be made on any type of installation: single-phase, 3 or 4 wire threephase, balanced or not, with the neutral grounded earth or impedant
Differential or leakage current, from 500 μA
Current up to 400 A max
2 measurement ranges: 4 A AC / 400 A AC
Bandwidth: 48 Hz to 1000 Hz
Output: 1.5 m cord with double insulation having male safety plugs 4mm in diameter
Differential or leakage current, from 500 μA
Current up to 400 A max
2 measurement ranges: 4 A AC / 400 A AC
Bandwidth: 48 Hz to 1000 Hz
Output: 1.5 m cord with double insulation having male safety plugs 4mm in diameter
Specifications
Attribute | Value |
|---|---|
| Adapter Type | AC |
| Maximum AC Current | 400A ac |
| Best Accuracy | ≤ 0.35 % |
| Maximum Conductor Size | 115mm |
| Safety Category | CAT III 600 V, CAT IV 300V |
| Output Type | Current |
| Connector Type | 4 mm Plug |
| Cable Length Extended | 1.5m |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -10°C |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 300 V, 600V |
| Model Number p | B102 |
