QANTEK 5MHz Crystal ±20ppm HC-49/U-S SMD 2-Pin 11.4 x 4.8 x 4.4mm

RS Stock No.:: 173-4317
Mfr. Part No.:: QCS5.00000F18B23R
Manufacturer:: QANTEK

QANTEK 5MHz Crystal ±20ppm HC-49/U-S SMD 2-Pin 11.4 x 4.8 x 4.4mm

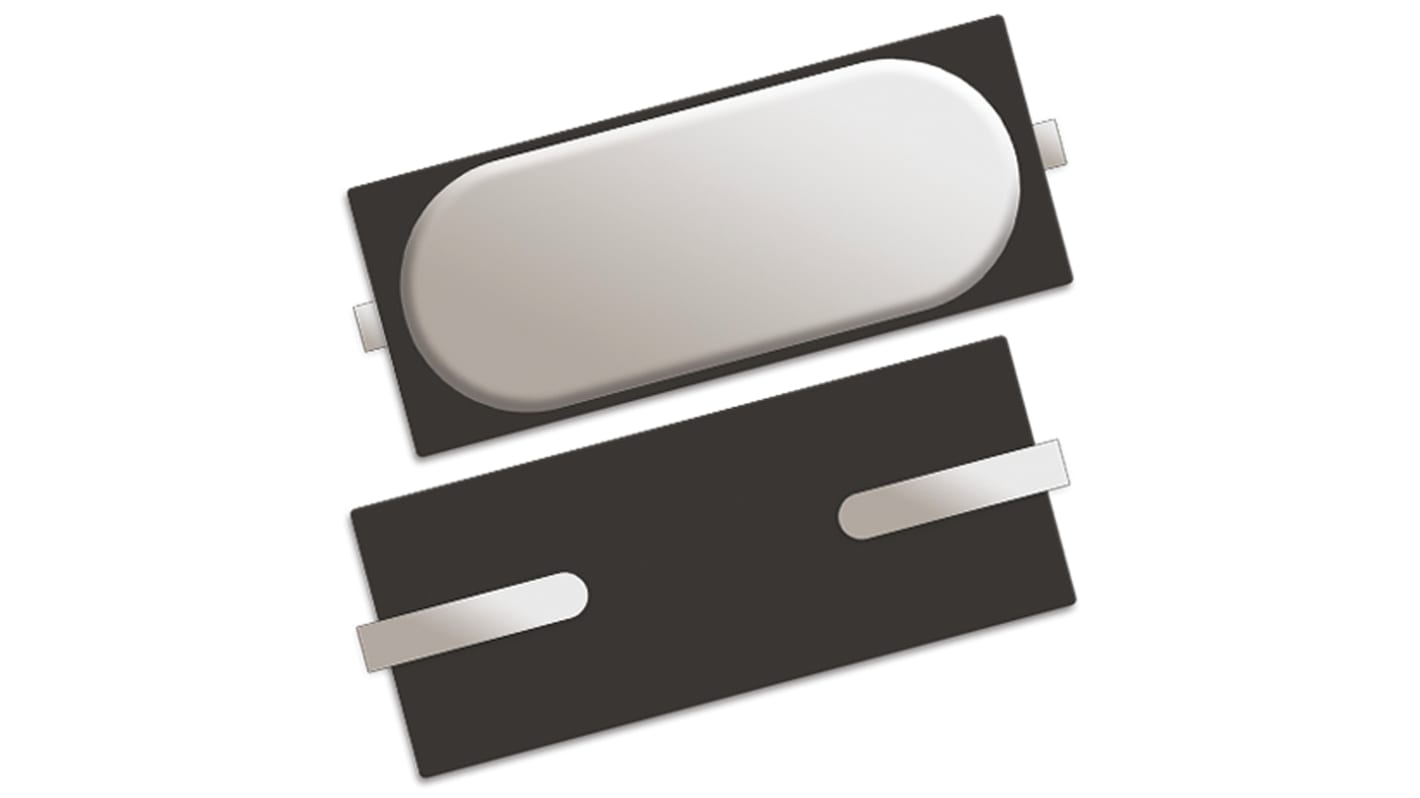

This image is representative of the product range

Temporarily out of stock - back order for despatch 29/07/2024, delivery within 4 working days from despatch date

Added

Price Each (On a Reel of 1000)

MYR1.339

Units	Per Unit	Per Reel*
1000 - 1000	MYR1.339	MYR1,339.00
2000 - 3000	MYR1.309	MYR1,309.00
4000 +	MYR1.285	MYR1,285.00
*price indicative

RS Stock No.:: 173-4317
Mfr. Part No.:: QCS5.00000F18B23R
Manufacturer:: QANTEK

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

QCS

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Crystals SMT Metal case

Specifications

Attribute	Value
Standard Frequency	5MHz
Mounting Type	Surface Mount
Load Capacitance	18pF
Package Type	HC-49/U-S SMD
Pin Count	2
Length	11.4mm
Width	4.8mm
Height	4.4mm
Dimensions	11.4 x 4.8 x 4.4mm
Frequency Tolerance	±20ppm
Frequency Stability	±30ppm
Series Resistance	120Ω
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
