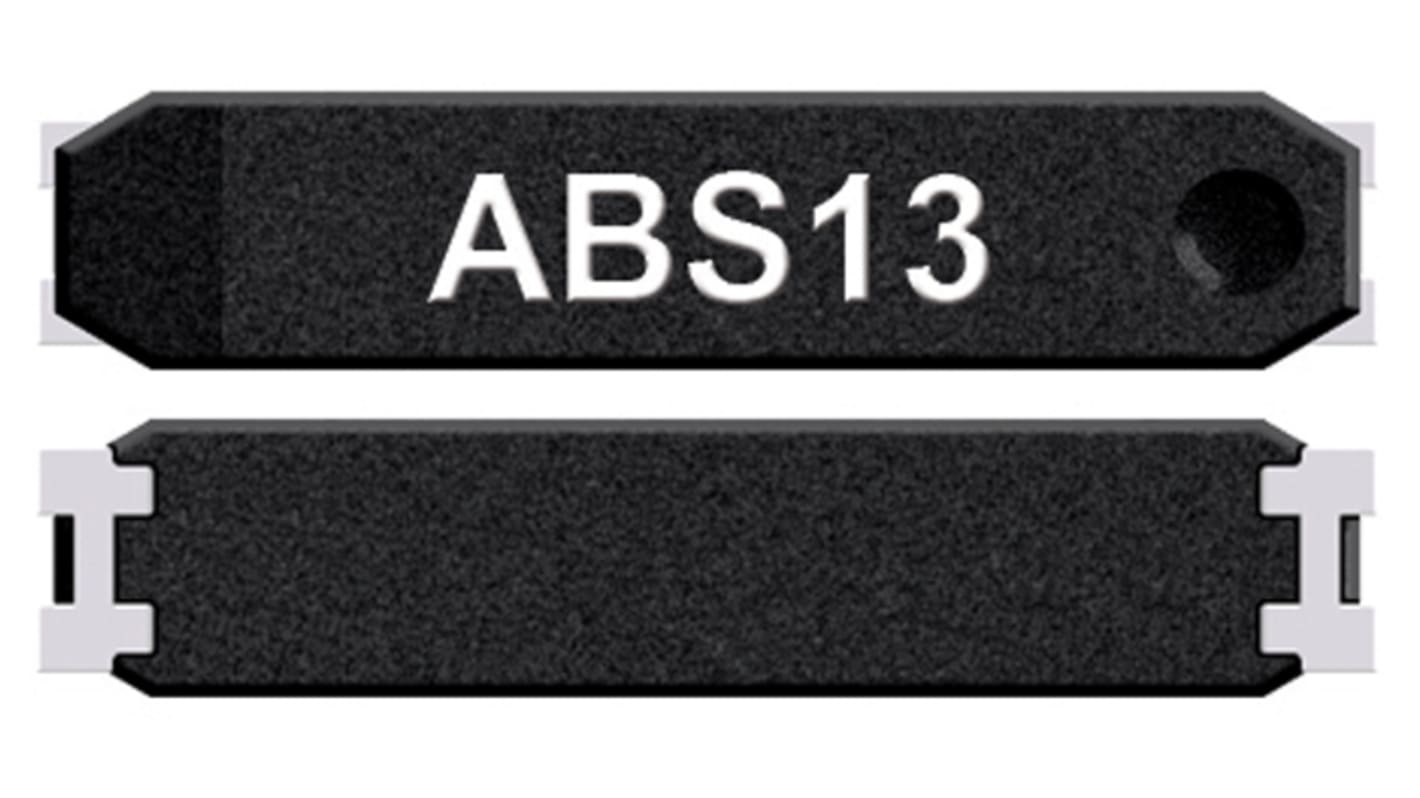

Abracon 32.768kHz Crystal Unit ±10ppm SMD 4-Pin 6.7 x 1.4 x 1.3mm
- RS Stock No.:
- 171-2313
- Mfr. Part No.:
- ABS13-32.768KHZ-T
- Manufacturer:
- Abracon
Available for back order.
Added
Price Each (On a Reel of 3000)
MYR2.766
| Units | Per Unit | Per Reel* |
| 3000 + | MYR2.766 | MYR8,298.00 |
| *price indicative | ||
- RS Stock No.:
- 171-2313
- Mfr. Part No.:
- ABS13-32.768KHZ-T
- Manufacturer:
- Abracon
Technical data sheets
Legislation and Compliance
Product Details
Extended temperature -40°C to +85°C for industrial applications
Plastic molded SMD
2.5mm height ideal for high density circuit boards
Wide range in communication & measuring equipment
Commercial & Industrial applications
Computer clock
Plastic molded SMD
2.5mm height ideal for high density circuit boards
Wide range in communication & measuring equipment
Commercial & Industrial applications
Computer clock
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12.5pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 6.7mm |
| Width | 1.4mm |
| Height | 1.3mm |
| Dimensions | 6.7 x 1.4 x 1.3mm |
| Frequency Tolerance | ±10ppm |
| Series Resistance | 65kΩ |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
