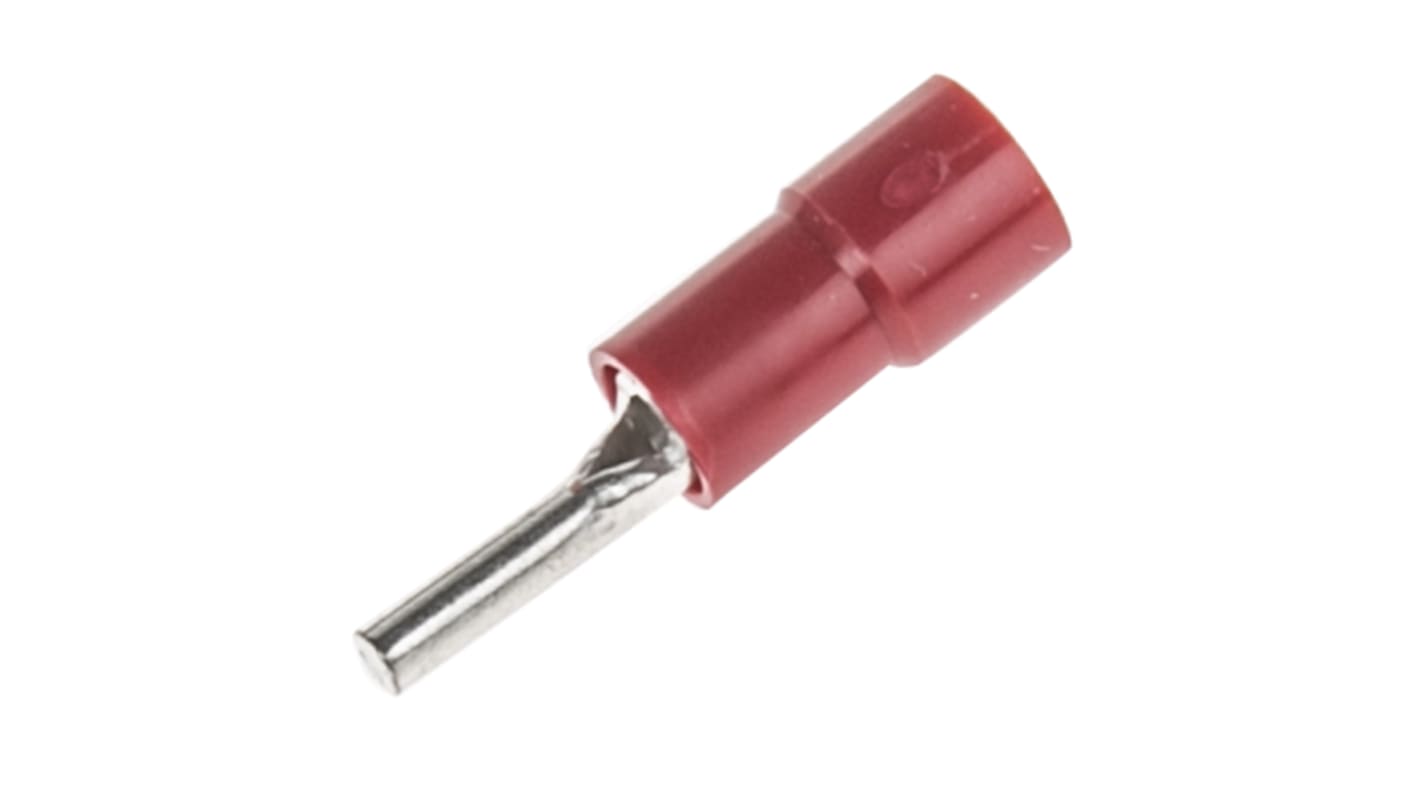

RS PRO Insulated, Tin Crimp Pin Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 1.9mm Pin Diameter, 9mm Pin Length, Red
- RS Stock No.:
- 613-9621
- Manufacturer:
- RS PRO
600 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
3700 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
Was MYR0.884
You pay
MYR0.739
| Units | Per Unit | Per Pack* |
| 100 - 400 | MYR0.739 | MYR73.90 |
| 500 - 2400 | MYR0.724 | MYR72.40 |
| 2500 - 4900 | MYR0.702 | MYR70.20 |
| 5000 - 24900 | MYR0.685 | MYR68.50 |
| 25000 + | MYR0.564 | MYR56.40 |
| *price indicative | ||
- RS Stock No.:
- 613-9621
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO Insulated, Tin Crimp Pin Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, 1.9 mm Pin Diameter, 9 mm Pin Length, Red
Need a quick and secure way to terminate electrical connections? Use this pin connector from RS PRO. It creates an air-tight crimp to prevent oxygen or moisture from getting through, protecting the metal interior against corrosion.
Thanks to its tin-plated copper contacts, this crimp blade ensures a reliable electrical connection. The vinyl insulation protects the connection against chemical and mechanical damage. You can also colour-code your wiring for ease of identification thanks to the red colour of the insulation.
You'll find this versatile connector used by electricians. It's suitable for a variety of applications as it can accommodate wires ranging in size from 22 to 16 AWG (American Wire Gauge).
Thanks to its tin-plated copper contacts, this crimp blade ensures a reliable electrical connection. The vinyl insulation protects the connection against chemical and mechanical damage. You can also colour-code your wiring for ease of identification thanks to the red colour of the insulation.
You'll find this versatile connector used by electricians. It's suitable for a variety of applications as it can accommodate wires ranging in size from 22 to 16 AWG (American Wire Gauge).
Features and Benefits
- Red colour
- Copper contact material
- Tin contact plating
- Insulated
- Vinyl insulation material
- Maximum wire size of 16 AWG (American Wire Gauge)
- Minimum wire size of 22 AWG (American Wire Gauge)
- Maximum wire size of 1.5 mm²
- Minimum wire size of 0.5 mm²
- Overall length of 19.8 mm
- Pin diameter of 1.9 mm
- Pin length of 9 mm
- Unshrouded
Small Pack Size
Per Unit, RS stock no: 613-9621
Large Pack Size
RS stock no: 270-7622
Approvals
UL (E125401)
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Overall Length | 19.8mm |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Shrouded/Unshrouded | Unshrouded |
| Pin Diameter | 1.9mm |
| Pin Length | 9mm |
| Colour | Red |
| Contact Plating | Tin |
| Contact Material | Copper |
