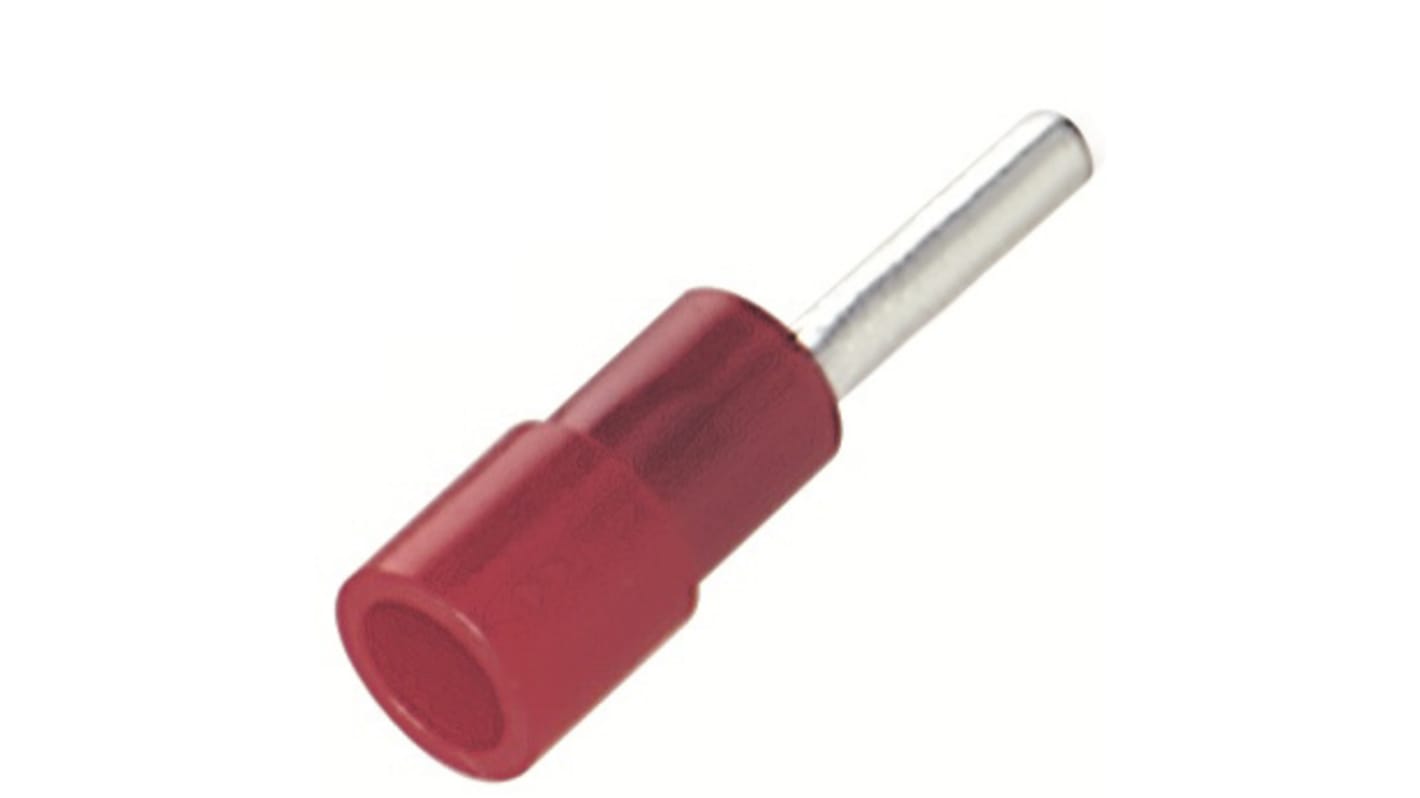

RS PRO Insulated Crimp Pin Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 1.9mm Pin Diameter, 12mm Pin Length, Red
- RS Stock No.:
- 178-8418
- Manufacturer:
- RS PRO
800 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2300 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 100)
MYR0.52
| Units | Per Unit | Per Bag* |
| 100 - 900 | MYR0.52 | MYR52.00 |
| 1000 - 1900 | MYR0.509 | MYR50.90 |
| 2000 - 4900 | MYR0.493 | MYR49.30 |
| 5000 - 24900 | MYR0.481 | MYR48.10 |
| 25000 + | MYR0.396 | MYR39.60 |
| *price indicative | ||
- RS Stock No.:
- 178-8418
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO PC-INSULATED PIN TERMINALS
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | PC |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Overall Length | 22.8mm |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Pin Diameter | 1.9mm |
| Pin Length | 12mm |
| Colour | Red |
| Contact Material | Copper |
