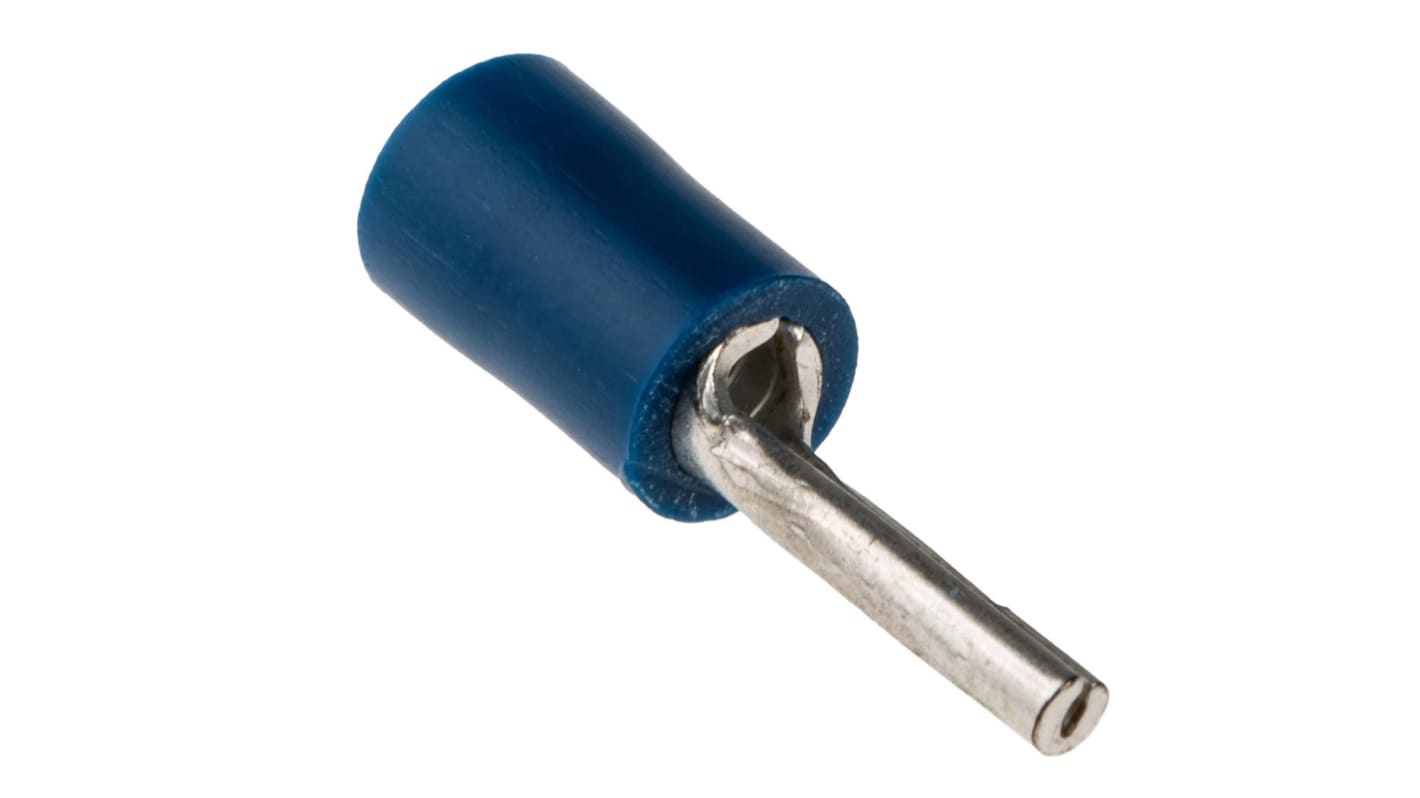

RS PRO Insulated, Tin Crimp Pin Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 1.9mm Pin Diameter, 12mm Pin Length, Blue
- RS Stock No.:
- 452-647
- Manufacturer:
- RS PRO
1300 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
20600 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
MYR0.851
| Units | Per Unit | Per Pack* |
| 100 - 400 | MYR0.851 | MYR85.10 |
| 500 - 2400 | MYR0.833 | MYR83.30 |
| 2500 - 4900 | MYR0.807 | MYR80.70 |
| 5000 - 24900 | MYR0.788 | MYR78.80 |
| 25000 + | MYR0.648 | MYR64.80 |
| *price indicative | ||
- RS Stock No.:
- 452-647
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO Insulated, Tin Crimp Pin Connector, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, 1.9 mm Pin Diameter, 12 mm Pin Length, Blue
This pin connector from RS PRO allows you to terminate stranded single-wire electrical connections safely and rapidly. The air-tight crimping keeps out any moisture or oxygen, providing complete protection against corrosion to the metal interior.
The crimp blade ensures a robust electrical connection thanks to the tin-plated copper contacts. The PVC (polyvinyl chloride) insulation on the connector end keeps it safe from mechanical and chemical damage. As the insulation is blue, it's simple to colour-code your wires for easy identification and organisation.
Thanks to its versatility and ease of use, this type of connector is commonly used by electricians. It's compatible with wires ranging in size from 16 to 14 AWG (American Wire Gauge), making it suitable for a variety of uses.
The crimp blade ensures a robust electrical connection thanks to the tin-plated copper contacts. The PVC (polyvinyl chloride) insulation on the connector end keeps it safe from mechanical and chemical damage. As the insulation is blue, it's simple to colour-code your wires for easy identification and organisation.
Thanks to its versatility and ease of use, this type of connector is commonly used by electricians. It's compatible with wires ranging in size from 16 to 14 AWG (American Wire Gauge), making it suitable for a variety of uses.
Features and Benefits
- Blue colour
- Copper contact material
- Tin contact plating
- Insulated
- PVC (polyvinyl chloride) insulation material
- Maximum wire size of 14 AWG (American Wire Gauge)
- Minimum wire size of 16 AWG (American Wire Gauge)
- Maximum wire size of 2.5 mm²
- Minimum wire size of 1.5 mm²
- Overall length of 22 mm
- Pin diameter of 1.9 mm
- Pin length of 12 mm
- Unshrouded
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | PVC |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Overall Length | 22mm |
| Minimum Wire Size AWG | 16AWG |
| Shrouded/Unshrouded | Unshrouded |
| Maximum Wire Size AWG | 14AWG |
| Pin Diameter | 1.9mm |
| Pin Length | 12mm |
| Colour | Blue |
| Contact Plating | Tin |
| Contact Material | Copper |
