Molex Board-In Series Male Crimp Terminal, 22AWG Min, 18AWG Max
- RS Stock No.:
- 720-6053
- Mfr. Part No.:
- 50098-8000
- Manufacturer:
- Molex
Stock check temporarily unavailable - call for stock availability
Added
Price Each (In a Pack of 100)
MYR0.607
| Units | Per Unit | Per Pack* |
| 100 - 1900 | MYR0.607 | MYR60.70 |
| 2000 - 3900 | MYR0.589 | MYR58.90 |
| 4000 + | MYR0.567 | MYR56.70 |
| *price indicative | ||
- RS Stock No.:
- 720-6053
- Mfr. Part No.:
- 50098-8000
- Manufacturer:
- Molex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

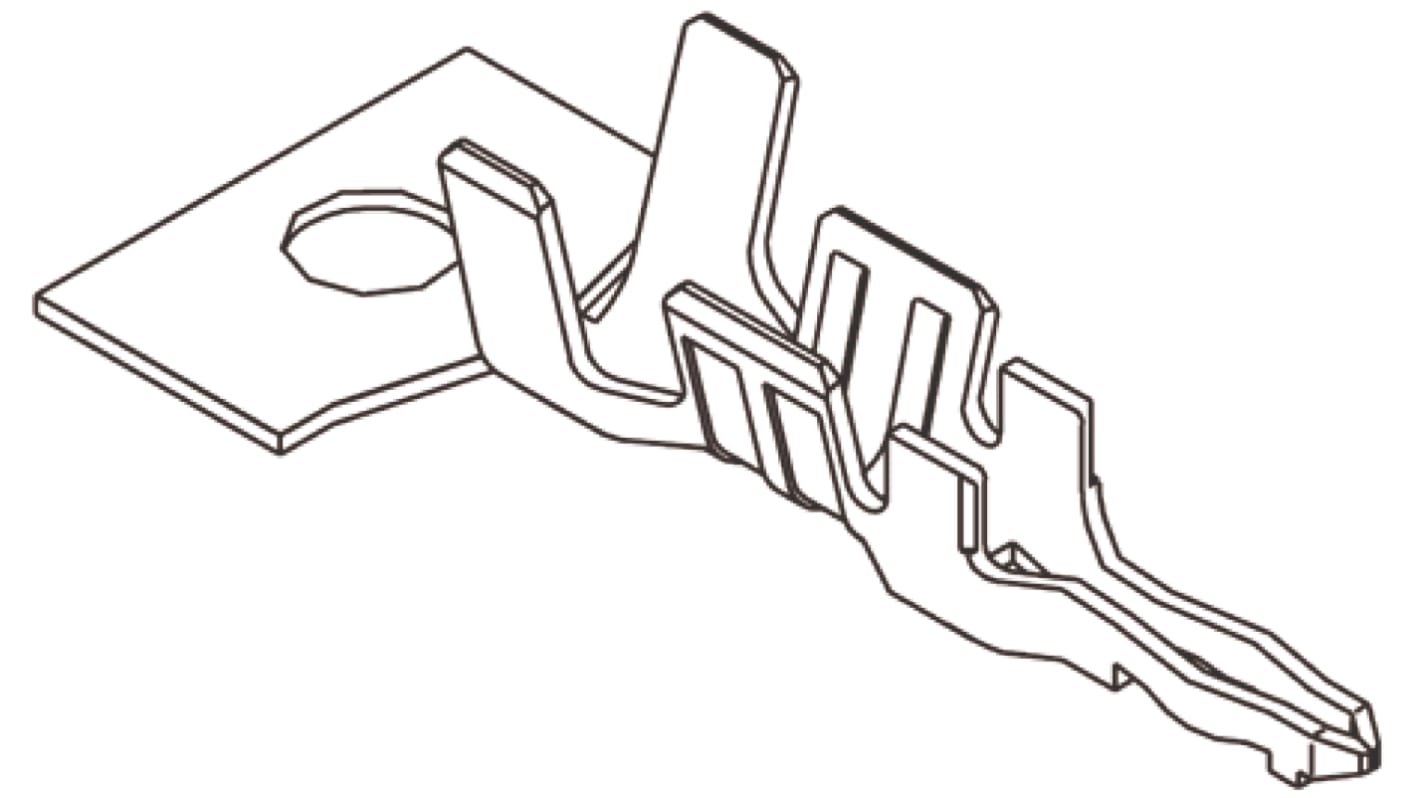

4mm Board-In Crimp Terminal - Series 50098
4mm board-in crimp terminal with housing lance for retention to housing and terminal protection. These board-in crimp terminals have a PCB guide ridge that helps to position the terminal onto the board. The electrical rating for these board-in crimp terminals as 250V max, 5.0A max.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
4.0mm Wire to Board - Molex
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| For Use With | 4 mm Board-In Connector Housing |
| Series | Board-In |
| Minimum Wire Size mm² | 0.35mm² |
| Termination Method | Crimp |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Contact Plating | Tin |
| Maximum Wire Size AWG | 18AWG |
| Contact Material | Phosphor Bronze |
| Series Number | 50098 |
| Maximum Contact Resistance | 5mΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
