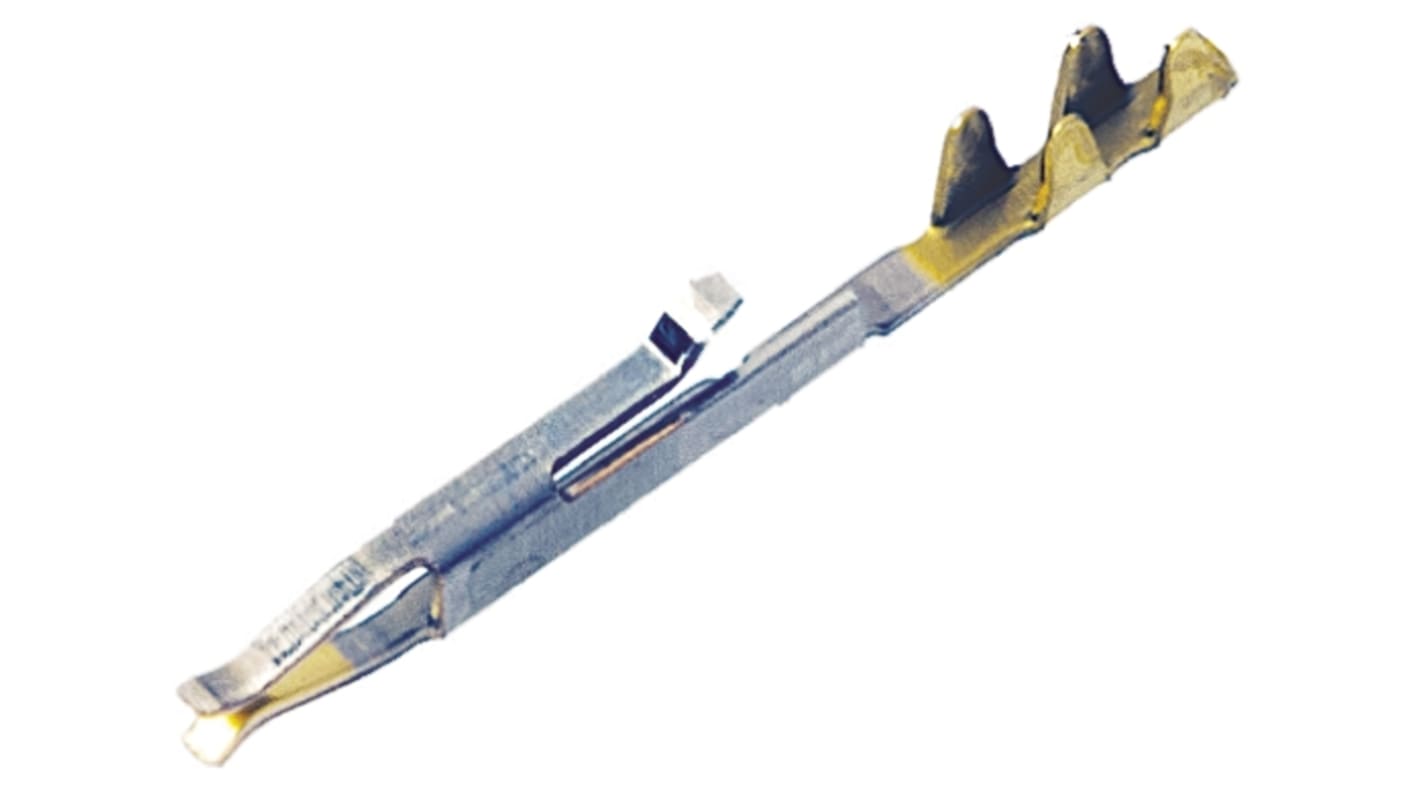

1-487547-1 TE Connectivity FFC Female Crimp Terminal Contact

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

FFC IDC Contacts

A FFC Cable-to-Board IDC Receptacle Contact for use in System 50 Receptacle Housings, see stock number 797-3283 . This IDC Receptacle Contact accepts 0.38 mm [.015 inch] square posts which are 3.18 - 8.89 mm [.125 - .350 inch] long.
The contact area is 0.76 μm [30 μinch] Gold plated and the crimp area Tin plated on this IDC Receptacle Contact.
FFC Cable comprised of 0.66 mm [.026 inch] wide by 0.08mm [.003 inch] copper conductors can be used with this IDC Receptacle Contact.

TE Connectivity AMPMODU System 50 Interconnection System

AMPMODU System 50 Interconnection System with a compact space saving design and high density 1.27 x 2.54 mm contact spacing for use in high density applications. The AMPMODU System 50 connector system consists of PCB headers, PCB receptacles and wire to board IDC ribbon cable connectors. These connectors are available in various configurations making the AMPMODU System 50 connector system suitable for a wide range of applications. The contacts of the AMPMODU System 50 connectors are made from high conductivity copper alloy with selective gold plating for high electrical performance and reliability.

Specifications
Attribute Value
Gender Female
For Use With FCC Connector Housing
Series FFC
Termination Method Crimp
Contact Plating Gold
Contact Material Phosphor Bronze
Maximum Contact Resistance 25mΩ
Minimum Operating Temperature -55°C
Maximum Operating Temperature +105°C
500 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 100)
MYR 0.487
units
Per unit
Per Pack*
100 - 2400
MYR0.487
MYR48.70
2500 - 7400
MYR0.468
MYR46.80
7500 - 19900
MYR0.451
MYR45.10
20000 - 39900
MYR0.436
MYR43.60
40000 +
MYR0.422
MYR42.20
*price indicative
Packaging Options:
