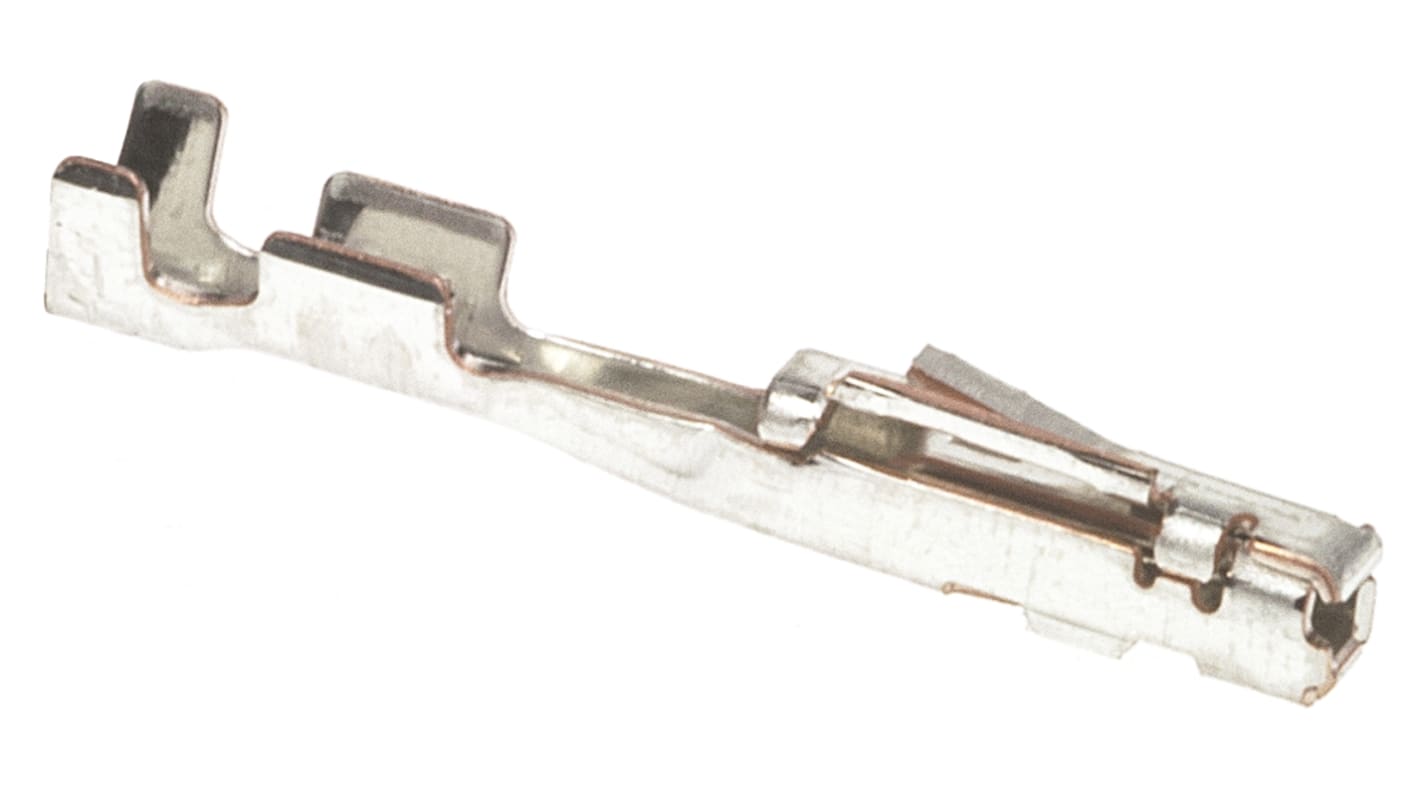

1123343-1 TE Connectivity 025 Female Crimp Terminal Contact 20AWG

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

MULTILOCK 040 & 070 Contacts & Tooling

These connectors manufactured from TE Connectivity offers a solid mechanical connection which is ideal for any cable connection. They are mostly used in automation industry. Our range offers both female and male socket type connection. You can choose from tin or gold contact plating.

Features of 040 Series:

Crimp terminating contacts
Snap-in fixing connector cavities

Features of 070 Series:

• Current rating: 15A
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 1 mΩ max (initial)
• Overall resistance: 10 mΩ max (final)
• Operating temperature: -30 to +105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities

This 1123343-1 part is made from copper and has tin plated finish.

• 070 Series
• Receptacle F-crimp
• 180° Receptacle style

TE Connectivity MULTILOCK Connectors and Contacts

This is a miniature high density connector system offering a wire to wire and wire to board I/O solution commonly used in the automotive industry but suitable for many varying signal transfer applications.

Snap in, crimp contacts for cable receptacles
Board mounting options are pre-loaded with male contacts
For wire to board connections utilise a cable and a board receptacle
Cable cap accepts female contacts, cable plug accepts male contacts
Cable cap mates cable plug to allow wire to wire connections
High density wiring connectors with 2.5mm contact centres

Specifications
Attribute Value
Gender Female
For Use With TH/.025 Connector Housing
Series 025
Minimum Wire Size mm² 0.2mm²
Termination Method Crimp
Maximum Wire Size mm² 0.5mm²
Contact Plating Tin
Minimum Wire Size AWG 24AWG
Maximum Wire Size AWG 20AWG
Contact Material Copper Alloy
33300 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 100)
MYR 0.529
units
Per unit
Per Pack*
100 - 900
MYR0.529
MYR52.90
1000 - 2900
MYR0.516
MYR51.60
3000 - 7400
MYR0.509
MYR50.90
7500 - 14900
MYR0.498
MYR49.80
15000 +
MYR0.486
MYR48.60
*price indicative
