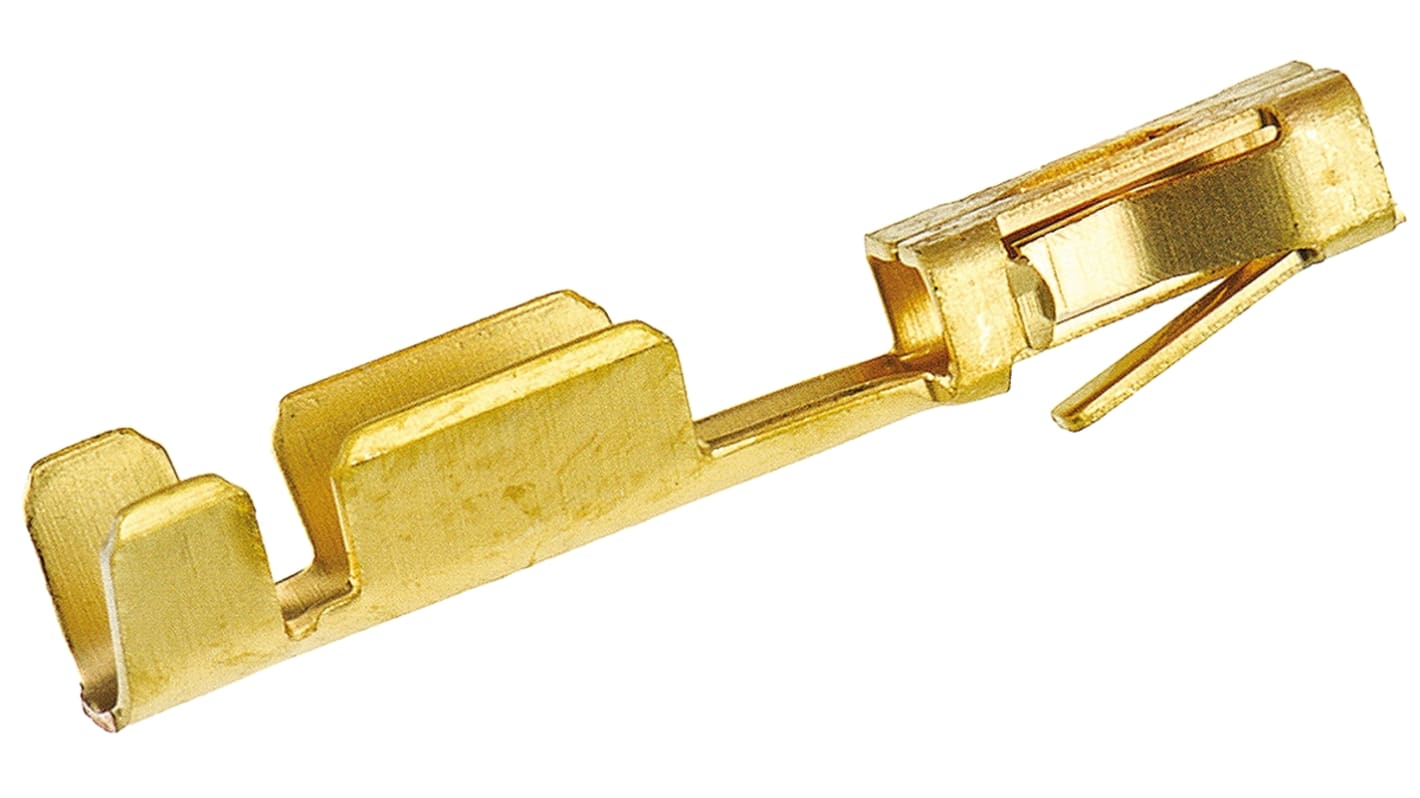

TE Connectivity, AMPMODU MOD V Female Crimp Terminal Contact 20AWG 1-87309-4

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Receptacle Crimp Contacts (Mod IV)

A range of Receptacle Crimp Contacts for use with Mod IV shells which mate with shrouded headers. This range includes Crimps are for 32-28 or 26-22 or 24-20 AWG wires, see Table for details.

2.54mm TE Connectivity AMPMODU™ Range – Style 2 (European)

A wide range of modular interconnects on the industry standard 2.54mm (0.1in ) Grid, addressing applications across all industry sectors. Designed for wire to board or board to board connection, including stacking.

Specifications
Attribute Value
Gender Female
For Use With AMPMODU MOD IV Connector Housing
Series AMPMODU MOD V
Minimum Wire Size mm² 0.2mm²
Termination Method Crimp
Maximum Wire Size mm² 0.6mm²
Contact Plating Gold
Minimum Wire Size AWG 24AWG
Maximum Wire Size AWG 20AWG
Contact Material Phosphor Bronze
Maximum Contact Resistance 12mΩ
Minimum Operating Temperature -65°C
Maximum Operating Temperature +105°C
3600 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 100)
Was MYR1.397
MYR 1.343
units
Per unit
Per Pack*
100 - 900
MYR1.343
MYR134.30
1000 - 2900
MYR1.24
MYR124.00
3000 - 7400
MYR1.194
MYR119.40
7500 - 14900
MYR1.153
MYR115.30
15000 +
MYR1.121
MYR112.10
*price indicative
Packaging Options:
