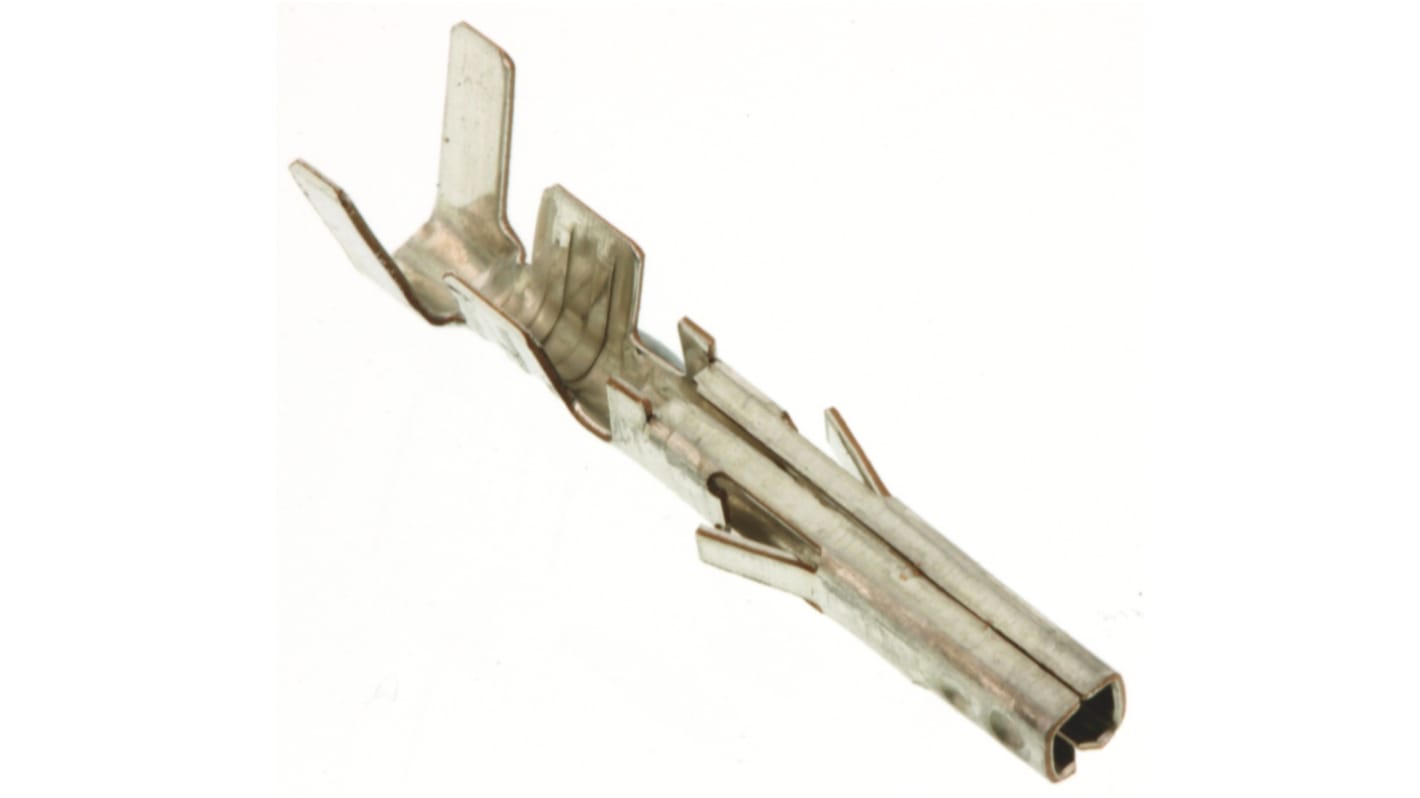

Molex Mini-Fit Series Female Crimp Terminal, 16AWG Max
- RS Stock No.:
- 670-4648
- Mfr. Part No.:
- 39-00-0080
- Manufacturer:
- Molex
Stocked by manufacturer – available for delivery 23/10/2024
Added
Price Each (In a Pack of 100)
MYR1.027
| Units | Per Unit | Per Pack* |
| 100 - 200 | MYR1.027 | MYR102.70 |
| 300 - 400 | MYR1.007 | MYR100.70 |
| 500 + | MYR0.986 | MYR98.60 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 670-4648
- Mfr. Part No.:
- 39-00-0080
- Manufacturer:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Mini-Fit Crimp Contacts
Mini-Fit pin and receptacle crimp contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility
Features and Benefits
• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Range of platings and wire sizes for design flexibility
• Locking tangs for secure connection in housing
• Range of platings and wire sizes for design flexibility
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Molex Minifit Jr.™ Series
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Series | Mini-Fit |
| Maximum Wire Size mm² | 1.3mm² |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Maximum Wire Size AWG | 16AWG |
| Contact Material | Phosphor Bronze |
| Series Number | 5556 |
| Maximum Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
