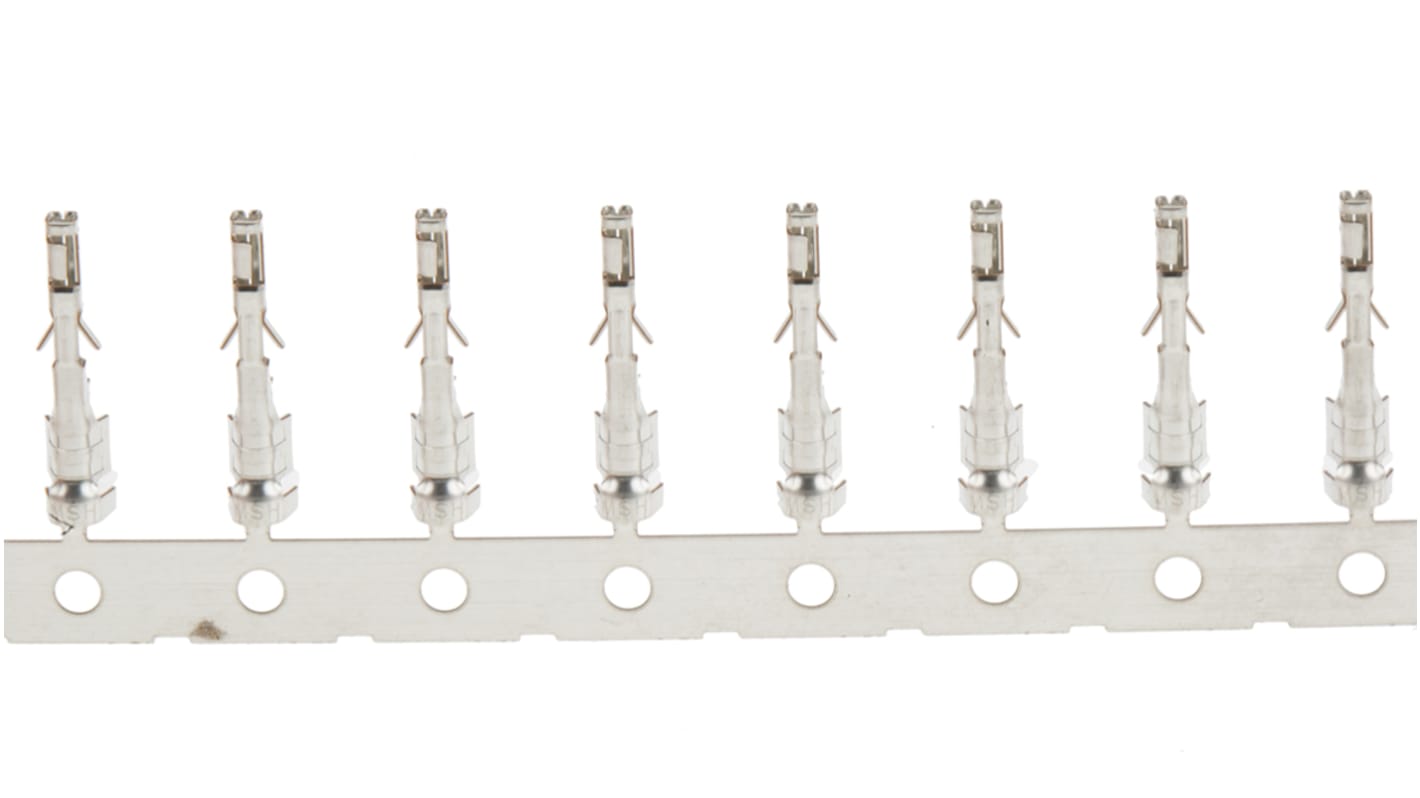

43030-0001 Molex MICRO-FIT 3.0 Female Crimp Terminal Contact 20AWG

  • RS Stock No. 670-1850
  • Mfr. Part No. 43030-0001
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

The Molex 43030-0001 is a female crimp contact from their 43030 Micro-Fit 3.0 series. This connector is made from a tin-plated phosphor bronze and designed for wires of 20-24 AWG.

Where is it used?
The 43030-0001 is used in the manufacturing of PCB sockets. This crimp contact is ideal for use in consumer goods such as white goods and security systems, telecommunications such as routers, medical machines such as monitors and automotive items such as harnesses.

Features:
Female crimp contact
26-30 AWG wire compatible
43030 Micro-Fit 3.0 series
Reliable connection

Compatible Accessory Parts:
43025 / 43645 Micro-Fit 3.0 Receptacle Housings
44133 Micro-Fit BMI Panel Mount Receptacles

Molex Micro-Fit 3.0 Series

Specifications
Attribute Value
Gender Female
For Use With Micro-Fit 3.0 and Micro-Fit BMI Connector Housings
Series Micro-Fit 3.0
Minimum Wire Size mm² 0.2mm²
Termination Method Crimp
Maximum Wire Size mm² 0.5mm²
Minimum Wire Size AWG 24AWG
Contact Plating Tin
Contact Material Phosphor Bronze
Maximum Wire Size AWG 20AWG
Series Number 43030
Maximum Contact Resistance 10mΩ
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
16500 Within 2 working day(s)
104600 Within 4 working day(s) (Global stock)
Price Each (In a Pack of 100)
MYR 0.366
units
Per unit
Per Pack*
100 - 900
MYR0.366
MYR36.60
1000 - 2900
MYR0.332
MYR33.20
3000 - 7400
MYR0.321
MYR32.10
7500 - 14900
MYR0.309
MYR30.90
15000 +
MYR0.304
MYR30.40
*price indicative
