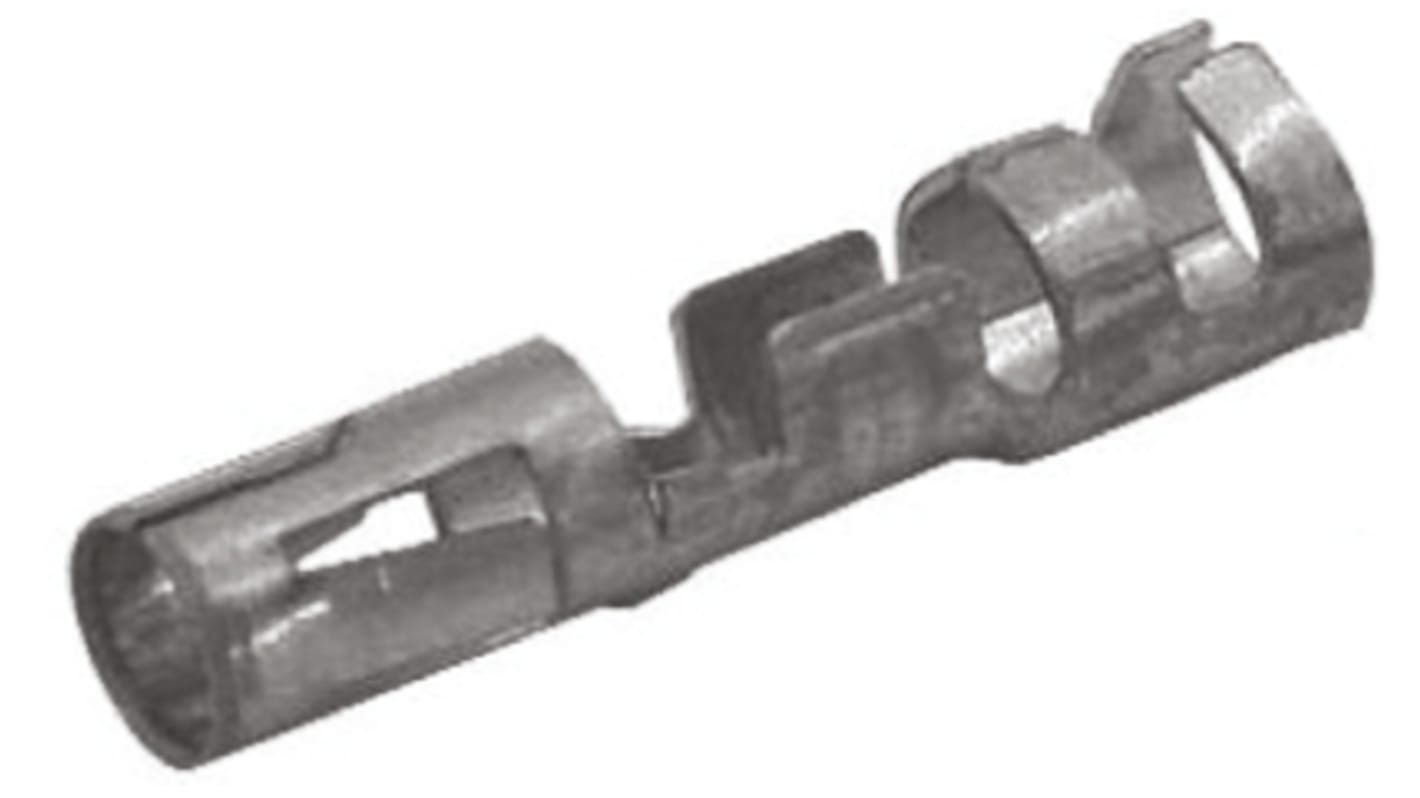

TE Connectivity 0.140 Mate-N-LOK Series Female Crimp Terminal, 14AWG Min, 10AWG Max
- RS Stock No.:
- 660-0974
- Mfr. Part No.:
- 925712-1
- Manufacturer:
- TE Connectivity
5100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
MYR1.017
| Units | Per Unit | Per Pack* |
| 100 + | MYR1.017 | MYR101.70 |
| *price indicative | ||
- RS Stock No.:
- 660-0974
- Mfr. Part No.:
- 925712-1
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
Crimp Contacts
For use with .140 MATE-N-LOCK pin and socket housings
Dual locking lances assure optimum contact stability
Brass or phosphor bronze
Brass or phosphor bronze
Note
No insertion tool is recommended for the .140 MATE-AND-LOCK contacts because the contacts handle larger wire sizes
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
TE Connectivity .140 MATE-N-LOCK Housings
Internal equipment connection wire-to wire for discrete wire 6.09mm (.24 in) pitch,Contacts accept wire size range 20 - 10 AWG (.5 - 5 mm²)
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| For Use With | 0.140 Mate-N-LOK Connector Housing |
| Series | 0.140 Mate-N-LOK |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 5mm² |
| Termination Method | Crimp |
| Minimum Wire Size AWG | 14AWG |
| Contact Plating | Tin |
| Maximum Wire Size AWG | 10AWG |
| Contact Material | Brass |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
