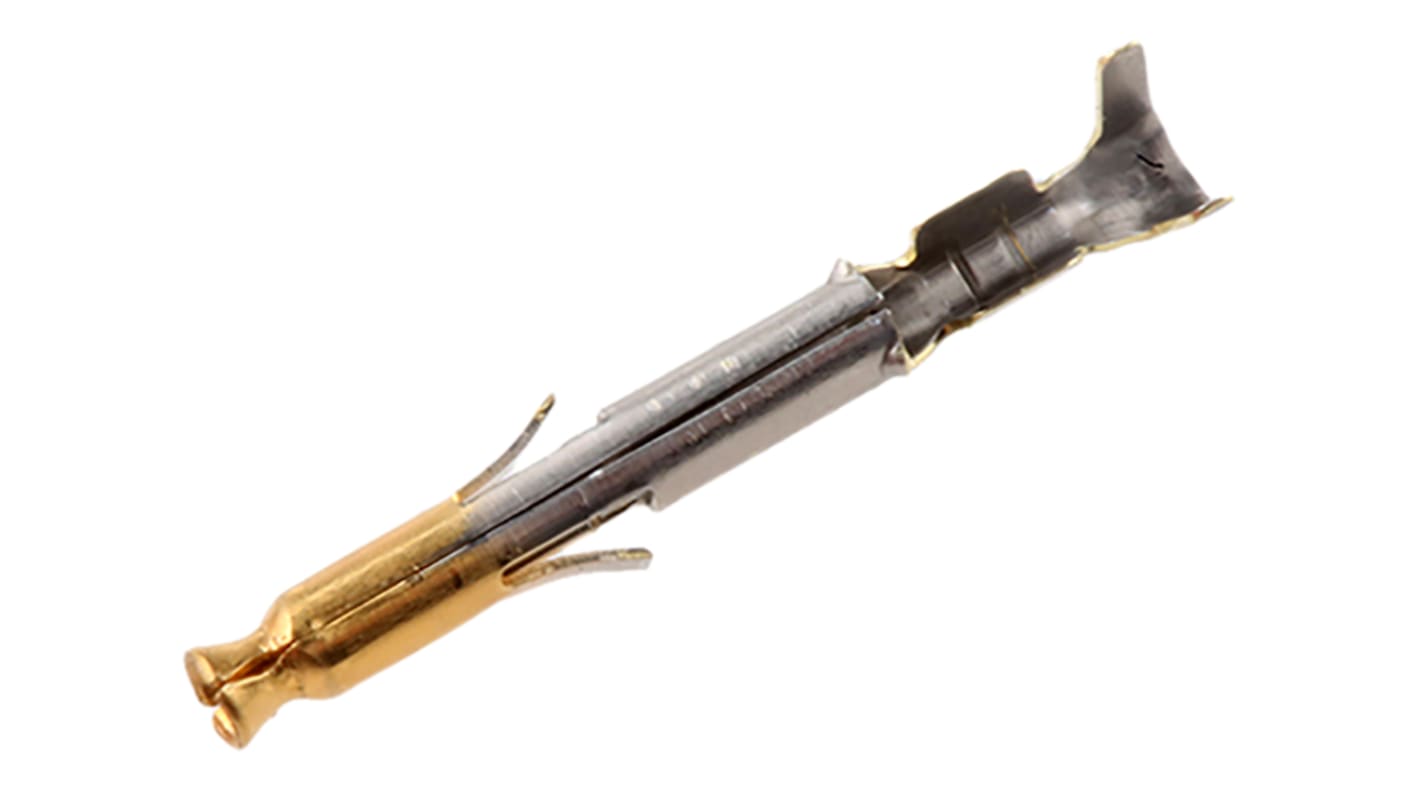

TE Connectivity Mini-Universal MATE-N-LOK Series Crimp Terminal, Female, 0.12mm² to 0.35mm², 26AWG to 22AWG
- RS Stock No.:
- 479-1659
- Mfr. Part No.:
- 170365-3
- Manufacturer:
- TE Connectivity
160 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
11410 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR2.223
| Units | Per Unit | Per Pack* |
| 10 - 90 | MYR2.223 | MYR22.23 |
| 100 - 490 | MYR2.176 | MYR21.76 |
| 500 - 990 | MYR2.112 | MYR21.12 |
| 1000 - 2490 | MYR2.058 | MYR20.58 |
| 2500 + | MYR2.012 | MYR20.12 |
| *price indicative | ||
- RS Stock No.:
- 479-1659
- Mfr. Part No.:
- 170365-3
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
Gold Plate Nickel Lead Contacts
From TE Connectivity these gold plated nickel contacts are designed for use in the CPC Miniature Series, Mini-Universal MATE-N-LOK connectors.
TE Connectivity CPC Series Miniature
Based on the successful and popular standard CPC series, these fully sealed IP67 power connectors 4 or 9 way, utilise precision-formed contacts that offer a rating of up to 7A for single contacts, in isolation. Manufactured from high strength, impact resistant thermoplastic. Ideally suited to industrial, instrumentation and transportation applications where size, contact density and environmental exposure are primary concerns.
Nylon housing is resistant to a wide range of chemicals
Easy grip turn coupling with positive lock for fast coupling/uncoupling
Alignment features
Antivibration lock
Front or rear jam nut mounting
Dust caps available
Contacts to be purchased separately
Pin contacts to be assembled in receptacles, socket contacts in plugs
Easy grip turn coupling with positive lock for fast coupling/uncoupling
Alignment features
Antivibration lock
Front or rear jam nut mounting
Dust caps available
Contacts to be purchased separately
Pin contacts to be assembled in receptacles, socket contacts in plugs
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Series | Mini-Universal MATE-N-LOK |
| Minimum Wire Size mm² | 0.12mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Termination Method | Crimp |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Contact Material | Brass |
| Maximum Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +105°C |
