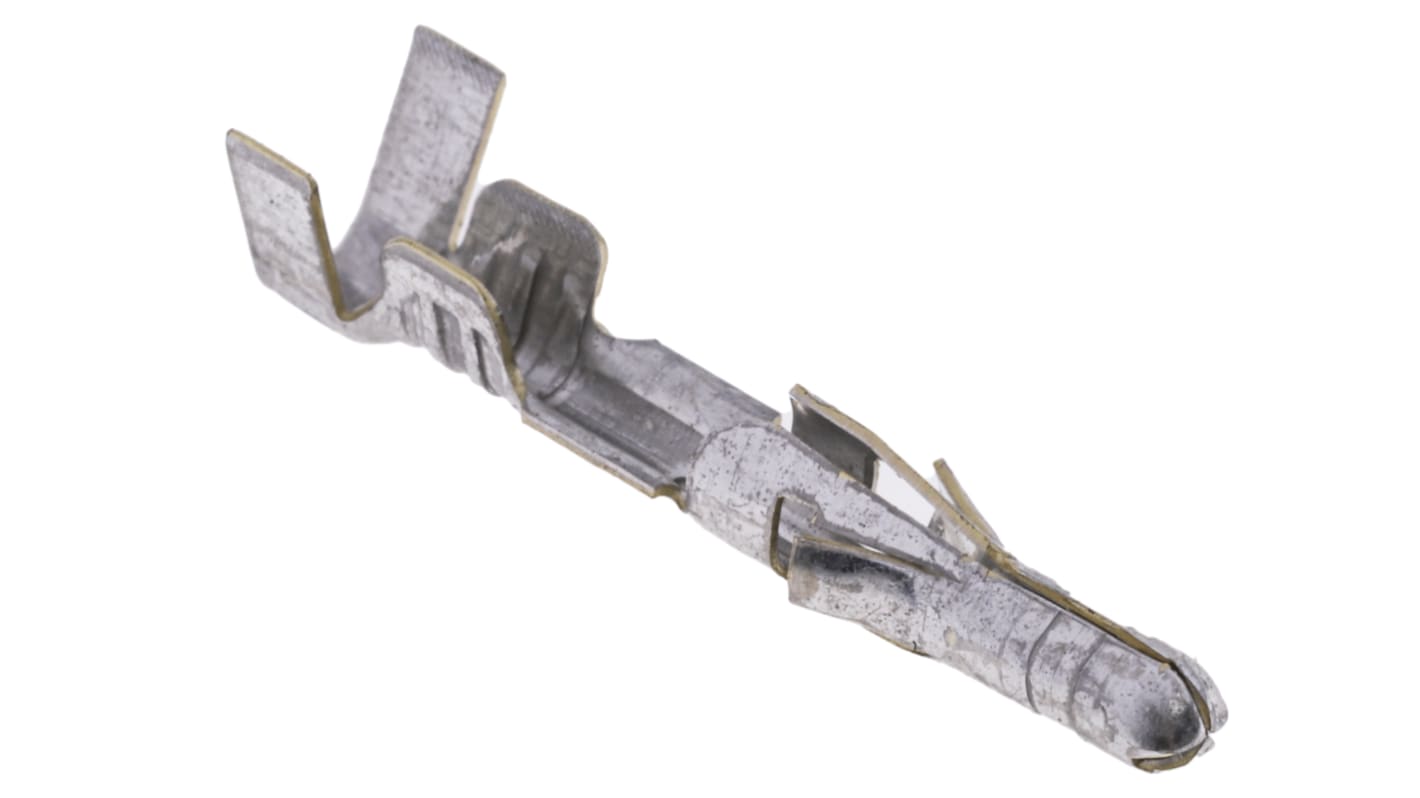

02-09-2103 Molex STANDARD .093" Male Crimp Terminal Contact 14AWG

  • RS Stock No. 236-3230
  • Mfr. Part No. 02-09-2103
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Molex 2.36mm Diameter Pin and Receptacle Crimp Terminals

2.36mm diameter pin and receptacle crimp terminals with an industry standard size which allows them to be used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 series connector housings. These crimp terminals can be used in either plug or receptacle housings for design flexibility and are available with a tin or gold plating and a range of wire sizes.

Application:

• Consumer Electronics
• Communications
• Networking
• Portable Devices

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Specifications
Attribute Value
Gender Male
For Use With STANDARD .093" Connector Housing
Series STANDARD .093"
Minimum Wire Size mm² 0.5mm²
Termination Method Crimp
Maximum Wire Size mm² 2mm²
Minimum Wire Size AWG 20AWG
Contact Plating Tin
Contact Material Brass
Maximum Wire Size AWG 14AWG
Series Number 1190
Maximum Contact Resistance 10mΩ
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
2250 Within 2 working day(s)
7100 Within 4 working day(s) (Global stock)
Price Each (In a Pack of 50)
Was MYR0.764
MYR 0.485
units
Per unit
Per Pack*
50 - 450
MYR0.485
MYR24.25
500 - 1450
MYR0.427
MYR21.35
1500 - 3700
MYR0.365
MYR18.25
3750 - 7450
MYR0.346
MYR17.30
7500 +
MYR0.337
MYR16.85
*price indicative
