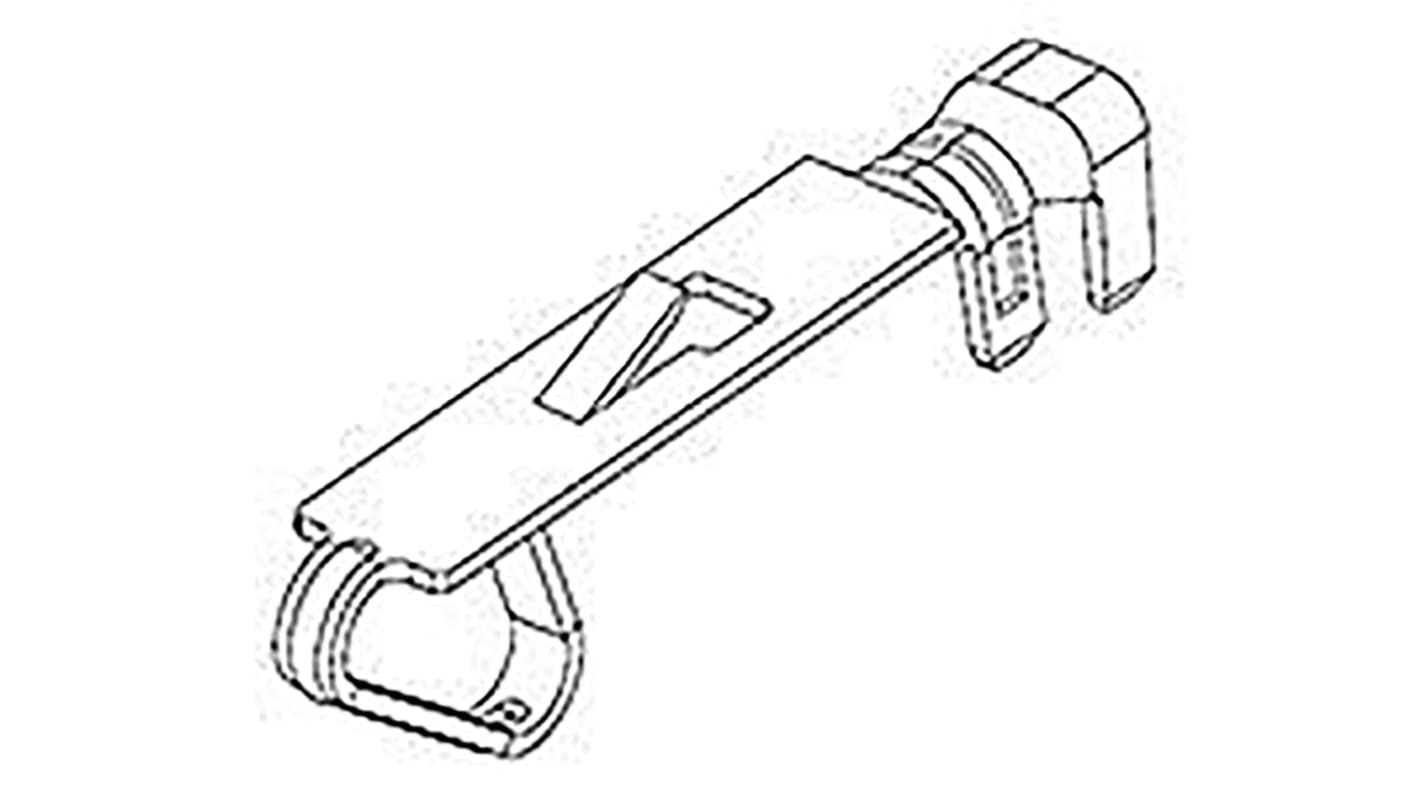

200449-0001 Molex Electronics EDGELOCK Female Crimp Terminal Contact 22AWG

  • RS Stock No. 174-2027
  • Mfr. Part No. 200449-0001
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): KR
Product Details

EdgeLock wire connectors offer space savings and positive locking for secure mating to PCB edge cards. Typically the header is soldered to the PCB, which adds space and assembly steps. Extra steps are involved if rework is required. EdgeLock is a solution for direct mating to PCB Edge-Card. At the same time, the latch can be used to release the assembly easily from the PCB. The demand for positive locking is growing, improving PCB retention forces.

This specification details the crimping information and common practices for general crimps for the EDGE LOCK crimp terminal per sales drawing 2004490001.

Specifications
Attribute Value
Gender Female
For Use With EdgeLock Edge Card Connector
Series EDGELOCK
Termination Method Crimp or Compression
Minimum Wire Size AWG 24AWG
Contact Plating Tin
Contact Material Phosphor Bronze
Maximum Wire Size AWG 22AWG
Series Number 200449
24000 In Global stock for delivery within 4 - 6 working days
Price Each (On a Reel of 8000)
Was MYR0.214
MYR 0.123
units
Per unit
Per Reel*
8000 - 24000
MYR0.123
MYR984.00
32000 +
MYR0.116
MYR928.00
*price indicative
