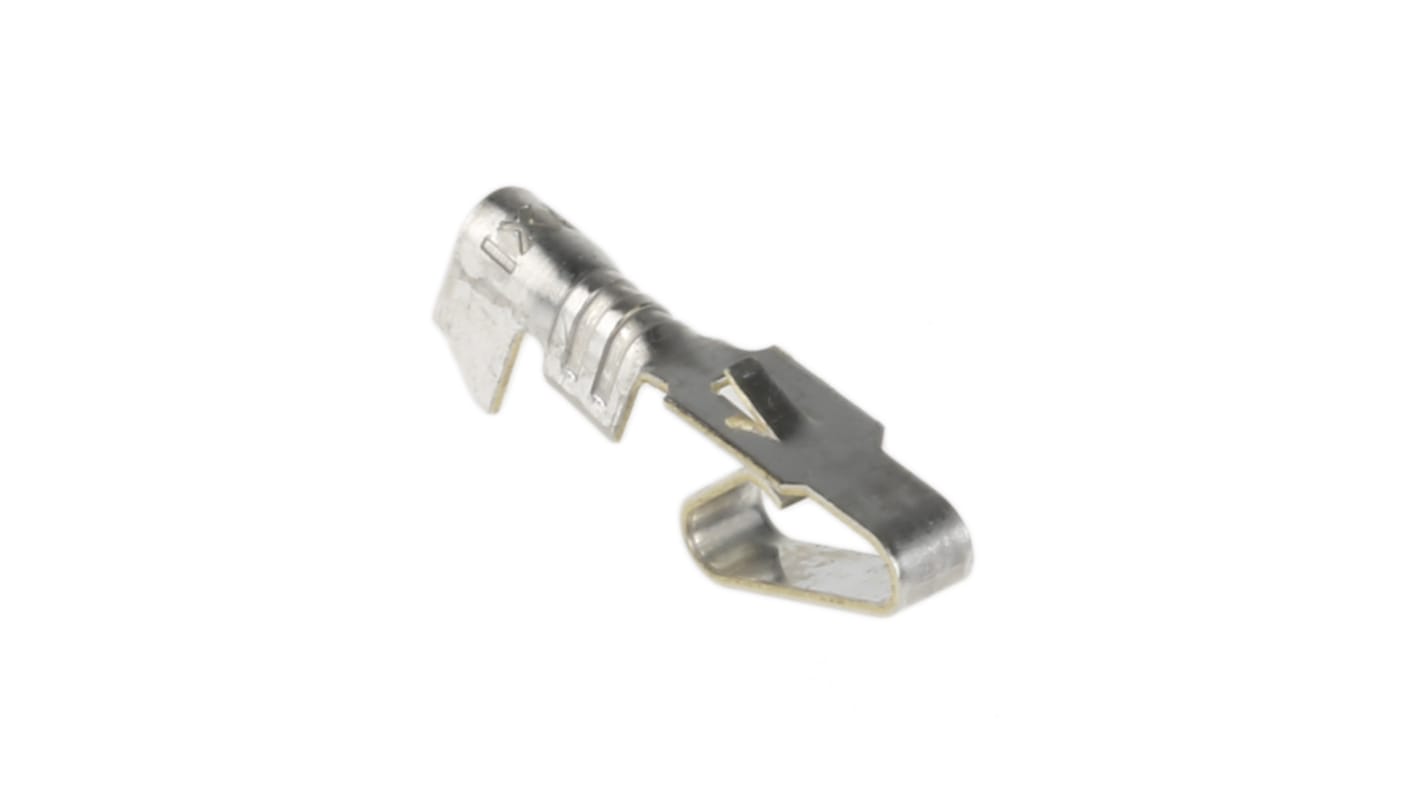

Molex KK 396 2478 Crimp Terminal Contact, Female, 0.2mm² to 0.8mm², 24AWG to 18AWG, Tin Plating

  • RS Stock No. 173-3284
  • Mfr. Part No. 08-50-0106
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IE
Product Details

Molex KK Series Crimp Receptacle Terminals - 2478 and 2578 Series

2478 and 2578 series crimp receptacle terminals with a dual cantilever design for use in the KK 396 and KK508 series crimp connector housings. These KK series crimp terminals have a square post contact area that interfaces with the mating male pin header by using a spring-like contact. Wire size ranges of 26 AWG to 22 AWG (series 2578) and 24 AWG to 18 AWG (series 2478) are available with a range of contact platings

Features:

• Wire gauge of 18 to 26 AWG
• Brass or Phosphor Bronze material
• Tin or Gold Contact Plating

Applications:

• Automotive Industry
• Consumer Electronics
• Data/Computing
• Medical Industry
• Communications
• Networking

Molex part number 08-50-0105 has brass tin plated material as well as tinned plating termination. Wire size 18 – 24 AWG. It is used with KK 396 Connector Housing.

Benefits:

• Smoothness of edges and lack of burrs
• Firmness of fit between metal and insulation

Approvals

• U.L (Underwriters Laboratories) File Number - E29179
• CSA (Canadian Standards Association) - LR19980

3.96mm Molex KK Range

Specifications
Attribute Value
Gender Female
For Use With KK 396 Connector Housing
Series KK 396
Minimum Wire Size mm² 0.2mm²
Maximum Wire Size mm² 0.8mm²
Termination Method Crimp
Contact Plating Tin
Minimum Wire Size AWG 24AWG
Maximum Wire Size AWG 18AWG
Contact Material Brass
Series Number 2478
Maximum Contact Resistance 10mΩ
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
