- RS Stock No.:
- 170-7158
- Mfr. Part No.:
- 50394-8200
- Manufacturer:
- Molex
- RS Stock No.:
- 170-7158
- Mfr. Part No.:
- 50394-8200
- Manufacturer:
- Molex
Legislation and Compliance
Product Details

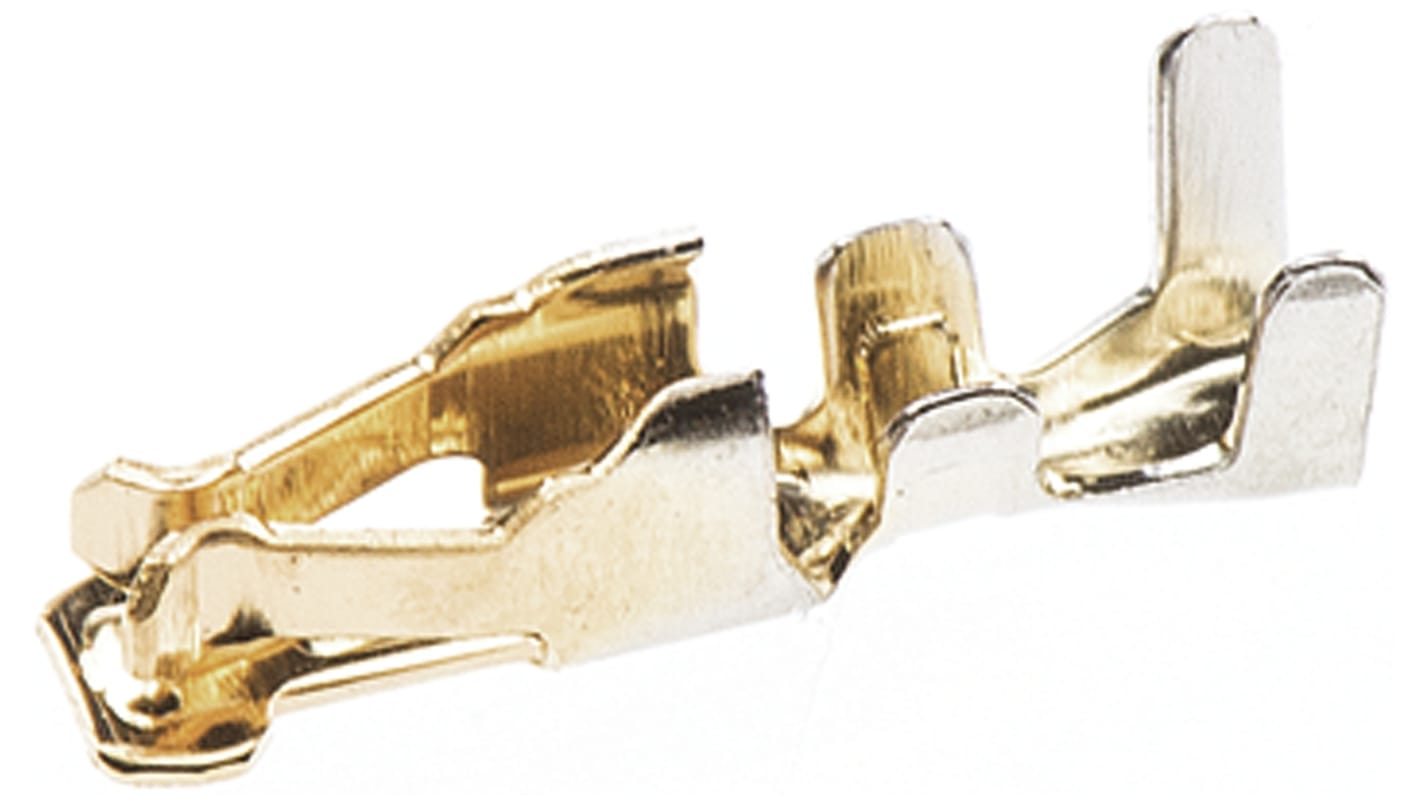

Molex Milli-Grid Crimp Terminals
A range of receptacle and pin crimp terminals for use in Milli-Grid series plug and receptacle connector housings
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Molex 2.0 mm Milli-Grid Interconnection System
The Milli-Grid connector system is a high density connector system based on a 2 x 2 mm grid pattern offering design flexibility for board to board and cable to board applications. The Milli-Grid family of connectors consists of shrouded and unshrouded headers, single and dual row receptacles, connector housings and crimp terminals
Specifications
Attribute | Value |
---|---|
Gender | Female |
For Use With | Milli-Grid Connector Housing |
Series | Milli-Grid |
Minimum Wire Size mm² | 0.05mm² |
Maximum Wire Size mm² | 0.2mm² |
Termination Method | Crimp |
Contact Plating | Gold |
Minimum Wire Size AWG | 30AWG |
Maximum Wire Size AWG | 24AWG |
Contact Material | Phosphor Bronze |
Series Number | 50394 |
