Molex KK 254 Series Female Crimp Terminal, 30AWG Min, 22AWG Max

RS Stock No.:: 170-7138
Mfr. Part No.:: 08-50-0113
Manufacturer:: Molex

Molex KK 254 Series Female Crimp Terminal, 30AWG Min, 22AWG Max

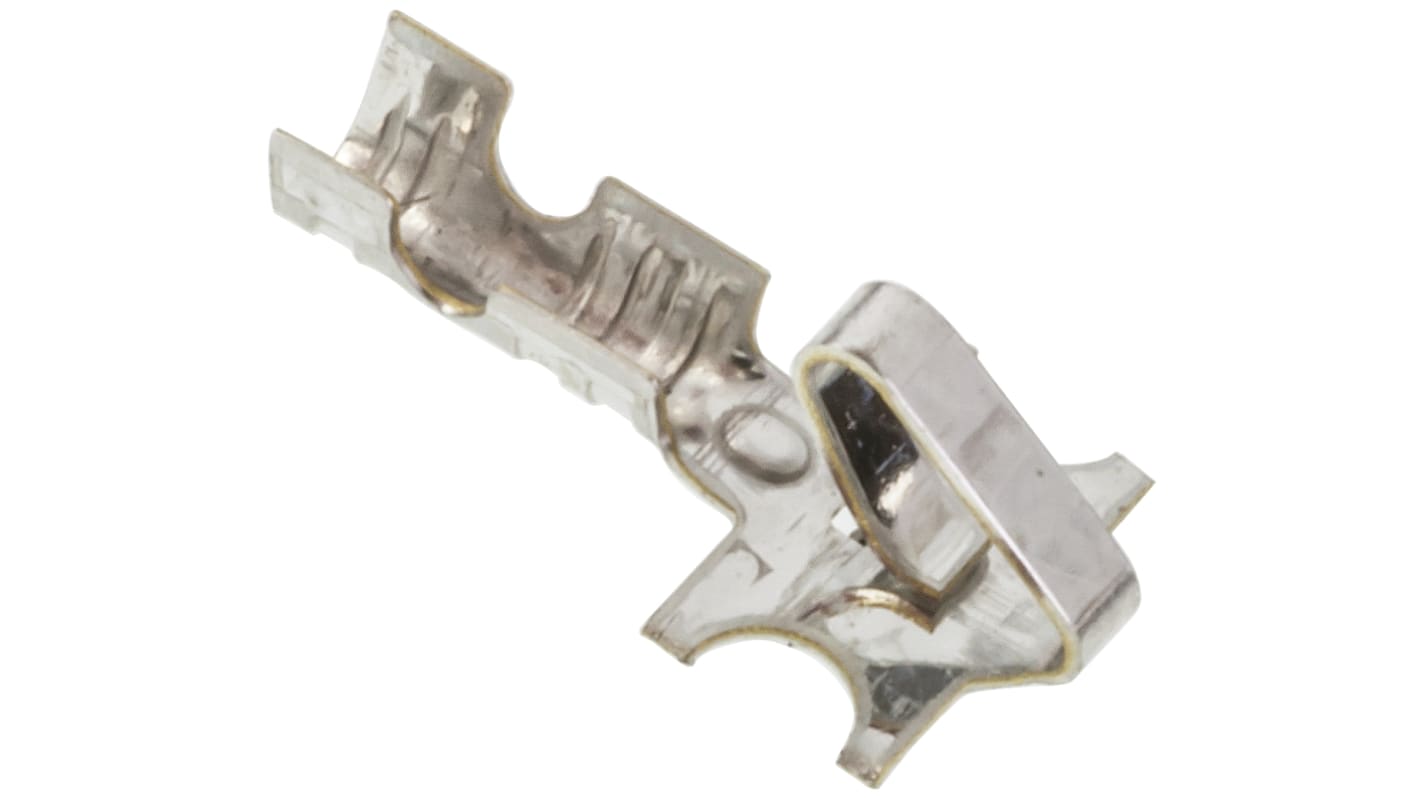

This image is representative of the product range

10000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (On a Reel of 10000)

MYR0.205

Units	Per Unit	Per Reel*
10000 - 40000	MYR0.205	MYR2,050.00
50000 +	MYR0.185	MYR1,850.00
*price indicative

RS Stock No.:: 170-7138
Mfr. Part No.:: 08-50-0113
Manufacturer:: Molex

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

Crimp Terminal, 2759 Series

KK 254 2759 Series Crimp Terminal contacts are for use with KK 2695 Series housings and KK 5051 Series housings on 22-30 AWG conductors.

2759 Series Crimp Terminal contacts include:
• 670-2263 Hot Tin Dipped, reel
• 172-9178 Hot Tin Dipped, loose
• 670-2266 Select Gold with Nickel overall, on reel
• 678-3149 Select Gold with Nickel overall, loose
• 670-2276 Select Gold with Gold Flash overall, on reel
• 678-3155 Select Gold with Gold Flash overall, loose

Appropriate tooling for 2759 Series Crimp Terminal contacts:
For Crimp Tool see stock number 663-4246
For Insertion Tool see stock number 710-6528
For Extraction Tool see stock number 173-3278

Specifications

Attribute	Value
Gender	Female
For Use With	KK 254 Connector Housing
Series	KK 254
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	0.35mm²
Termination Method	Crimp
Minimum Wire Size AWG	30AWG
Contact Plating	Tin
Contact Material	Brass
Maximum Wire Size AWG	22AWG
Series Number	2759
Maximum Contact Resistance	10mΩ
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+75°C
