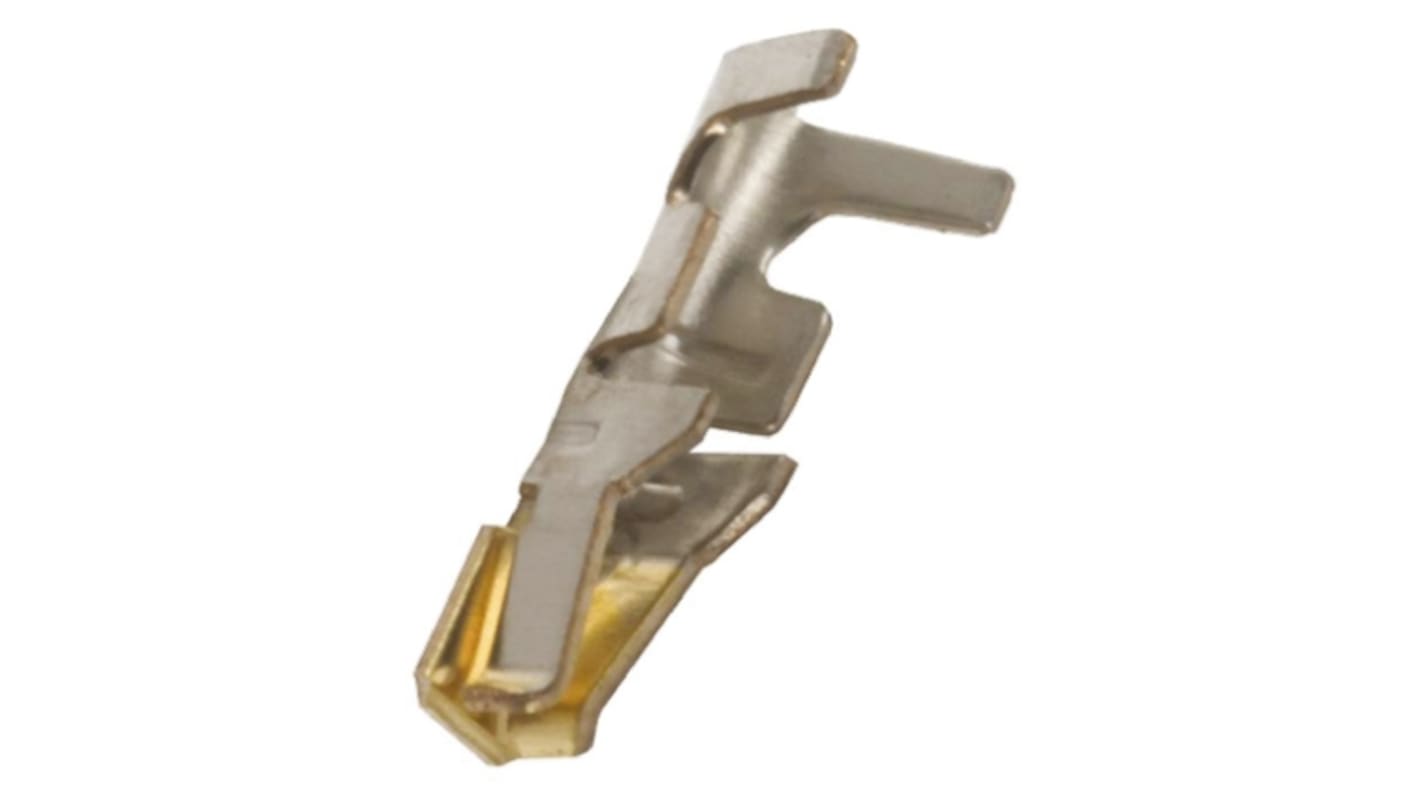

Hirose DF11 Series Female Crimp Terminal, 28AWG Min, 24AWG Max
- RS Stock No.:
- 166-4958
- Mfr. Part No.:
- DF11-2428SCA
- Manufacturer:
- Hirose
2700 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
MYR0.854
| Units | Per Unit | Per Pack* |
| 100 - 100 | MYR0.854 | MYR85.40 |
| 200 - 300 | MYR0.841 | MYR84.10 |
| 400 + | MYR0.825 | MYR82.50 |
| *price indicative | ||
- RS Stock No.:
- 166-4958
- Mfr. Part No.:
- DF11-2428SCA
- Manufacturer:
- Hirose
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Hirose DF11 Series Crimp Receptacle and Pin Contacts
A range of crimp contacts for use in the DF11 series 2.00mm connector housings. The crimp receptacle contacts are for use in the crimp connector housings. The crimp pin contacts are for use in the in-line plug connector housings. These crimp contacts are available in wire size ranges of 30 to 22 AWG and with gold or tin plating.
Note
Recommended wire for DF11-22SCF/SC/SCFA/SCA is UL1061
2.0mm Hirose DF11 Series Double Row Connectors
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| For Use With | DF11 Connector Housing |
| Series | DF11 |
| Termination Method | Crimp |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 28AWG |
| Contact Plating | Gold |
| Contact Material | Copper Alloy |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 30mΩ |
| Minimum Operating Temperature | -30°C |
| Maximum Current | 1A |
| Maximum Operating Temperature | +85°C |
