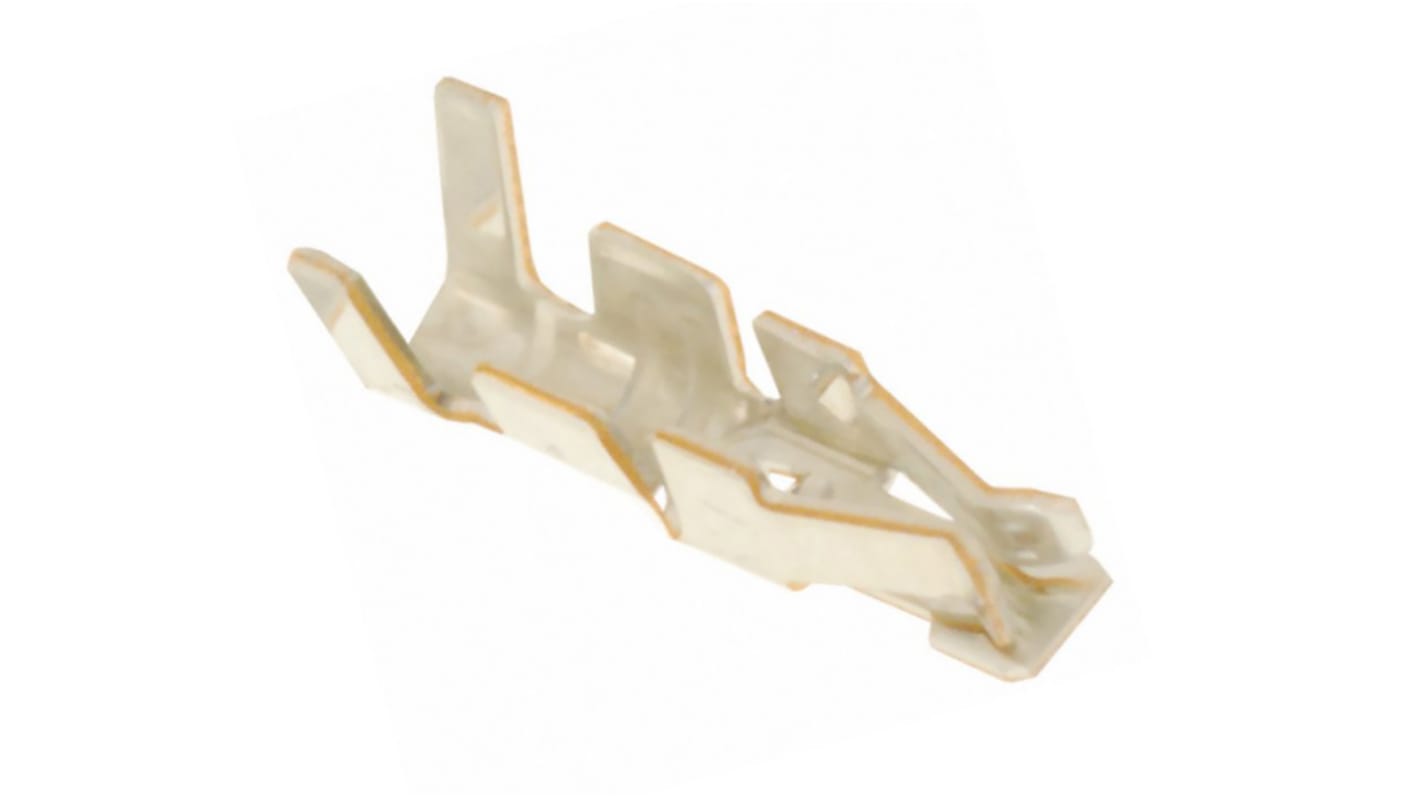

JST PHD Series Female Crimp Terminal, 28AWG Min, 24AWG Max
- RS Stock No.:
- 165-7927
- Mfr. Part No.:
- BPHD-002T-P0.5
- Manufacturer:
- JST
120000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 8000)
MYR0.171
| Units | Per Unit | Per Bag* |
| 8000 - 32000 | MYR0.171 | MYR1,368.00 |
| 40000 + | MYR0.165 | MYR1,320.00 |
| *price indicative | ||
- RS Stock No.:
- 165-7927
- Mfr. Part No.:
- BPHD-002T-P0.5
- Manufacturer:
- JST
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
JST PHD Series Crimp Contacts
JST’s range of PHD series crimp contacts for use in PHD 2.0mm series crimp receptacle housings are a robust and reliable connection method for a range of application. These crimp receptacle contacts are made from phosphor bronze with a tin plating and accept wire size ranges of 28-24 AWG or 26-22 AWG.
PHD Series
918-2814 26 AWG - 22 AWG PHD Series contact - Standard Pack
165-7913 26 AWG - 22 AWG PHD Series contact - Bulk Bag
918-2817 26 AWG - 24 AWG PHD Series contact - Standard Pack
165-7927 26 AWG - 24 AWG PHD Series contact - Bulk Bag
688-1381 26 AWG - 22 AWG PHD Series contact - Standard Pack
688-1385 26 AWG - 24 AWG PHD Series contact - Standard Pack
A hand crimp tool (stock number 688-0880) is available for use with 28-24 AWG crimp contacts.
An extraction tool is also available, see stock number 688-0871.
PHD Series
918-2814 26 AWG - 22 AWG PHD Series contact - Standard Pack
165-7913 26 AWG - 22 AWG PHD Series contact - Bulk Bag
918-2817 26 AWG - 24 AWG PHD Series contact - Standard Pack
165-7927 26 AWG - 24 AWG PHD Series contact - Bulk Bag
688-1381 26 AWG - 22 AWG PHD Series contact - Standard Pack
688-1385 26 AWG - 24 AWG PHD Series contact - Standard Pack
A hand crimp tool (stock number 688-0880) is available for use with 28-24 AWG crimp contacts.
An extraction tool is also available, see stock number 688-0871.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
2.0mm Wire to Board JST - PHD Series
The PHD Series is a 2.0mm (.079") pitch, crimp style, double-row, Wire-to-Board connector. It is designed to meet the demand for high density and low-profile connection.
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Series | PHD |
| Minimum Wire Size mm² | 0.08mm² |
| Termination Method | Crimp |
| Maximum Wire Size mm² | 0.2mm² |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Contact Material | Phosphor Bronze |
| Maximum Contact Resistance | 20mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| Maximum Operating Temperature | +85 °C, +85 °C |
