TE Connectivity, MTA-156 Male Keying Plug 641623-1

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

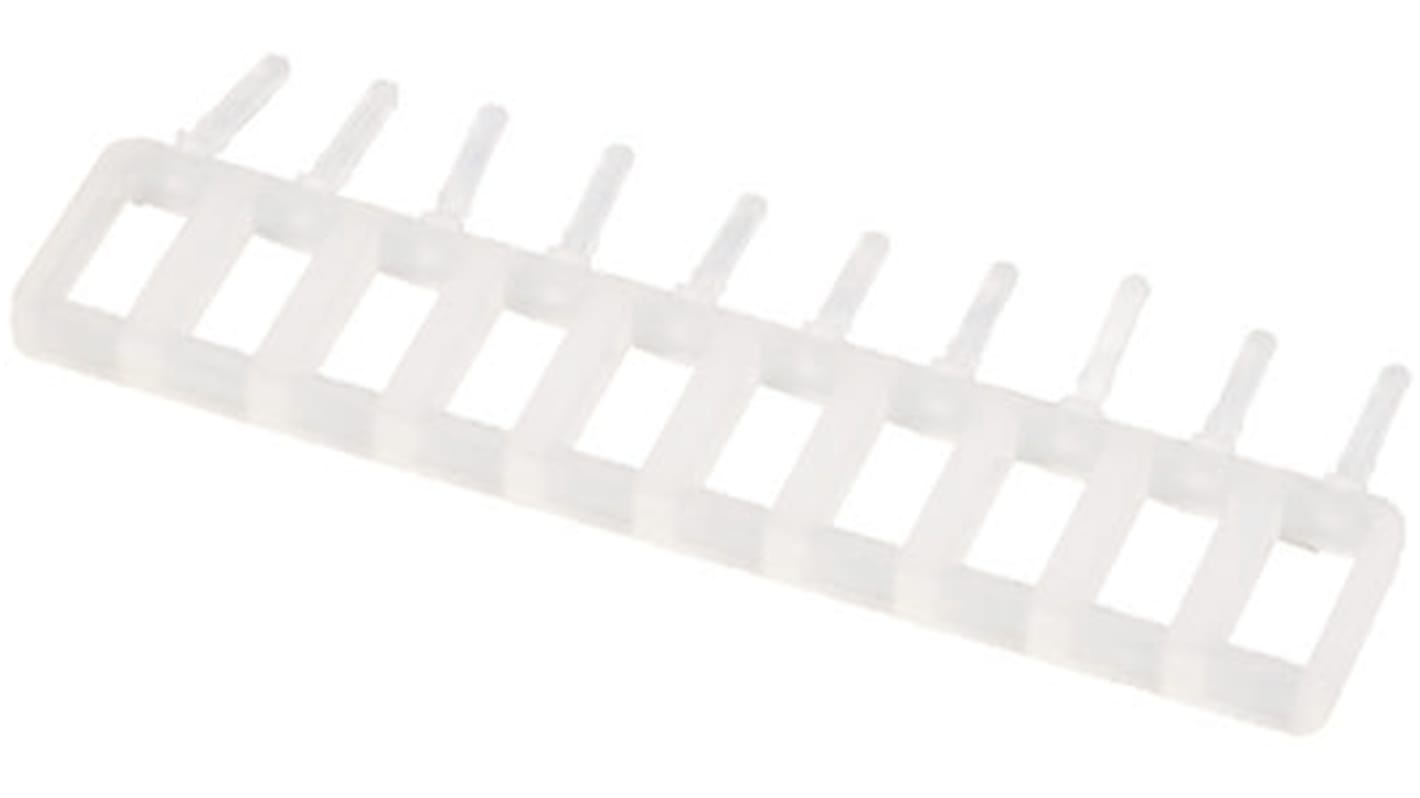

Keying Plug MTA-156

TE Connectivity MTA-156 3.96mm Interconnect System

MTA-156 (Mass Termination Assembly) 3.96 mm pitch connector system for labour and cost saving mass termination of wires in wire-to-board and wire-to-wire applications. These MTA-156 connectors are based on IDC (insulation displacement contact) technology allowing one-step assembly and eliminating the need for wire stripping saving both time and cost. Using production hand tooling these MTA-156 IDC connectors can be quickly assembled to 26 AWG to 18 AWG discrete wire or ribbon cable. The MTA-156 connector system consists of female IDC connectors and PCB headers. The housings of the IDC connectors are colour coded according to wire size

Specifications
Attribute Value
Gender Male
Series MTA-156
10000 In Global stock for delivery within 4 - 6 working days
Price Each (In a Box of 400)
MYR 0.372
units
Per unit
Per Box*
400 +
MYR0.372
MYR148.80
*price indicative
