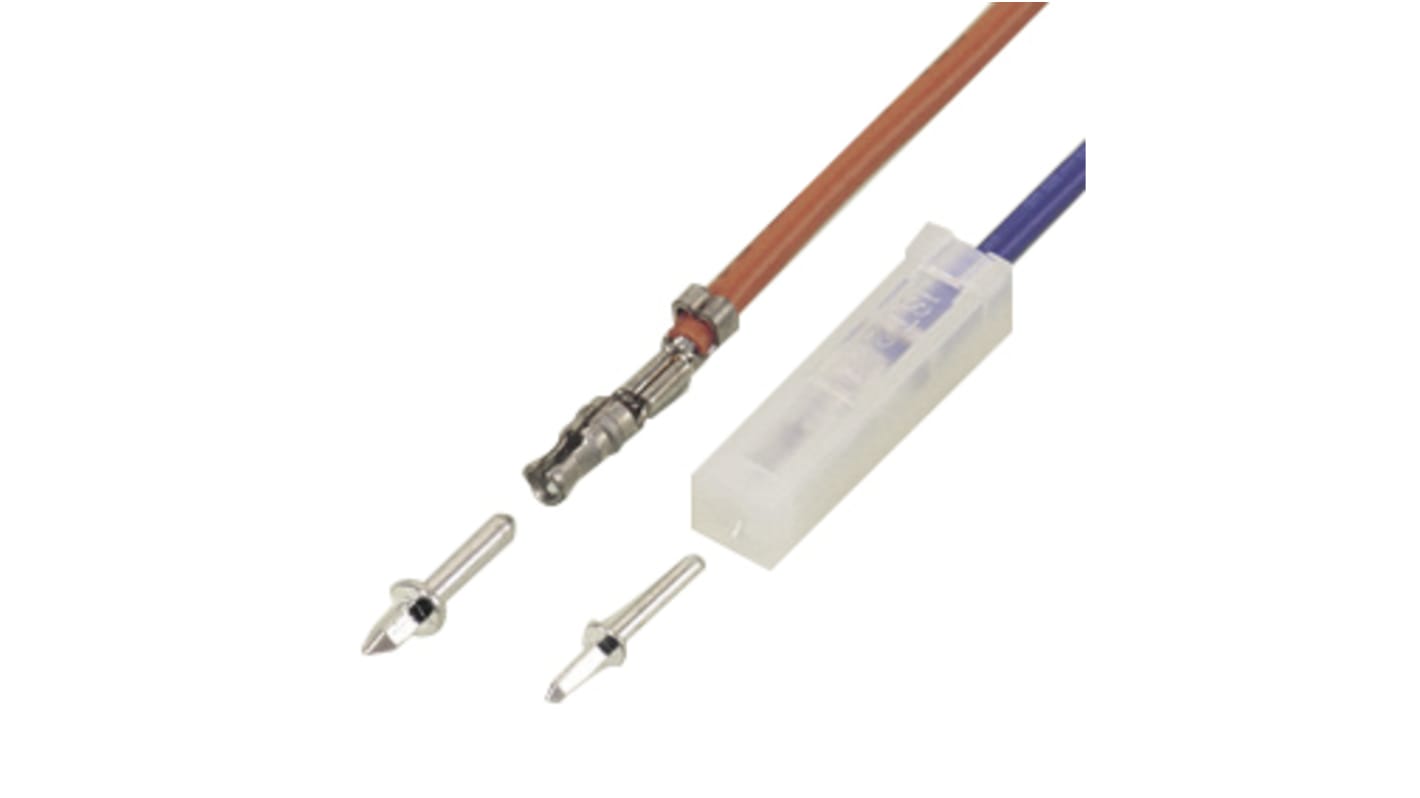

SMF-01T-1.3 JST SMF Male Crimp Terminal Contact 20AWG

  • RS Stock No. 163-0362
  • Mfr. Part No. SMF-01T-1.3
  • Manufacturer JST
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

For 1.0mm and 1.3mm diameter pins, having a funnel shaped lead-in to ease insertion and to ensure a balance with its high retaining force.

Specifications
Attribute Value
Gender Male
For Use With SMF Connector Housing
Series SMF
Minimum Wire Size mm² 0.1mm²
Termination Method Crimp
Maximum Wire Size mm² 0.5mm²
Contact Plating Tin
Minimum Wire Size AWG 26AWG
Contact Material Brass
Maximum Wire Size AWG 20AWG
Maximum Contact Resistance 15mΩ
Minimum Operating Temperature -25°C
Maximum Operating Temperature +85°C
Temporarily out of stock - back order for despatch 28/09/2020, delivery within 4 working days from despatch date
Price Each (In a Bag of 50)
Was MYR0.552
MYR 0.38
units
Per unit
Per Bag*
50 - 450
MYR0.38
MYR19.00
500 - 2450
MYR0.355
MYR17.75
2500 - 4950
MYR0.333
MYR16.65
5000 - 12450
MYR0.313
MYR15.65
12500 +
MYR0.305
MYR15.25
*price indicative
