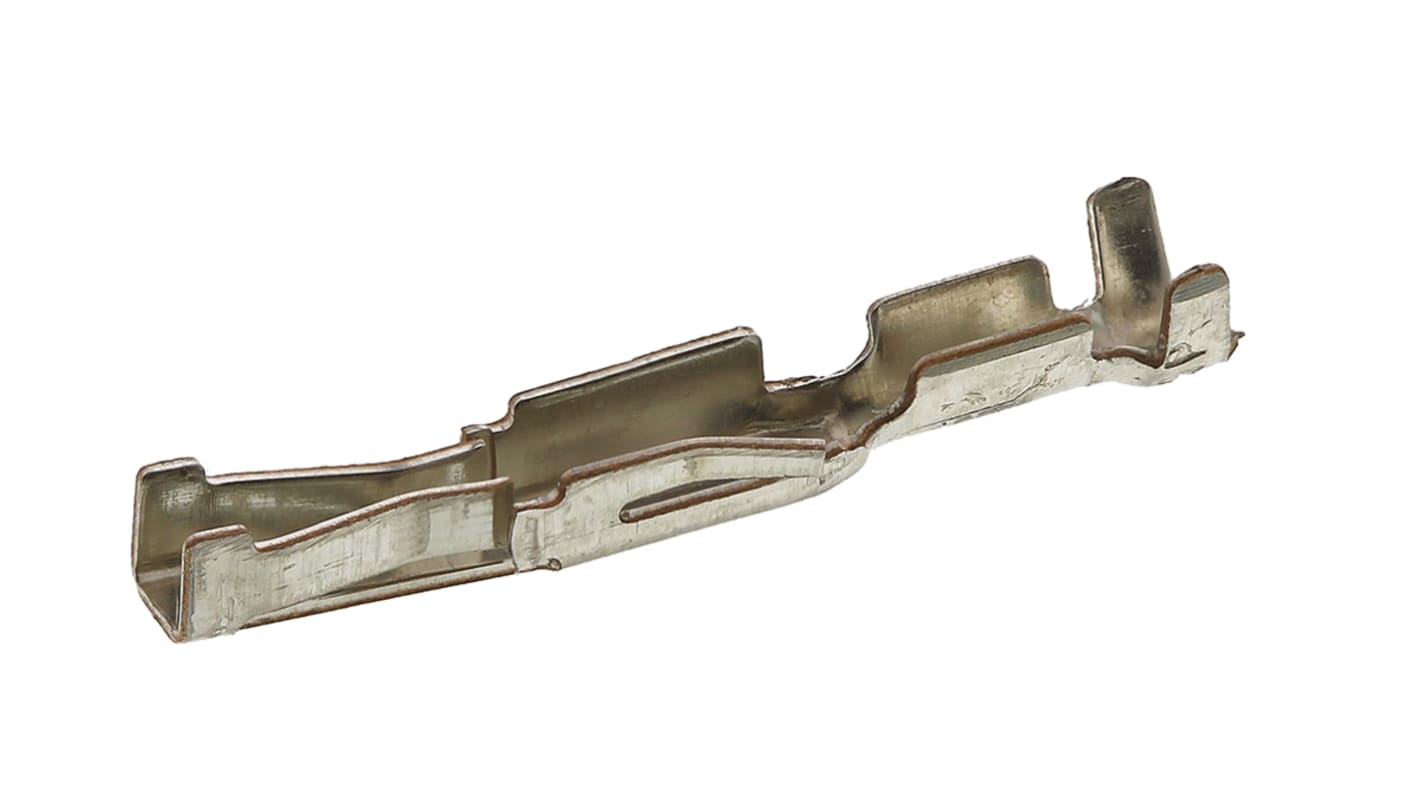

TE Connectivity AMPMODU HE14 Series Female Crimp Terminal, 28AWG Min, 24AWG Max
- RS Stock No.:
- 136-1959
- Mfr. Part No.:
- 188744-1
- Manufacturer:
- TE Connectivity
40000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 20000)
MYR0.565
| Units | Per Unit | Per Reel* |
| 20000 - 80000 | MYR0.565 | MYR11,300.00 |
| 100000 + | MYR0.554 | MYR11,080.00 |
| *price indicative | ||
- RS Stock No.:
- 136-1959
- Mfr. Part No.:
- 188744-1
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Crimp Terminals
Tin plated phosphor bronze, accepts 28 to 24awg (diameter over insulation 1.2mm)
Recommended wire strip length 3.25mm
Recommended wire strip length 3.25mm
Note
TE Connectivity AMPMODU HE14 Interconnect System
The AMPMODU interconnect system is the signal standard for automation and control applications and is both reliable and economical. The AMPMODU HE14 interconnect system has a 2.54mm centreline and consists of IDC receptacle assemblies for terminating discrete wires or ribbon cable, shrouded headers, receptacle housings and crimp contacts. When combined, these connectors can be used in a wide variety of industrial applications and systems.
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| For Use With | AMPMODU HE14 Connector Housing |
| Series | AMPMODU HE14 |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Contact Material | Phosphor Bronze |
| Maximum Contact Resistance | 15mΩ |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +105°C |
