TE Connectivity FFC Series Male Crimp Terminal, 26AWG Min, 22AWG Max

RS Stock No.:: 135-5052
Mfr. Part No.:: 86561-6
Manufacturer:: TE Connectivity

TE Connectivity FFC Series Male Crimp Terminal, 26AWG Min, 22AWG Max

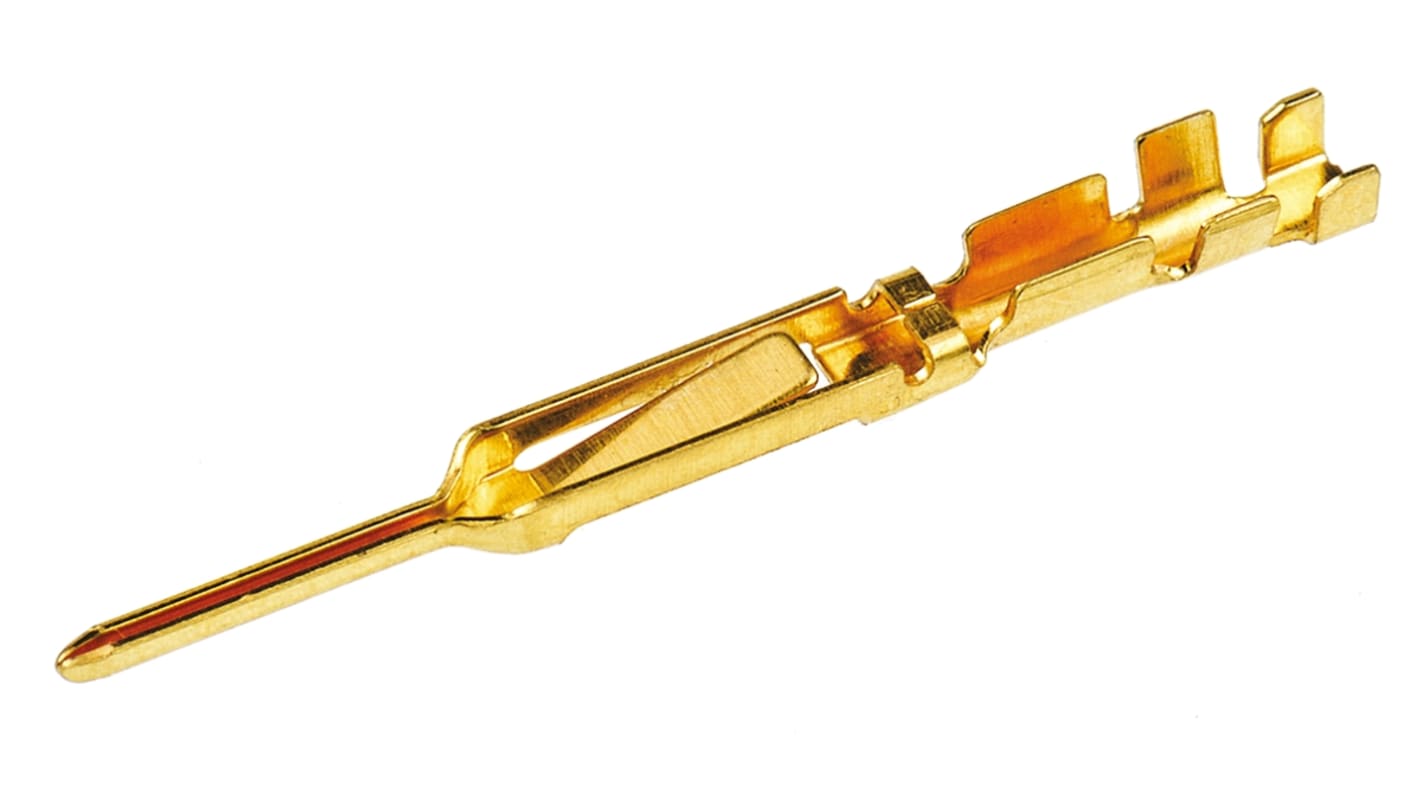

This image is representative of the product range

2000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Bag of 500)

MYR1.406

Units	Per Unit	Per Bag*
500 - 2000	MYR1.406	MYR703.00
2500 +	MYR1.265	MYR632.50
*price indicative

RS Stock No.:: 135-5052
Mfr. Part No.:: 86561-6
Manufacturer:: TE Connectivity

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

Pin Crimp Contact

A range of AMPMODU Mod II Male pin Crimps for use with housings, see stock number 509-2082 typical, which mate with female contacts in PCB or Cable Mount Receptacles.

Male Crimp contacts, plated on nickel base, 22-26awg (0.13-0.32 mm²):
509-2183 : 0.4μm Gold plated on contact area, Gold Flash on remainder, loose.
668-9416 : 0.4μm Gold plated on contact area, Gold Flash on remainder, strip.
668-9410 : Tin plated all over, strip.
668-9429 : Tin plated all over, loose.

See stock no 509-2206 for a suitable crimping tool

2.54mm Tyco AMPMODU™ Range – MOD 2

A range of fully intermateable products on a 2.54mm (0.1in) centreline for wire to board and wire to wire applications.

Specifications

Attribute	Value
Gender	Male
For Use With	FFC Connector Housing
Series	FFC
Minimum Wire Size mm²	0.1mm²
Termination Method	Crimp
Maximum Wire Size mm²	0.4mm²
Minimum Wire Size AWG	26AWG
Contact Plating	Gold
Maximum Wire Size AWG	22AWG
Contact Material	Phosphor Bronze
Maximum Contact Resistance	25mΩ
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+105°C
