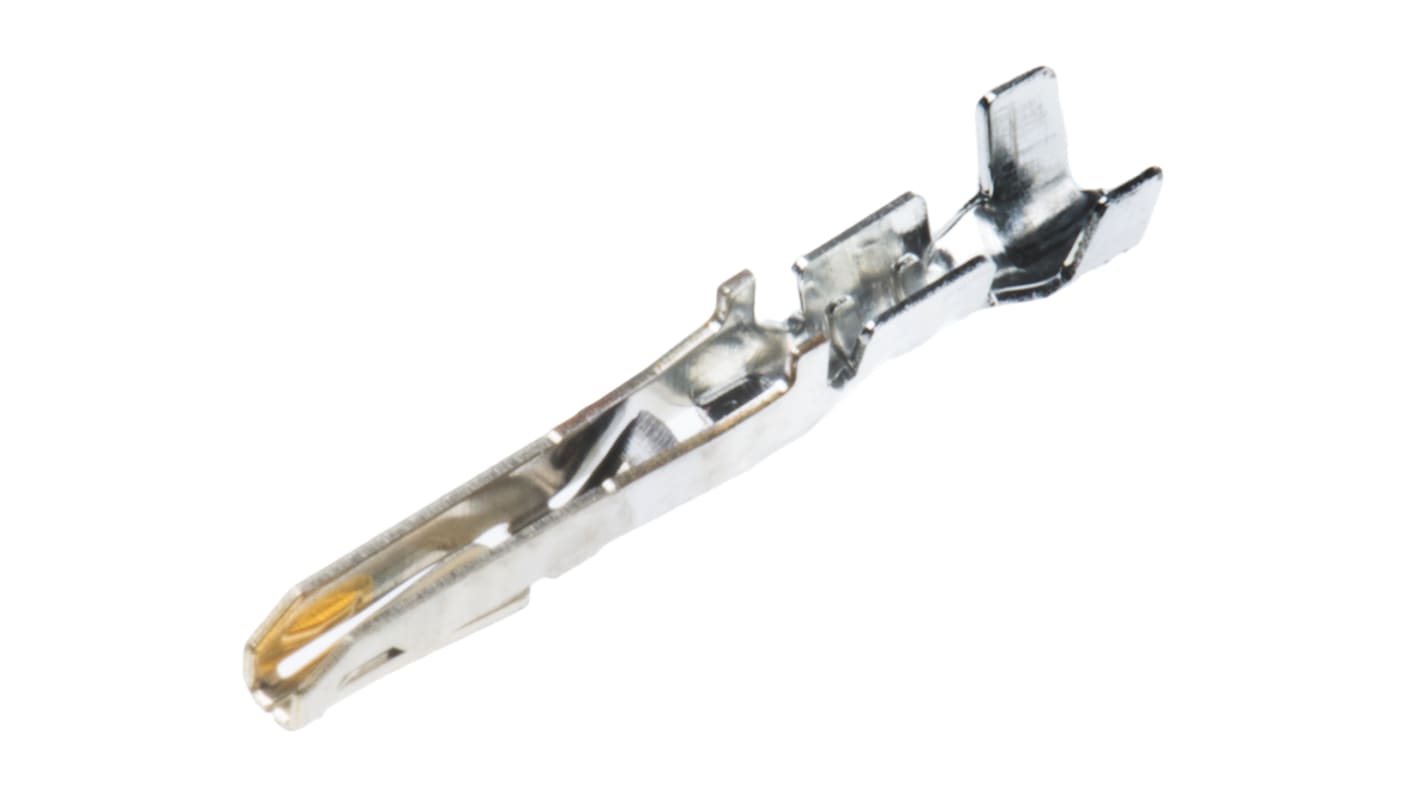

105300-1200 Molex Nano-Fit Female Crimp Terminal Contact 24AWG

  • RS Stock No. 122-4835
  • Mfr. Part No. 105300-1200
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Molex 2.5 mm Nano-Fit Crimp Receptacle Terminals

Nano-Fit crimp receptacle terminals for use in the Nano-Fit 2.5 mm crimp receptacle housings. These crimp terminals have an interface with 4 points of contact that offer redundant, secondary current paths. When one part of the contact becomes degraded the other points of contact continue to carry the load. This feature enables increased current carrying capability, increased reliability and long-term performance. These Nano-Fit crimp receptacle terminals feature retention tangs and contact ribs to help maintain a stable contact. The ultra-low mating force of these Nano-Fit crimp terminals helps reduce operator fatigue

Features and Benefits

Multiple points of contact for improved reliability
Retention tangs and contact ribs for stable contact
Ultra-low mating force reduces fatigue

Applications

These Nano-Fit crimp terminals are for use in 105307 and 105308 series Nano-Fit 2.5 mm crimp receptacle housings.

Molex 2.5mm Nano-Fit Wire to Board Connector System

Specifications
Attribute Value
Gender Female
For Use With Nano-Fit Connector Housing
Series Nano-Fit
Minimum Wire Size mm² 0.1mm²
Maximum Wire Size mm² 0.2mm²
Termination Method Crimp
Minimum Wire Size AWG 26AWG
Contact Plating Gold
Contact Material Copper Alloy
Maximum Wire Size AWG 24AWG
Series Number 105300
Temporarily out of stock - back order for despatch 28/10/2020, delivery within 4 working days from despatch date
Price Each (On a Reel of 15000)
MYR 0.584
units
Per unit
Per Reel*
15000 - 30000
MYR0.584
MYR8,760.00
45000 +
MYR0.514
MYR7,710.00
*price indicative
