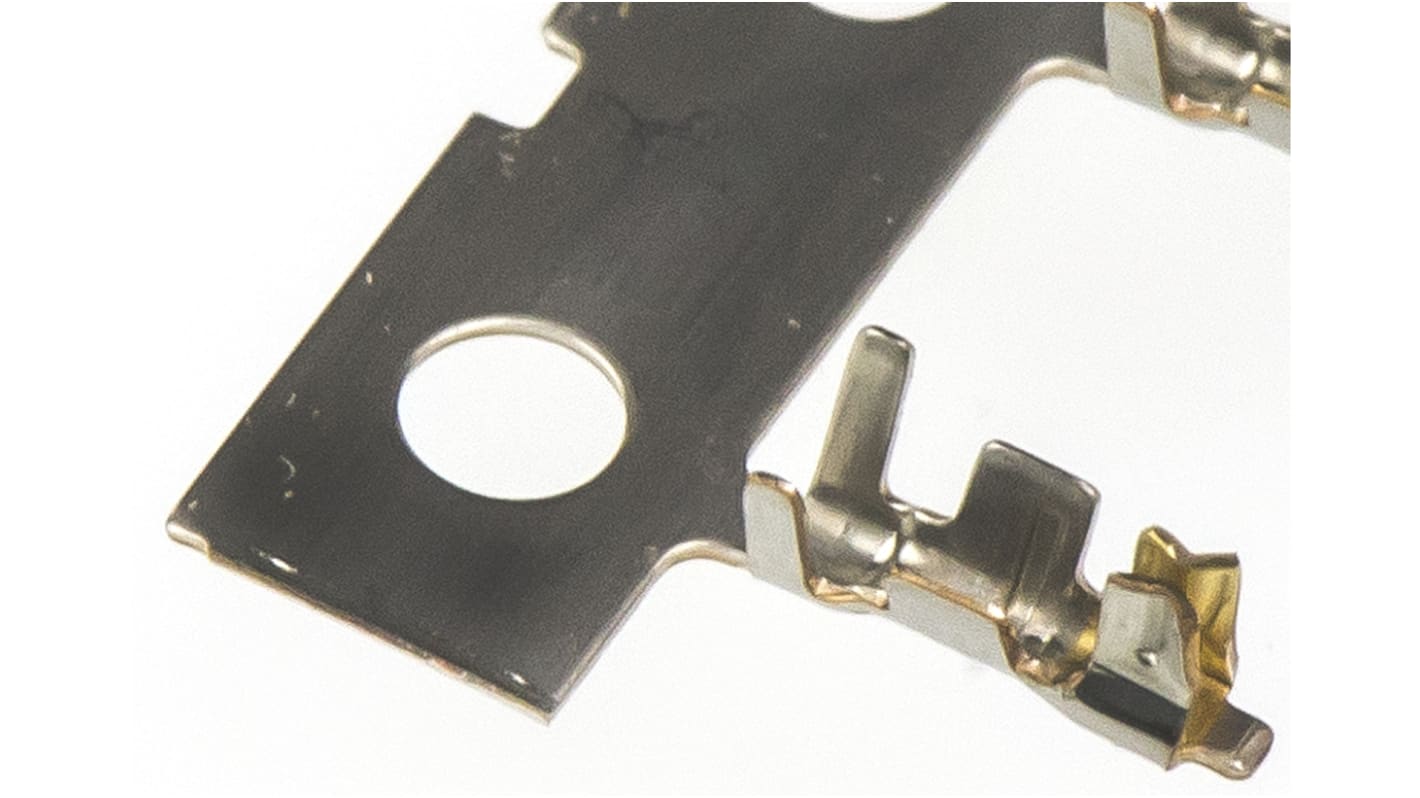

Hirose, DF13 Female Crimp Terminal Contact 26AWG DF13-2630SCFA

  • RS Stock No. 106-6300
  • Mfr. Part No. DF13-2630SCFA
  • Manufacturer Hirose
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Hirose DF13 Series Crimp Receptacle Contacts

A range of crimp receptacle contacts for use with the DF13 series 1.25 mm crimp connector housings. These crimp contacts are available in a range of wire sizes from 32 to 26 AWG and with gold or tin plating.

1.25mm Wire to Board - Hirose DF13

Specifications
Attribute Value
Gender Female
For Use With DF13 Connector Housing
Series DF13
Termination Method Crimp
Maximum Wire Size mm² 0.12mm²
Minimum Wire Size AWG 30AWG
Contact Plating Gold
Contact Material Copper Alloy
Maximum Wire Size AWG 26AWG
Maximum Contact Resistance 30mΩ
Minimum Operating Temperature -35°C
Maximum Operating Temperature +85°C
10000 In Global stock for delivery within 4 - 6 working days
Price Each (On a Reel of 10000)
Was MYR0.217
MYR 0.17
units
Per unit
Per Reel*
10000 +
MYR0.17
MYR1,700.00
*price indicative
