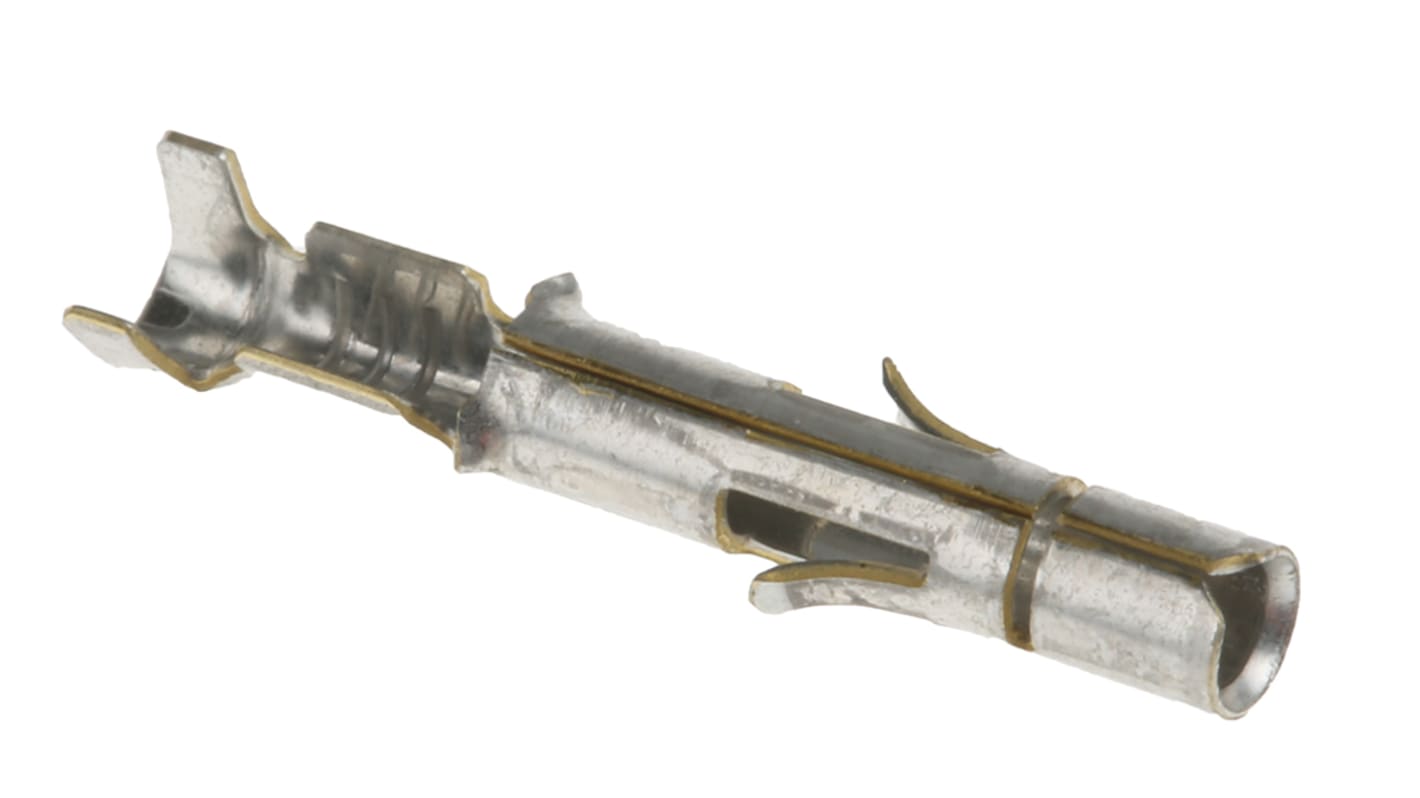

926895-1 TE Connectivity Universal MATE-N-LOK Female Crimp Terminal Contact 18AWG

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

TE Connectivity Universal MATE-N-LOK Contacts

Universal Mate-N-Lok Contacts for power coupling and power to board connectors feature established reliability and ruggedness for many industrial applications.
For MATE-N-LOK Plug Housings see stock number 680-0890 typical.
For MATE-N-LOK Receptacle Housings see stock number 115-1761 typical.

Features and Benefits

Positive crimp & poke assembly
For tooling see stock no. 849-114 and die sets see for instance stock no. 849-136

Applications

• Consumer electronics,
• HVAC,
• Commercial,
• Power Supplies.

For MATE-N-LOK Plug Housings see stock number 680-0890
For MATE-N-LOK Receptacle Housings see stock number 115-1761
Positive crimp & poke assembly
For tooling see stock no. 849-114 and die sets see for instance stock no. 849-136

Approvals

UL, CSA

TE Connectivity Universal MATE-N-LOK™ Range

Specifications
Attribute Value
Gender Female
For Use With Universal MATE-N-LOK Connector Housing
Series Universal MATE-N-LOK
Minimum Wire Size mm² 0.2mm²
Termination Method Crimp
Maximum Wire Size mm² 0.8mm²
Contact Plating Tin
Minimum Wire Size AWG 24AWG
Contact Material Brass
Maximum Wire Size AWG 18AWG
1700 Within 2 working day(s)
27300 Within 4 working day(s) (Global stock)
Price Each (In a Pack of 100)
MYR 0.664
units
Per unit
Per Pack*
100 - 900
MYR0.664
MYR66.40
1000 - 2900
MYR0.474
MYR47.40
3000 - 7400
MYR0.434
MYR43.40
7500 - 14900
MYR0.412
MYR41.20
15000 +
MYR0.392
MYR39.20
*price indicative
