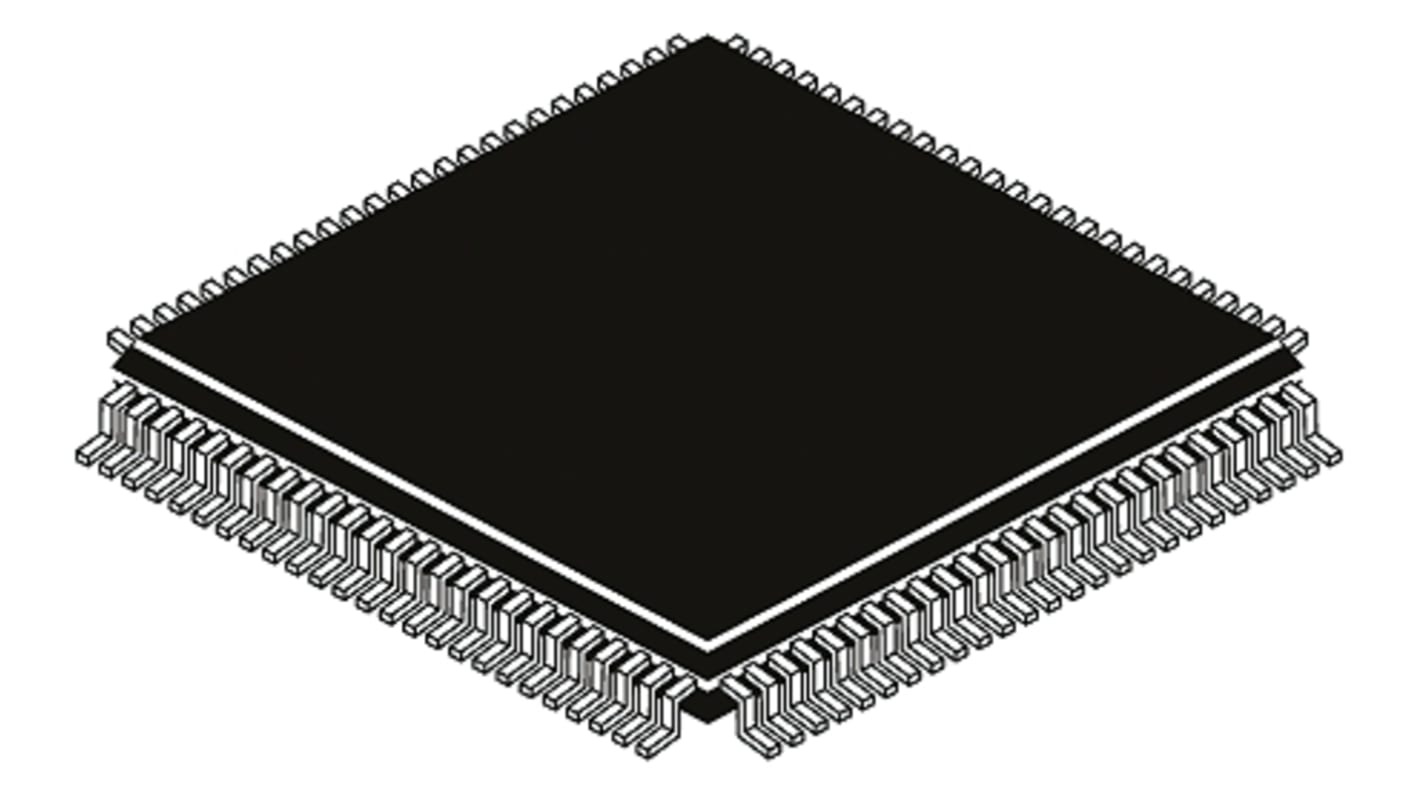

Altera 5M240ZT100C4N, CPLD MAX V Flash 192 Cells, 79 I/O, 240 Labs, 7.9ns, ISP, 100-Pin TQFP
- RS Stock No.:
- 830-3644
- Mfr. Part No.:
- 5M240ZT100C4N
- Manufacturer:
- Altera
67 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR66.46
| Units | Per Unit |
| 1 + | MYR66.46 |
- RS Stock No.:
- 830-3644
- Mfr. Part No.:
- 5M240ZT100C4N
- Manufacturer:
- Altera
Technical data sheets
Legislation and Compliance
Product Details
MAX V device CPLD, Altera
Low-power, and non-volatile CPLD architecture
Instant-on (0.5ms or less) configuration time
Standby current as low as 25μA and fast power-down/reset operation
Fast propagation delay and clock-to-output times
Internal oscillator
Instant-on (0.5ms or less) configuration time
Standby current as low as 25μA and fast power-down/reset operation
Fast propagation delay and clock-to-output times
Internal oscillator
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Family Name | MAX V |
| Number of Macro Cells | 192 |
| Number of User I/Os | 79 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 240 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | 0 °C |
| Pin Count | 100 |
| Propagation Delay | 7.9ns |
| Individual Output Enable Control | Yes |
| Dimensions | 16 x 16mm |
| Maximum Operating Supply Voltage | 1.89 V |
| Length | 16mm |
| Propagation Delay Test Condition | 10pF |
| Minimum Operating Supply Voltage | 1.71 V |
| Width | 16mm |
| Re-programmability Support | Yes |
