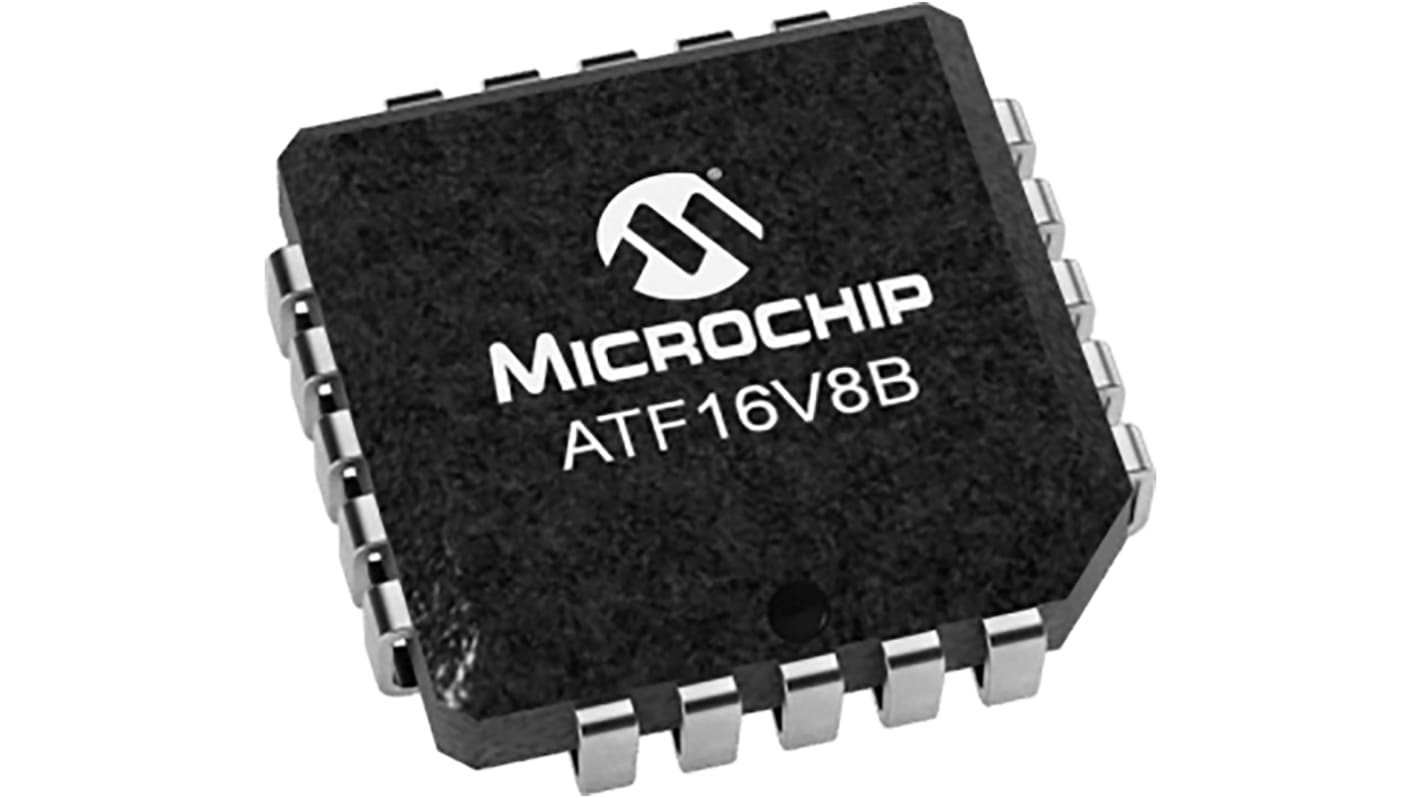

Microchip ATF16V8B-10JU, CPLD ATF16V8B Flash 8 Cells, 18 I/O, 8 Labs, 10ns, ISP, 20-Pin PLCC
- RS Stock No.:
- 177-1687
- Mfr. Part No.:
- ATF16V8B-10JU
- Manufacturer:
- Microchip
320 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR9.319
| Units | Per Unit | Per Pack* |
| 10 + | MYR9.319 | MYR93.19 |
| *price indicative | ||
- RS Stock No.:
- 177-1687
- Mfr. Part No.:
- ATF16V8B-10JU
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
The Atmel ATF16V8B(QL) is a high-performance CMOS Electrically-Erasable Programmable Logic Device (EE PLD) that utilizes the Atmel proven electrically-erasable Flash memory technology. All speed ranges are specified over the full 5.0V 10% range for industrial temperature range.The ATF16V8BQL provides edge-sensing low-power PLD solution with low standby power consumption (5mA typical). The ATF16V8BQL powers down automatically to the low-power mode through the Input Transition Detection (ITD) circuitry when the device is idle.
Features:
Industry-standard Architecture
Emulates Many 20-pin PALs®
Low-cost Easy-to-use Software Tools
High-speed Electrically-erasable Programmable Logic Devices
10ns Maximum Pin-to-pin Delay
Automatic 5mA Standby for ATF16V8BQL
CMOS and TTL Compatible Inputs and Outputs
Input and I/O Pull-up Resistors
Advanced Flash Technology
Reprogrammable
100% Tested
High-reliability CMOS Process
20 Year Data Retention
100 Erase/Write Cycles
2,000V ESD Protection
Industry-standard Architecture
Emulates Many 20-pin PALs®
Low-cost Easy-to-use Software Tools
High-speed Electrically-erasable Programmable Logic Devices
10ns Maximum Pin-to-pin Delay
Automatic 5mA Standby for ATF16V8BQL
CMOS and TTL Compatible Inputs and Outputs
Input and I/O Pull-up Resistors
Advanced Flash Technology
Reprogrammable
100% Tested
High-reliability CMOS Process
20 Year Data Retention
100 Erase/Write Cycles
2,000V ESD Protection
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Family Name | ATF16V8B |
| Number of Macro Cells | 8 |
| Number of User I/Os | 18 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 8 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 20 |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay | 10ns |
| Individual Output Enable Control | Yes |
| Dimensions | 9.04 x 9.04 x 4.06mm |
| Height | 4.06mm |
| Length | 9.04mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Supply Voltage | 4.5 V |
| Width | 9.04mm |
| Re-programmability Support | Yes |
