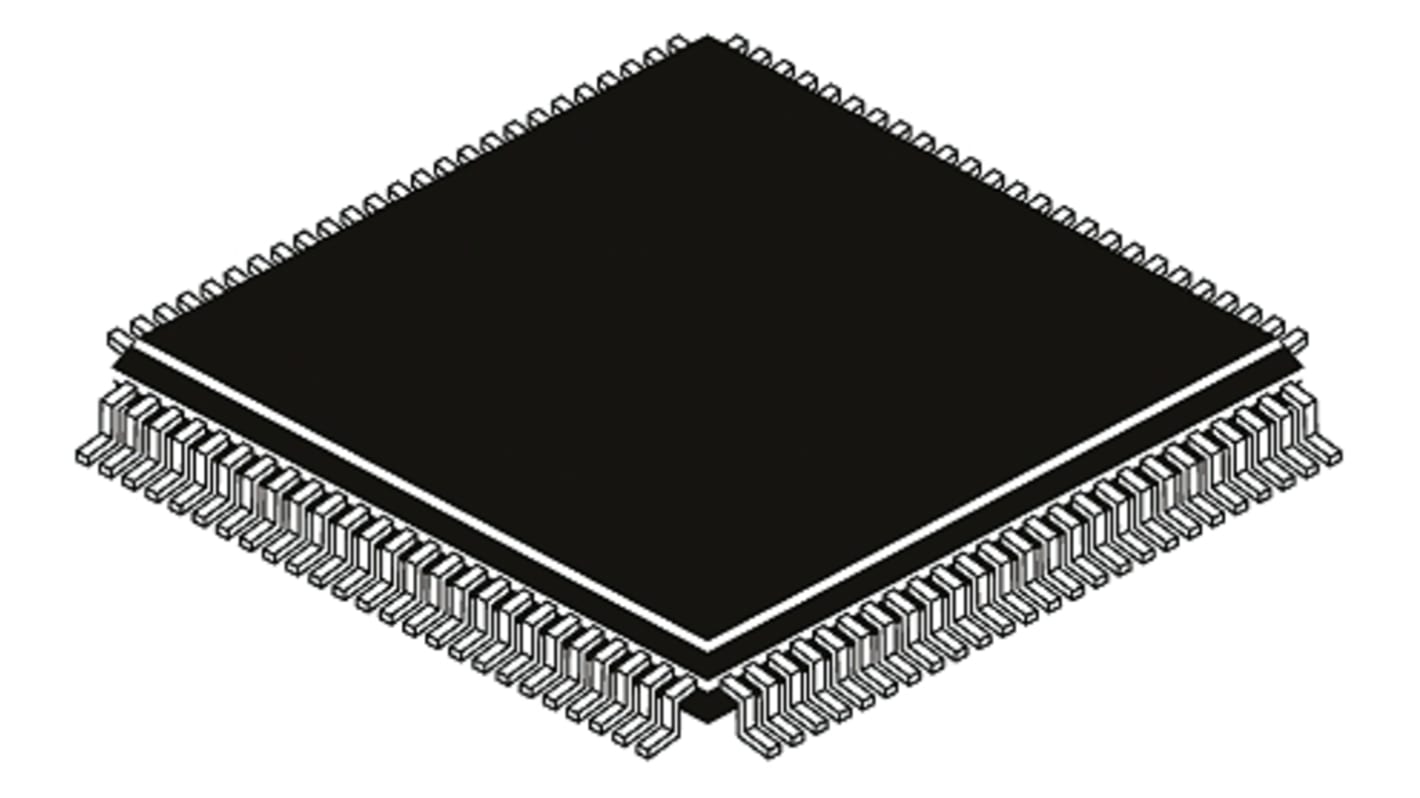

Altera 5M80ZT100I5N, CPLD MAX V Flash 64 Cells, 79 I/O, 80 Labs, 14ns, ISP, 100-Pin TQFP
- RS Stock No.:
- 170-3008
- Mfr. Part No.:
- 5M80ZT100I5N
- Manufacturer:
- Altera
Temporarily out of stock - back order for despatch 14/11/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Tray of 90)
MYR24.644
| Units | Per Unit | Per Tray* |
| 90 + | MYR24.644 | MYR2,217.96 |
| *price indicative | ||
- RS Stock No.:
- 170-3008
- Mfr. Part No.:
- 5M80ZT100I5N
- Manufacturer:
- Altera
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
MAX V device CPLD, Altera
Low-power, and non-volatile CPLD architecture
Instant-on (0.5ms or less) configuration time
Standby current as low as 25μA and fast power-down/reset operation
Fast propagation delay and clock-to-output times
Internal oscillator
Instant-on (0.5ms or less) configuration time
Standby current as low as 25μA and fast power-down/reset operation
Fast propagation delay and clock-to-output times
Internal oscillator
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Family Name | MAX V |
| Number of Macro Cells | 64 |
| Number of User I/Os | 79 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 80 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 100 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +100 °C |
| Propagation Delay | 14ns |
| Individual Output Enable Control | Yes |
| Dimensions | 16 x 16mm |
| Length | 16mm |
| Maximum Operating Supply Voltage | 1.89 V |
| Propagation Delay Test Condition | 10pF |
| Minimum Operating Supply Voltage | 1.71 V |
| Re-programmability Support | Yes |
| Width | 16mm |
