Huco Beam Coupling, 19mm Outside Diameter, 8mm Bore, 22.9mm Length Coupler
- RS Stock No.:
- 171-6694
- Mfr. Part No.:
- 721.19.2828
- Manufacturer:
- Huco
12 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR367.59
| Units | Per Unit |
| 1 + | MYR367.59 |
- RS Stock No.:
- 171-6694
- Mfr. Part No.:
- 721.19.2828
- Manufacturer:
- Huco
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

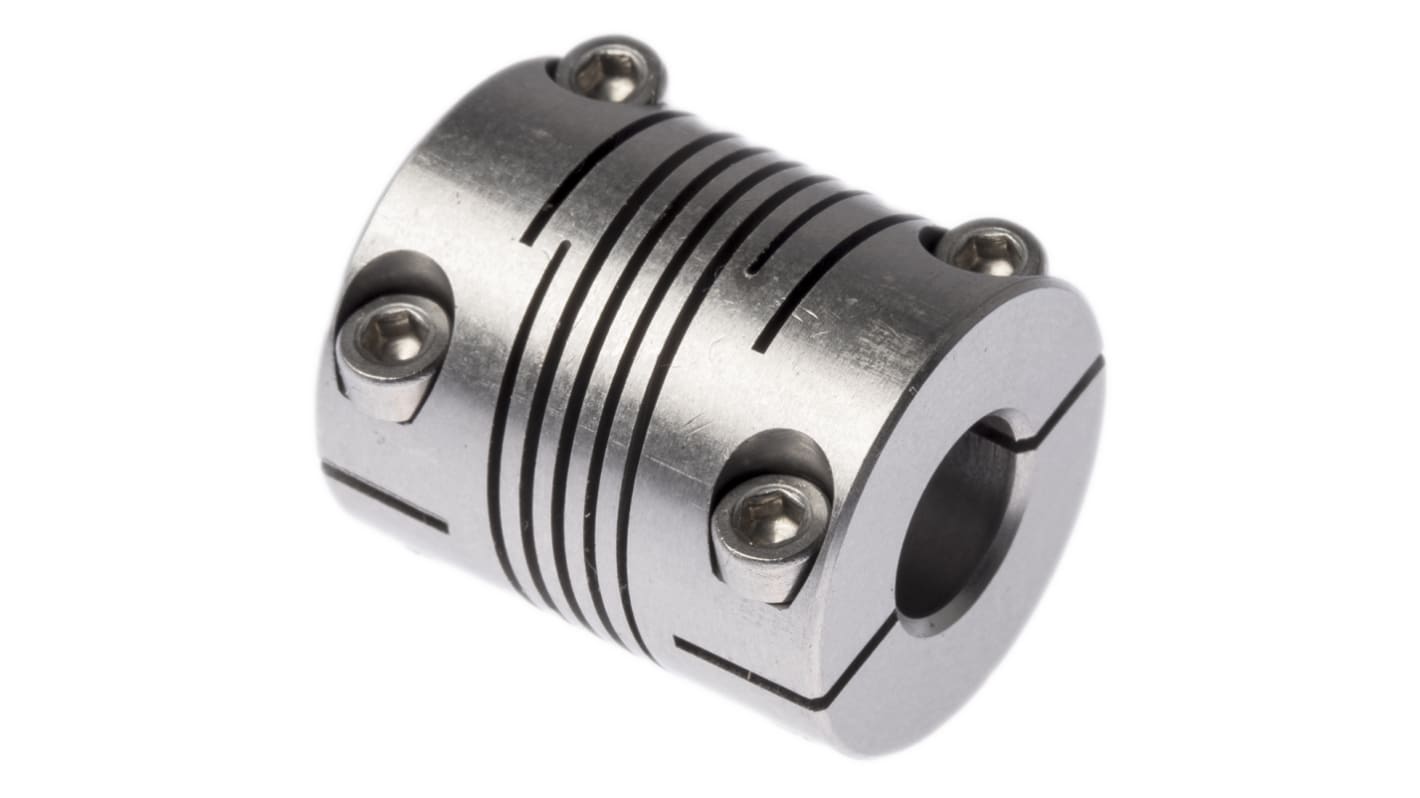

Huco Coupling
The Huco coupling has a 19mm OD. This is multi-beam type 3, stainless steel clamp 8mm x 8mm coupling. This is readily accommodated by any combination of axial motion, angular and parallel misalignment. Its 3 start helical cut design provides higher torque capability and reduced wind-up as compared to single beam versions.
Features and Benefits
• Torsionally rigid design
• Zero backlash
• No moving parts
• Precision bellows coupling with excellent kinematic properties
• Low inertia coupling
• Electrical isolation
• Cost efficient
• Zero backlash
• No moving parts
• Precision bellows coupling with excellent kinematic properties
• Low inertia coupling
• Electrical isolation
• Cost efficient
Applications
• High-end servo drives
• Pulse generators
• Scanners
• Positioning slides
• Metering valves
• Pulse generators
• Scanners
• Positioning slides
• Metering valves
Specifications
Attribute | Value |
|---|---|
| Bore | 8mm |
| Coupling Types | Beam Coupling |
| Outside Diameter | 19mm |
| Length | 22.9mm |
| Torque Rating | 2.7Nm |
| Misalignment - Angular | 5° |
| Misalignment - Parallel | 0.12mm |
