Product Details

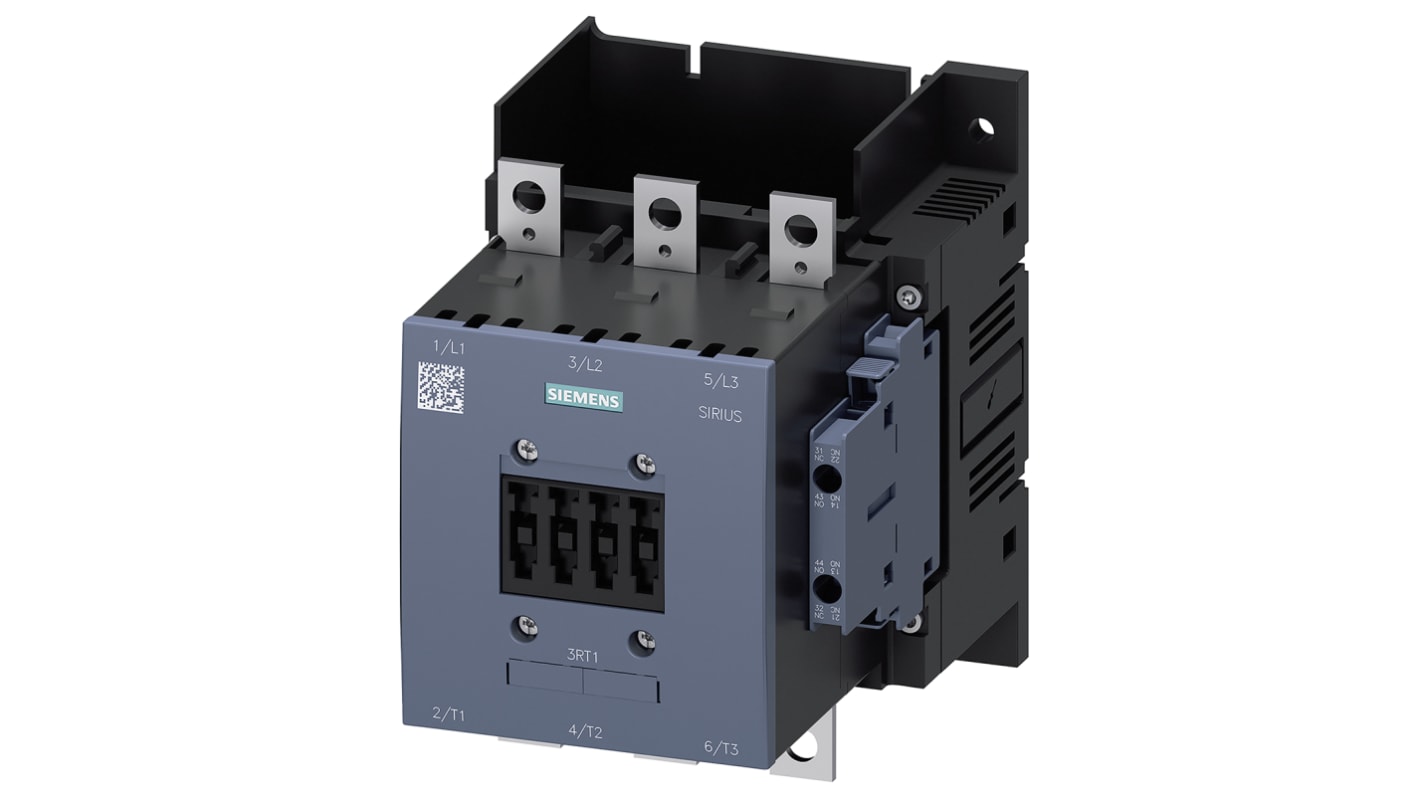

Siemens Contactor, 90kW Power Rating, 185A Contact Current Rating - SIRIUS Classic Series - 3RT1056-6AF36
Choose this contactor from Siemens to safely switch your high-power loads on and off. It has spring-loaded contacts that make or break the power supply to your electrical equipment. As these contacts open and close quickly, you can use this contactor to safely start electric motors that are prone to arc faults. The unit is designed for heavy-duty applications and delivers up to 90kW of power to connected equipment. Thanks to screw terminals, you can connect conductor cables to it with a simple screwdriver, so you don't need complex tools. For safety, it has an integrated varistor for surge protection. You'll find contactors like this one used for motor protection in industrial conveyor systems.
• Broad operating temperature range of -25°C to +60°C for use in demanding conditions
• Mechanical service life of 10,000,000 operating cycles for long-term performance
• Low power loss of 13W per conductor for energy efficiency
• Mechanical service life of 10,000,000 operating cycles for long-term performance
• Low power loss of 13W per conductor for energy efficiency
Is this contactor waterproof?
No, this contactor has no protection against water and must be kept away from moisture and humidity to ensure safe operation.
Siemens Sirius Range Contactor & Control Relays
Specifications
Attribute | Value |
---|---|
Coil Voltage | 110 V ac |
Number of Poles | 3 |
Contact Voltage Rating | 400 V ac |
Contact Current Rating | 185 A |
Power Rating | 90 kW |
Series | 3RT1 |
Range | SIRIUS |
Normal State Configuration | 3NO |
Number Of Auxiliary Contacts | 4 |
Auxiliary Contact Configuration | 2NO + 2NC |
Terminal Type | Screw |
Length | 172mm |
Width | 120mm |
Depth | 170mm |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -25°C |
