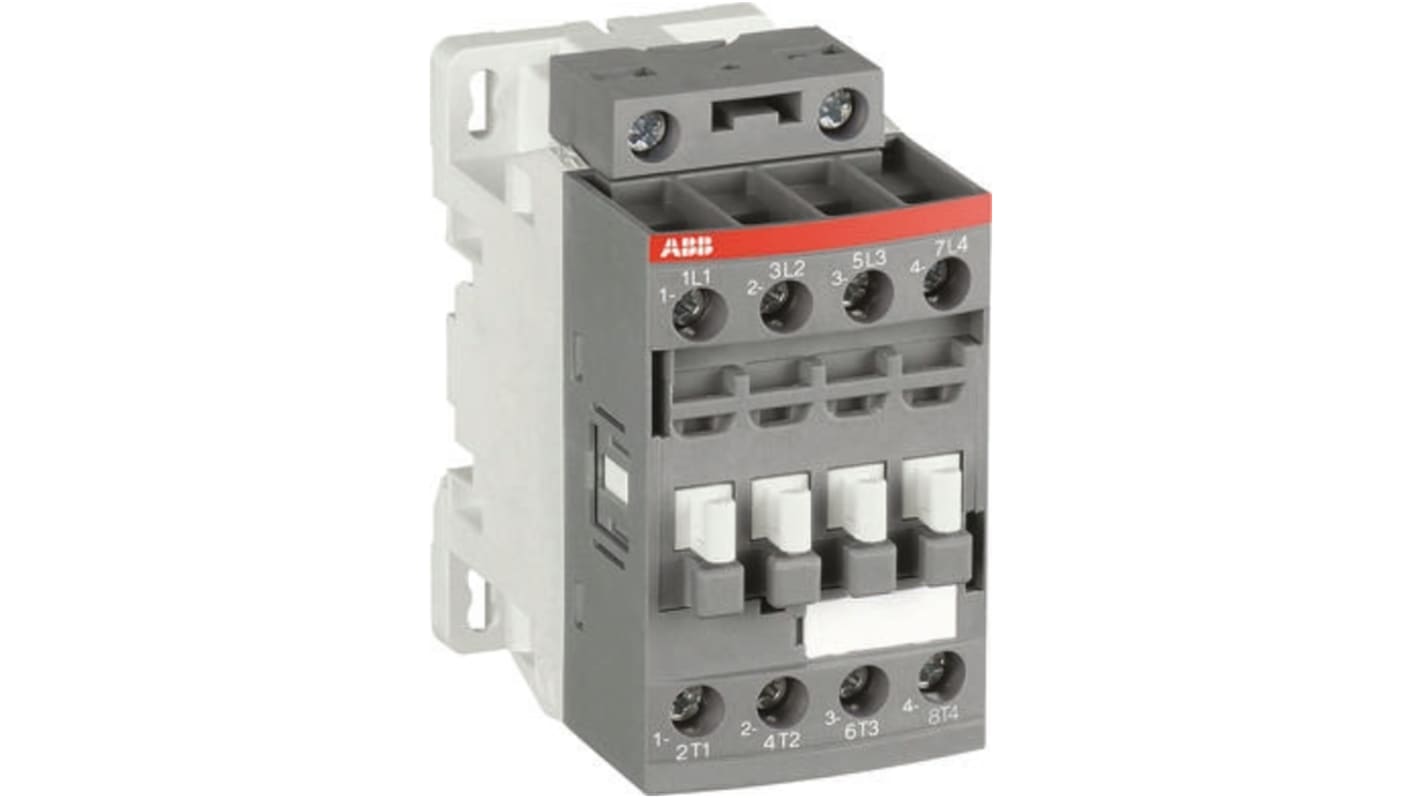

ABB AF Series Contactor, 110 V ac/dc Coil, 4-Pole, 45 A, 11 kW, 4NO, 690 V ac
- RS Stock No.:
- 764-8895
- Mfr. Part No.:
- 1SBL236201R2200 AF26Z-40-00-22
- Manufacturer:
- ABB
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR644.03
| Units | Per Unit |
| 1 + | MYR644.03 |
- RS Stock No.:
- 764-8895
- Mfr. Part No.:
- 1SBL236201R2200 AF26Z-40-00-22
- Manufacturer:
- ABB
Technical data sheets
Legislation and Compliance
Product Details
AF Range Contactors, 4 Pole
A range of ABB 4 Pole contactors used for controlling power circuits up to 690 V ac and 440 V dc.
Built-in surge protection and do not require additional surge suppressors
Manage large control voltage variations
One coil can be used for different control voltages, and used worldwide without any coil change
Manage large control voltage variations
One coil can be used for different control voltages, and used worldwide without any coil change
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 110 V ac/dc |
| Number of Poles | 4 |
| Contact Voltage Rating | 690 V ac |
| Contact Current Rating | 45 A |
| Range | AF26Z-40-00-22 |
| Power Rating | 11 kW |
| Series | AF |
| Normal State Configuration | 4NO |
| Number Of Auxiliary Contacts | 0 |
| Terminal Type | Screw |
| Length | 86mm |
| Width | 45mm |
| Depth | 101mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
