Schneider Electric LC1D Series Contactor, 24 V dc Coil, 4-Pole, 25 A, 4NO, 690 V ac/dc
- RS Stock No.:
- 744-7535
- Mfr. Part No.:
- LC1DT25BL
- Manufacturer:
- Schneider Electric
11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
14 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR386.27
| Units | Per Unit |
| 1 + | MYR386.27 |
- RS Stock No.:
- 744-7535
- Mfr. Part No.:
- LC1DT25BL
- Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details

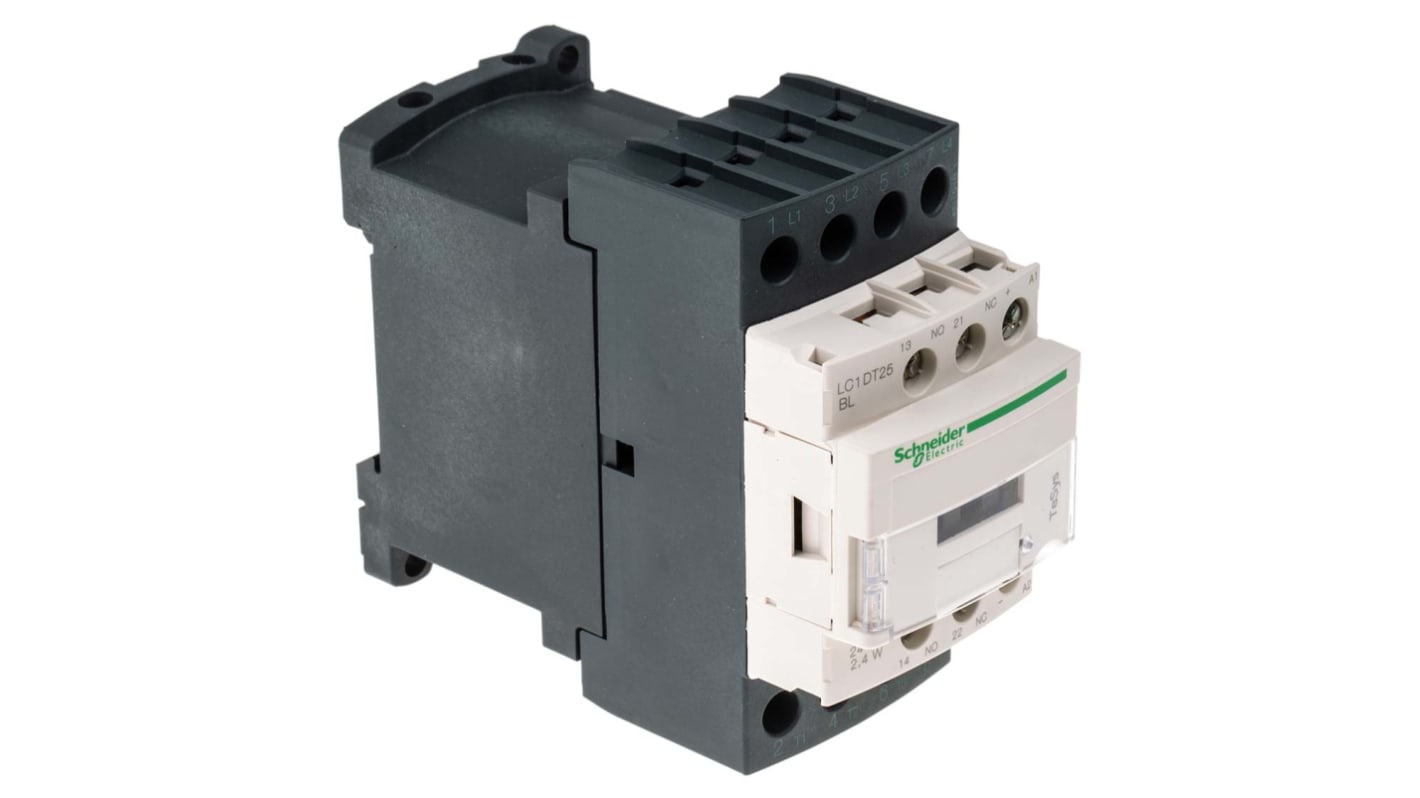

Schneider Electric LC1DT25BL Contactor
The Schneider Electric LC1DT25BL model is a 4 pole contactor featuring a 24 V dc operating coil, with an AC-3 full load current rating of 25 A
Features & Benefits
• Bidirectional, peak-limiting diode surge suppressor to limit transient voltage while maintaining standard coil opening time
• Fast opening operating time of 20ms to 30ms (milliseconds), for almost instant reaction and improved efficiency
• Easy-to-handle size of 99 (depth) x 85 (length) x 45mm (width)
• Fast opening operating time of 20ms to 30ms (milliseconds), for almost instant reaction and improved efficiency
• Easy-to-handle size of 99 (depth) x 85 (length) x 45mm (width)
Applications
• Heating systems and electrical furnaces
• Security lighting systems
• Small starter motors
• Security lighting systems
• Small starter motors
What is TeSys?
The Schneider Electric range of TeSys motor-control solutions includes circuit breakers, contactors, relays and switches that provide innovative electrical load management solutions to help you streamline your workflow. The range combines the simplicity of standard circuit breakers with the advanced protection of intelligent digital solutions to achieve reliability and compatibility in line with international standards.
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V dc |
| Number of Poles | 4 |
| Contact Voltage Rating | 690 V ac/dc |
| Contact Current Rating | 25 A |
| Series | LC1D |
| Range | TeSys D |
| Function | Load Control |
| Normal State Configuration | 4NO |
| Number Of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1NO |
| Terminal Type | Screw |
| Width | 45mm |
| Length | 85mm |
| Depth | 99mm |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
