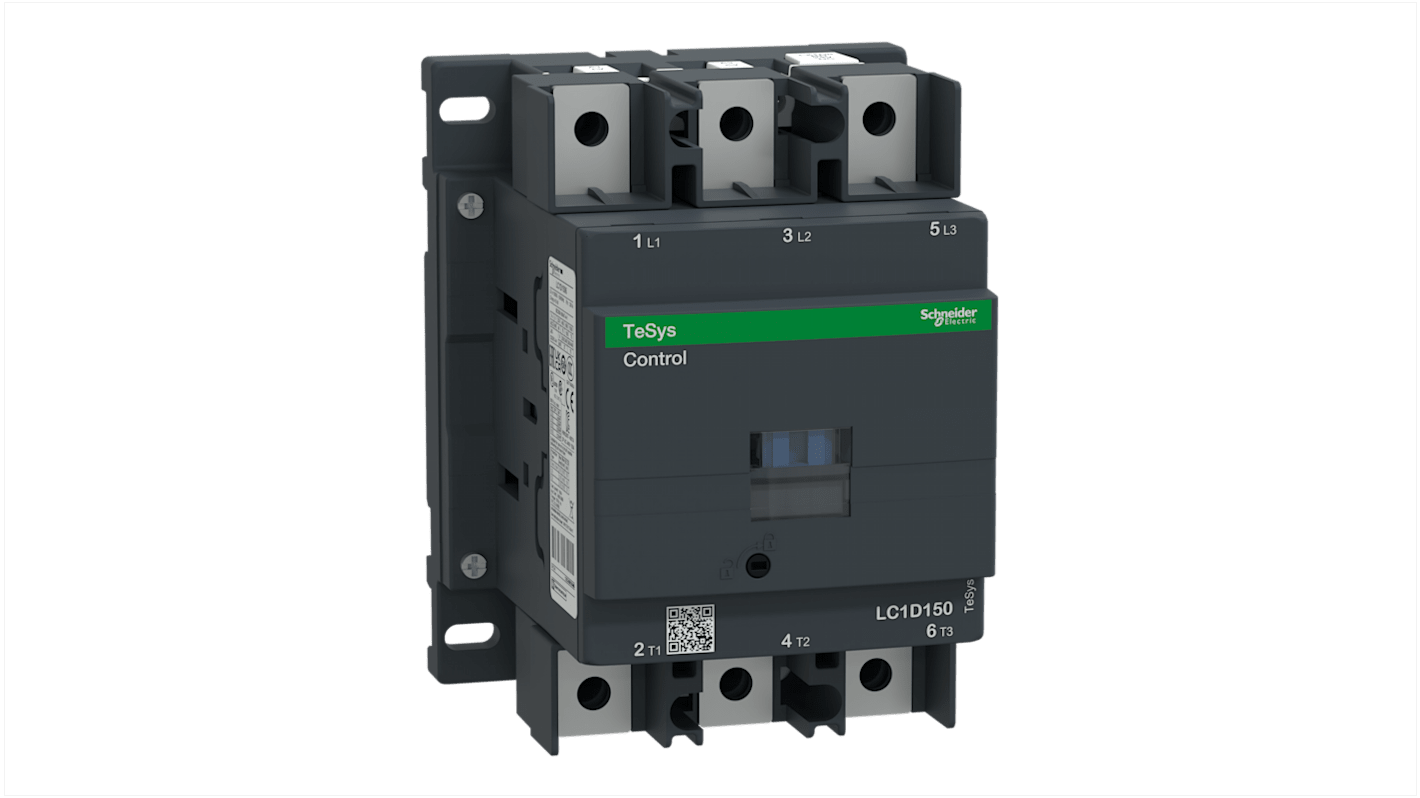

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 150 A, 110 V dc Coil

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

3 Pole Contactors, DC Controlled

Built-in coil suppression
3 N/O poles
Auxiliary contact configuration one N/O, one N/C
Operating time closing 12 to 22 ms
Operating time opening 4 to 19 ms

Note

Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts.

Approvals

UL and CSA

Specifications
Attribute Value
Coil Voltage 110 V dc
Number of Poles 3
Contact Current Rating 150 A
Range TeSys D
Series LC1D
Normal State Configuration 3NO
Auxiliary Contact Configuration 1NO/1NC
Contact Voltage Rating 1 kV ac, 690 V dc
Number Of Auxiliary Contacts 2
Terminal Type Lug Ring Terminal / Bus Bar
Width 120mm
Depth 136mm
Length 158mm
Temporarily out of stock - back order for despatch 14/07/2020, delivery within 4 working days from despatch date
Price Each
MYR 2,936.29
units
Per unit
1 +
MYR2,936.29
