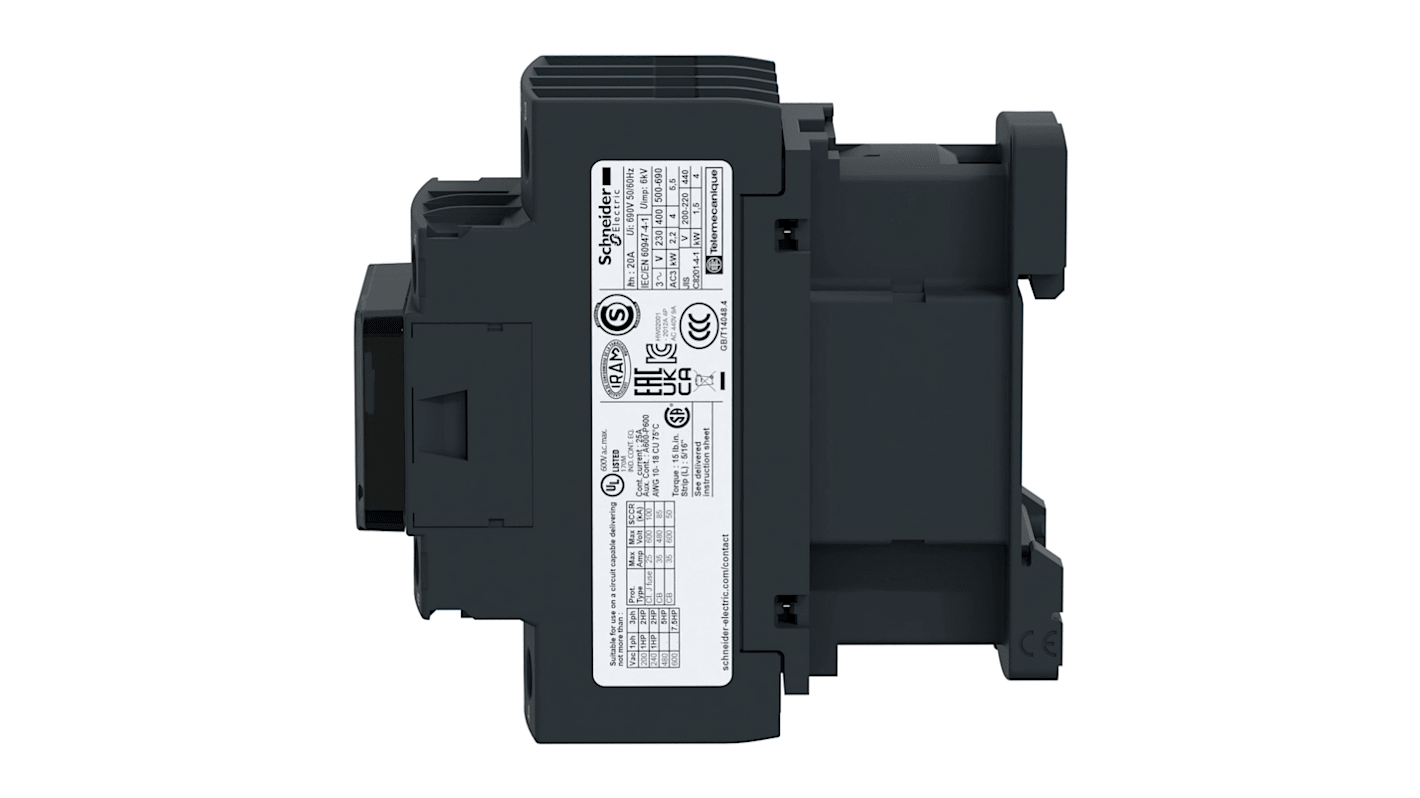

Schneider Electric LC1D Series Contactor, 24 V dc Coil, 4-Pole, 20 A, 2NO + 2NC, 690 V ac/dc

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a highly reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards

Utilisation category AC1
Auxiliary contact configuration one N/O, one N/C
Width of LC1D contactors is 45mm
Closing time of LC1D series is 12-22ms, opening time is 4-19ms
These contactors must not be used with TeSys overload relays, interconnection units or GV2 circuit breakers

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Yes, the TeSys D range uses linear translation movement that provides double breaking of the poles.

The Schneider Electric LC1D098BD model is a 4-pole contactor featuring a utilisation category of AC-1. The control circuit voltage is 24 V DC with 2 NO + 2 NC power pole contact composition. The rated operation current is 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit.
