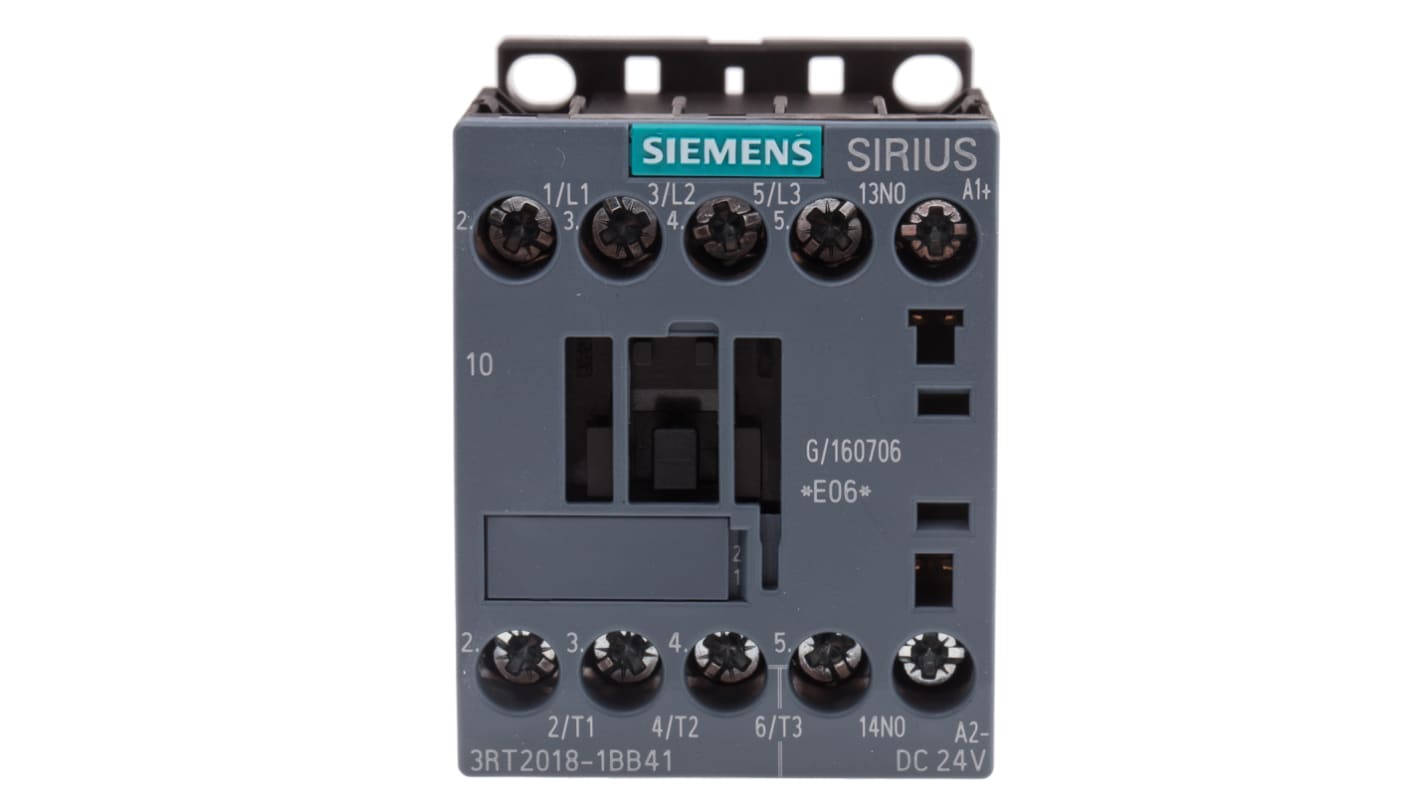

Siemens Sirius Innovation 3RT2 3 Pole Contactor, 3NO, 16 A, 7.5 kW, 24 V dc Coil

  • RS Stock No. 706-1235
  • Mfr. Part No. 3RT2018-1BB41
  • Manufacturer Siemens
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Contactors – 3RT2 Range

The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW

Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2

Note

Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.

Approvals

CE, UL, CSA, CCC

Siemens Sirius Range Contactor & Control Relays

Siemens control gear for feeders up to 5.5kW. The complementary nature of the devices allows fast and simple assembly, for example, of motor starters and reversers. A perfect match between contactors, overloads, circuit breakers and accessories for the same power ratings provides a uniform panel appearance and the standard widths with no side-by-side mounting derating allows for space saving.

Specifications
Attribute Value
Coil Voltage 24 V dc
Number of Poles 3
Contact Current Rating 16 A
Power Rating 7.5 kW
Range SIRIUS Innovation
Series 3RT2
Normal State Configuration 3NO
Contact Voltage Rating 400 V ac
Number Of Auxiliary Contacts 1
Terminal Type Screw
Width 45mm
Depth 73mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +60°C
Length 57.5mm
10 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 273.70
units
Per unit
1 +
MYR273.70
