Schneider Electric Tesys D LC1D 4 Pole Contactor, 4NO, 20 A, 24 V dc Coil

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

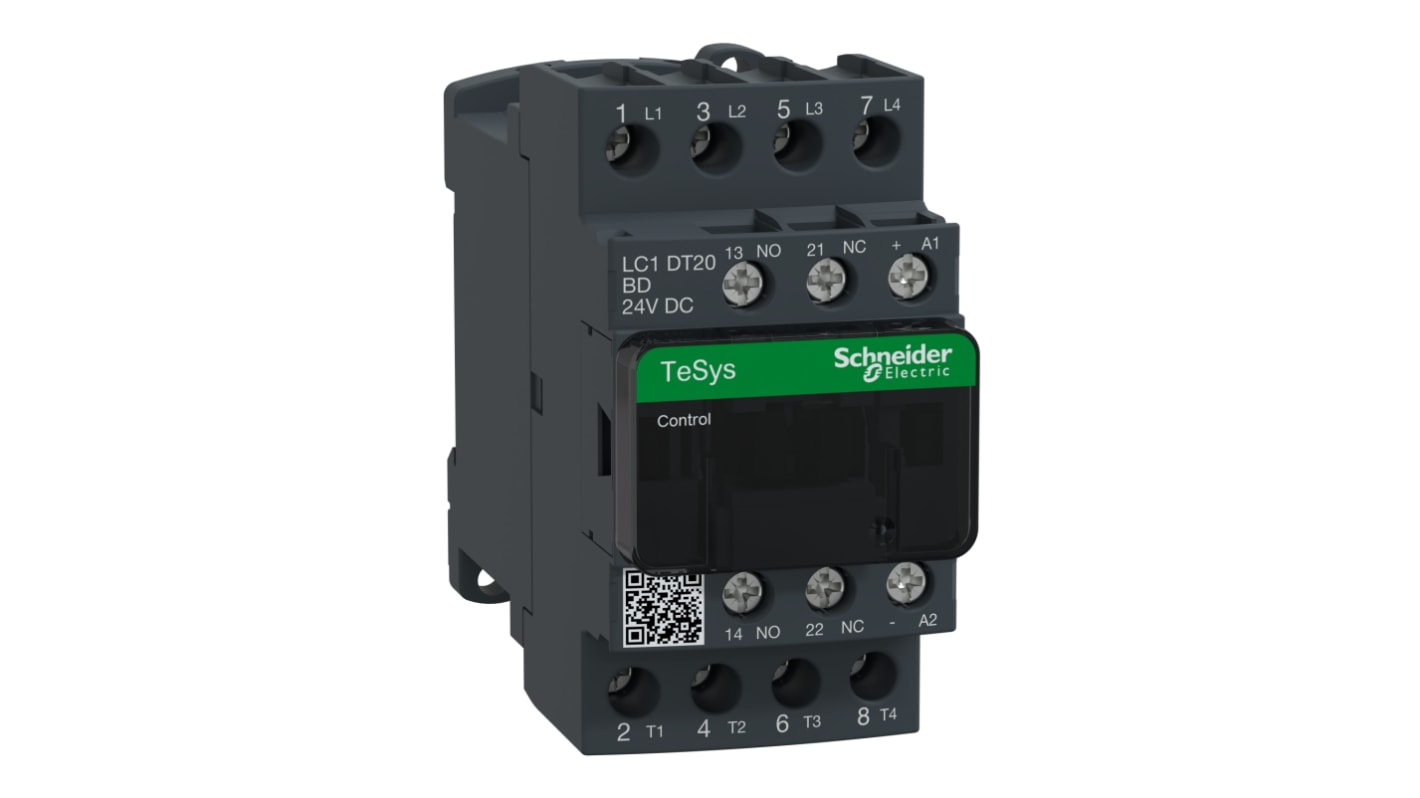

Schneider Electric LC1DT20BD Contactor

The Schneider Electric LC1DT20BD model is a 4 pole contactor featuring a 24 V dc operating coil, with an AC-3 full load current rating of 20 A

Specifications
Attribute Value
Coil Voltage 24 V dc
Number of Poles 4
Contact Current Rating 20 A
Range TeSys D
Series LC1D
Normal State Configuration 4NO
Contact Voltage Rating 690 V ac
Number Of Auxiliary Contacts 2
Terminal Type Screw
Length 85mm
Maximum Operating Temperature +60°C
Depth 90mm
Minimum Operating Temperature -5°C
Width 45mm
129 Within 4 working day(s) (Global stock)
13 Within 4 working day(s) (Global stock)
Price Each
MYR 291.26
units
Per unit
1 +
MYR291.26
