Eaton Contactor, 24 V dc Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 400 V ac
- RS Stock No.:
- 493-0163
- Mfr. Part No.:
- 276845 DILM12-10(24VDC)
- Manufacturer:
- Eaton
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
54 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR301.82
You pay
MYR286.73
| Units | Per Unit |
| 1 + | MYR286.73 |
- RS Stock No.:
- 493-0163
- Mfr. Part No.:
- 276845 DILM12-10(24VDC)
- Manufacturer:
- Eaton
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details

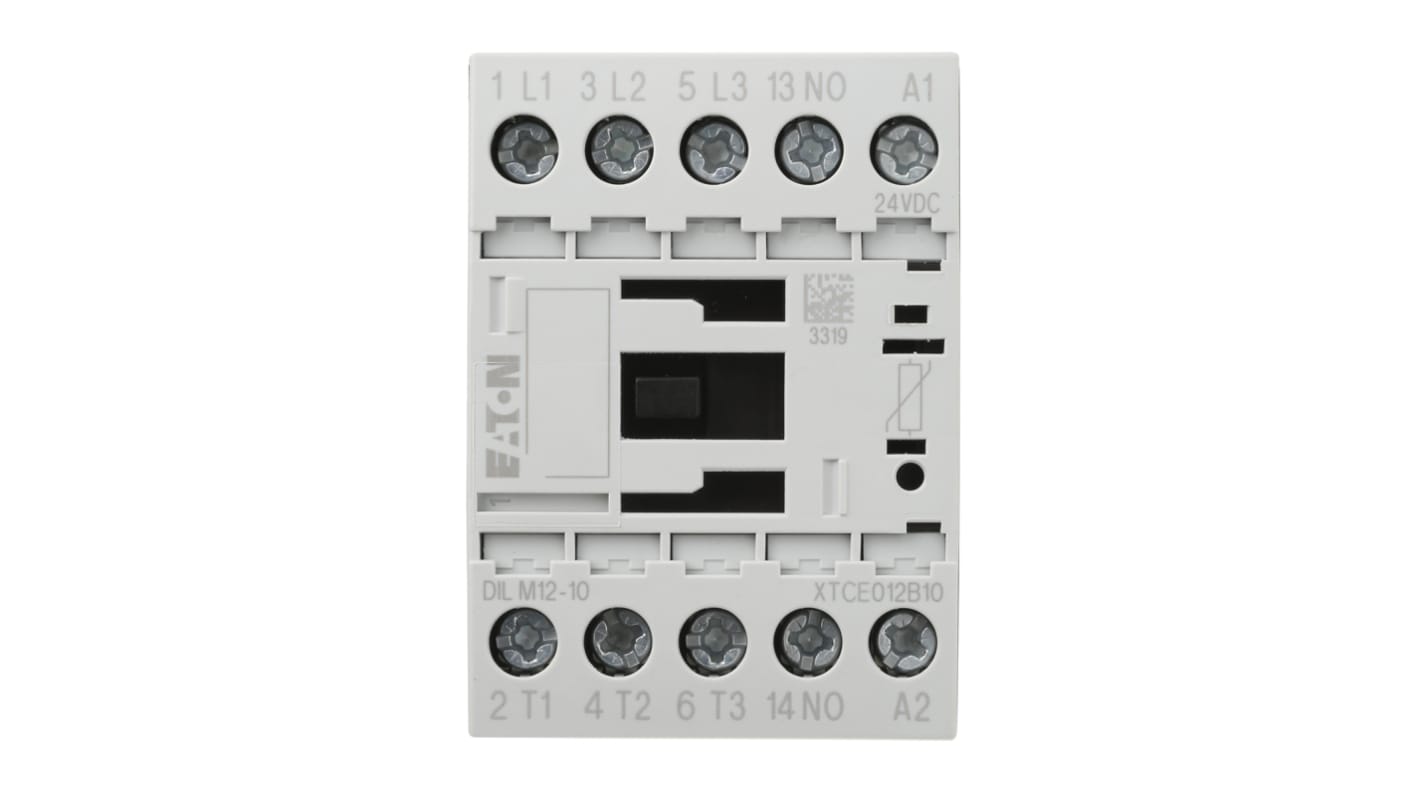

Eaton Contactor, 3 Poles, 12A Contact Current Rating - DILM Series - 276845 DILM12-10(24VDC)
Take power over your electrical application with this contactor from Eaton. It's a popular option for managing AC-4 jogging and the switching of motors in industrial automation systems. As it works seamlessly with IE3 efficiency-class motors, it's a reliable choice for achieving tip-top productivity. It also stands up to constant on-off toggling for up to 9,000 operations per hour, so it won't need to take any breaks. With a 400V AC contact voltage rating, this is an ideal option for high-power tasks. Installation is easily completed using the straightforward screw terminals, so there's no need for specialist tools.
Features & Benefits
Electronic drive removes the need for coupling relays
Coils not replaceable
Coils not replaceable
Is this device protected from debris?
This unit has an IP20 rating, which means it's touch-proof and protected from dust or debris greater than 12mm.
Can I use this contactor in harsh industrial conditions?
Yes. It functions in a broad operating temperature range between -25°C and +40°C, so is suitable for use in demanding environments.
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Voltage Rating | 400 V ac |
| Contact Current Rating | 12 A |
| Series | Eaton Moeller |
| Power Rating | 5.5 kW |
| Range | xStart |
| Normal State Configuration | 3NO |
| Auxiliary Contact Configuration | 1NO |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Length | 68mm |
| Width | 45mm |
| Depth | 117mm |
| Control Voltage | 24 V dc |
| Pole and Throw Configuration | 3P |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +40°C |
| Mounting Style | DIN Rail Mount |
